Pressure ranges from -100K Pa to 1600KPa / -100K Pa to 1000KPa
Available output signals include 4…20mA, 0.5…4.5V

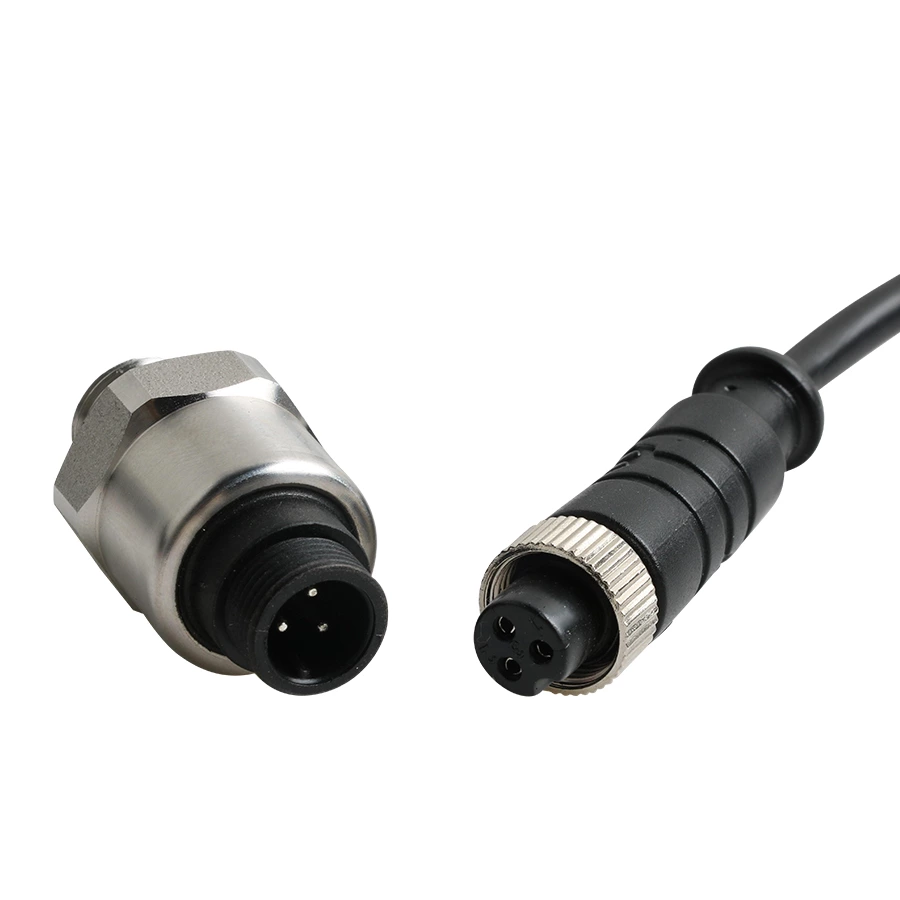

Electrical connections: M12x15-pin, Cable type
Process connections: G¼, R¼, G⅜
Hydraulics and pneumatics
Pumps and compressors
Machine controls
Gauge pressure
| Power supply | 5 or 24V DC |
| Accuracy | ±1.0 % |
| Ambient temperature | -40 °C… +125 °C |
| Process temperature | -20 °C… +120 °C |
| Pressure range | -100KPa…+1600 Kpa / -100KPa…+1000 Kpa |
| Process connection | Threads: G¼, R¼, G⅜ |
| Communication | 4...20 mA / 0.5…4.5V |
| Response time | 10 ms |
| Ingress Protection | IP65 |

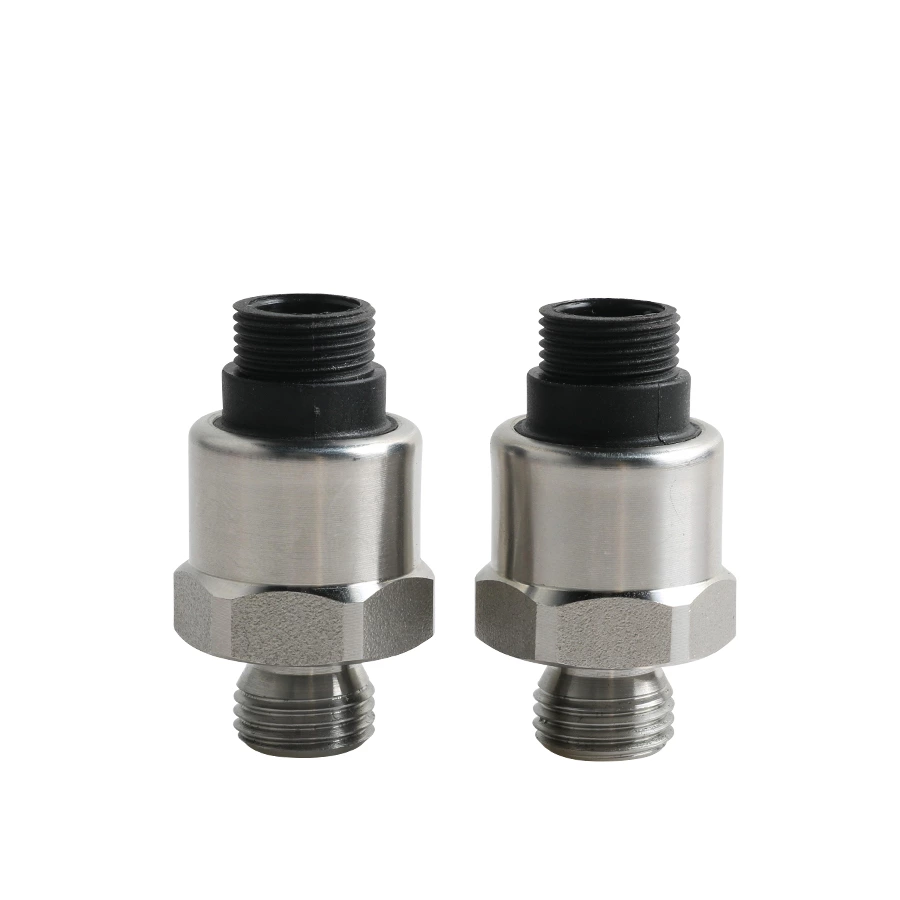

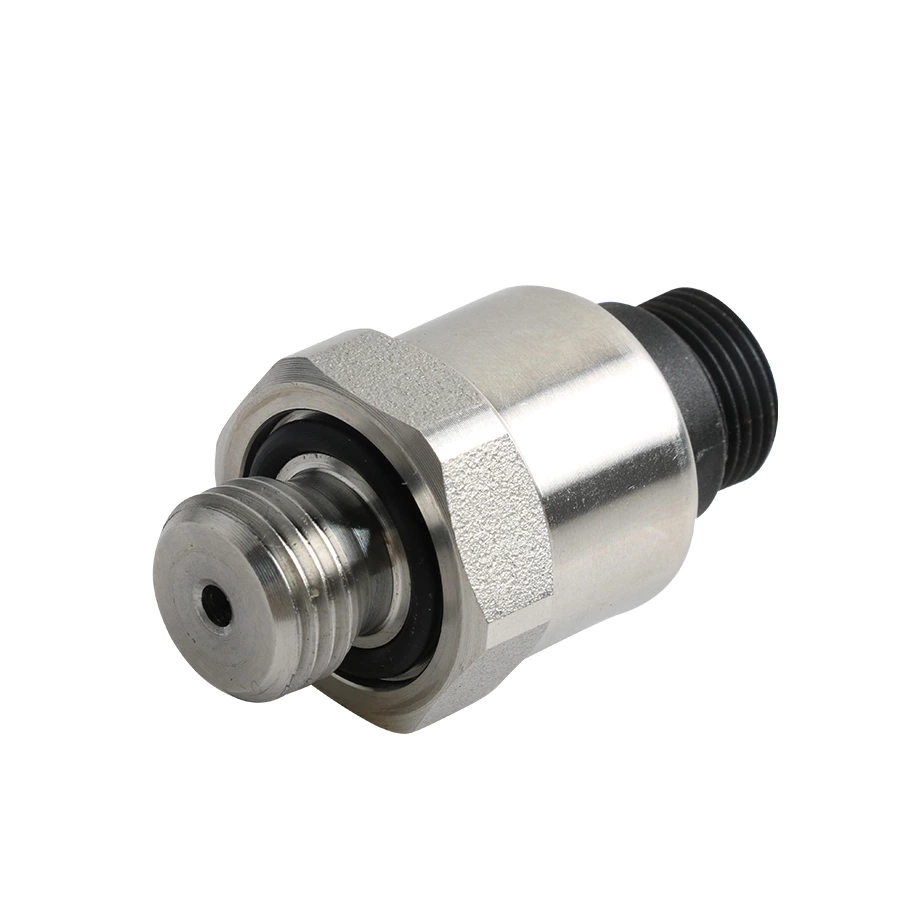

The pressure transmitter is designed to meet the pressure measurement requirements in many industrial and commercial applications.
Is available in a large number of configurations to meet many application requirements. Options include many available process and electrical connections as well as all industry standard pressure ranges and output signals.
Can be private labeled with customer logo and model number if required.
