SUP-PX300 Pressure transmitter with display

Pressure transmitter is a common sensor in industrial. Widely used in automatic control program like Water resources and hydropower, railway, building automation, aerospace, military project, petrochemical, electronic, marine etc. Pressure transmitter is used to measure the gas, steam’s level , density, and press. Then transform it into 4-20mA DC signal connecting to PC, control instrument etc.

Characteristics

Range: -0.1~ 0 ~ 60MPa

Resolution: 0.5% F.S

Output signal: 4~20mA; 1~5V; 0~10V; 0~5V; RS485

Installation: Thread

Power supply: 24VDC (9 ~ 36V)

  • Specification
 Product  Pressure transmitter
 Model SUP-PX300
 Measure range -0.1…0/0.01…60Mpa
 Indication  resolution 0.5%
 Working temperature -20-85°C
 Output signal 4-20ma analog output
 Pressure type Gauge pressure, adiabatic pressure and sealed pressure
 Measure medium Liquid; Gas; Oil etc
 Pressure overload 0.035...10MPa(150%FS)10...60MPa(125%FS)
 Power 10-32V (4...20mA);12-32V (0...10V);8-32V (RS485)
  • Introduction

Pressure transmitter is a common sensor in industrial. Widely used in automatic control program like Water resources and hydropower, railway, building automation, aerospace, military project, petrochemical, electronic, marine etc. Pressure transmitter is used to measure the gas, steam’s level , density, and press. Then transform it into 4-20mA DC signal connecting to PC ,control instrument, and etc.

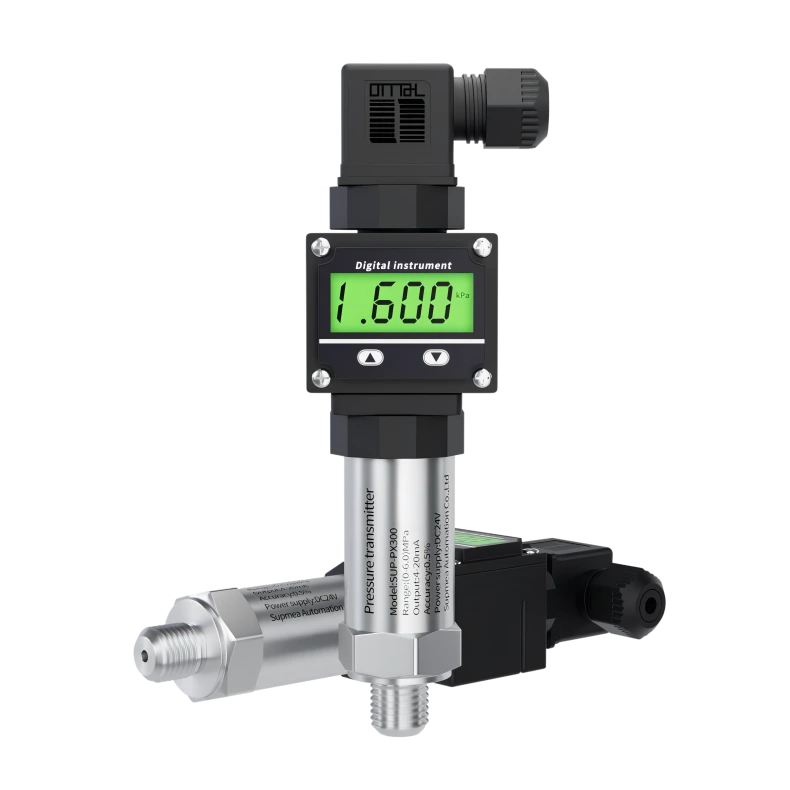

SUP-PX300 Pressure transmitter with display

  • Description

pressure transmitter application

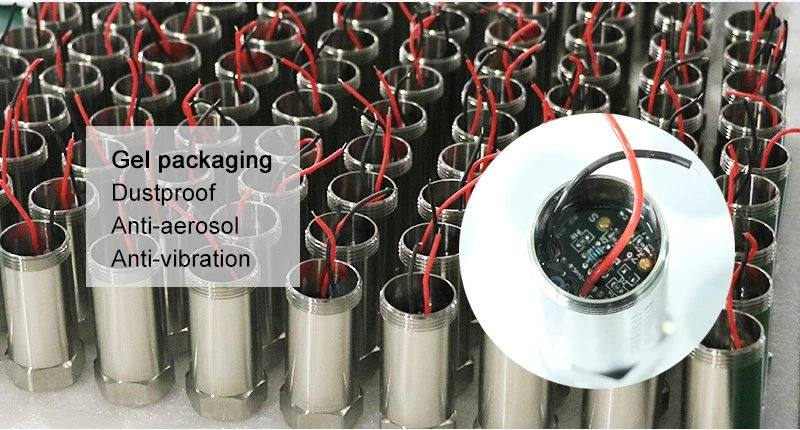

pressure process

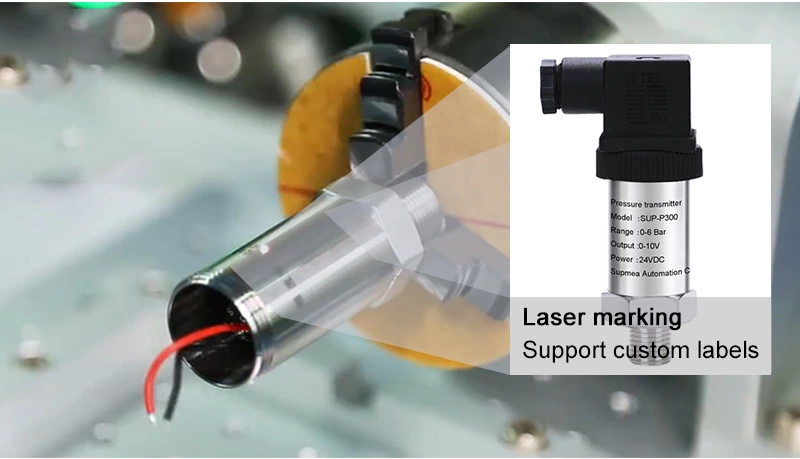

pressure oem label

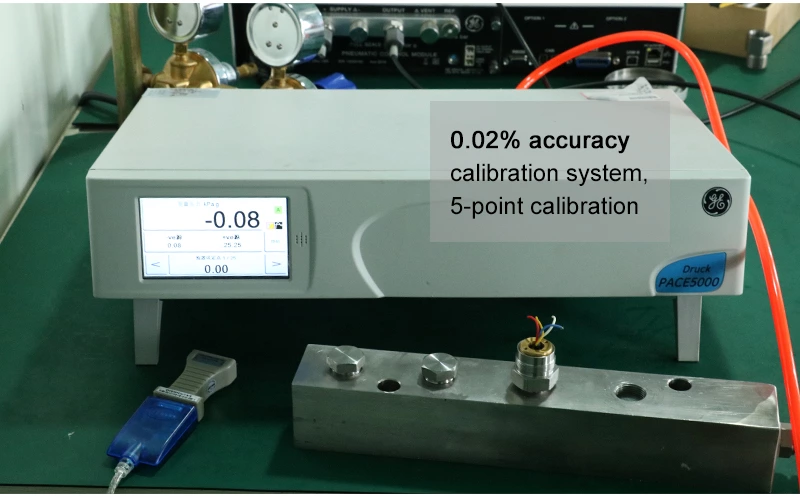

pressure sensor calibration
