Name: SUP-P300 Pressure transmitter with compact size for universal use
Brand: Supmea
SKU: 00074
Rating: 4.8 (22436 reviews)

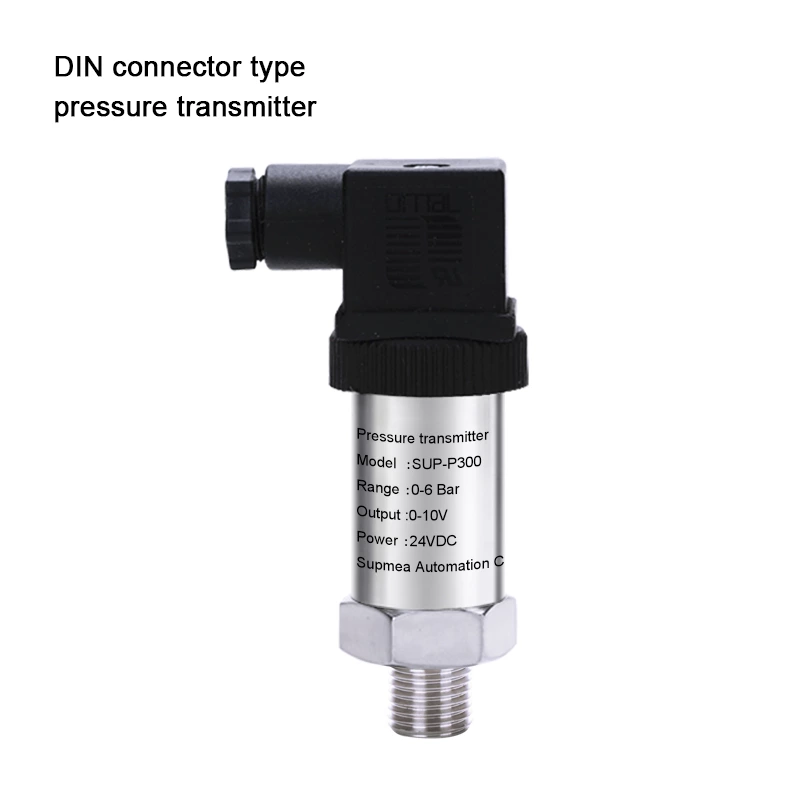

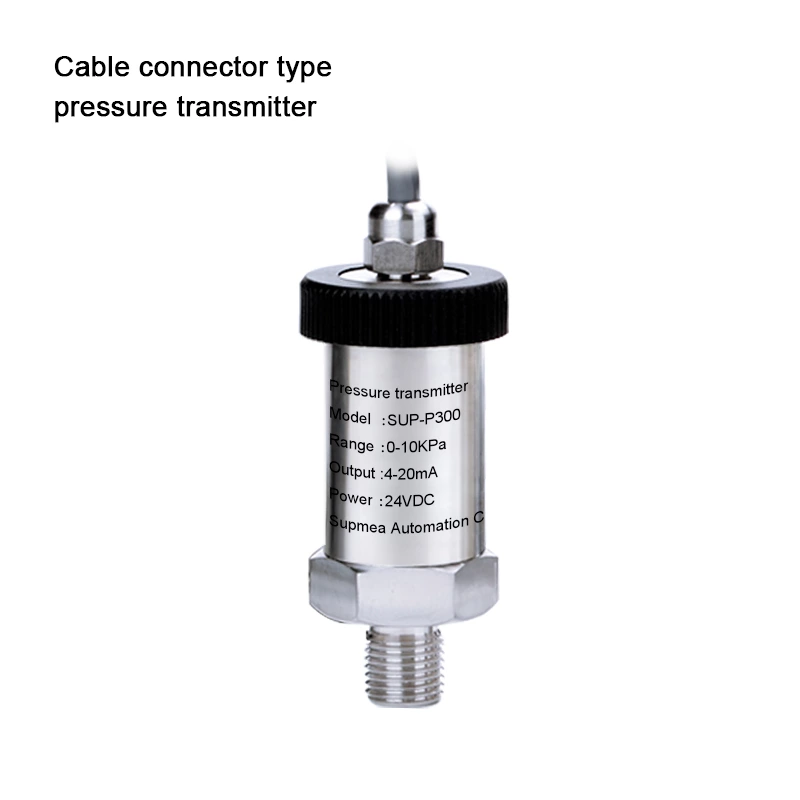

SUP-P300 Pressure transmitter with compact size for universal use

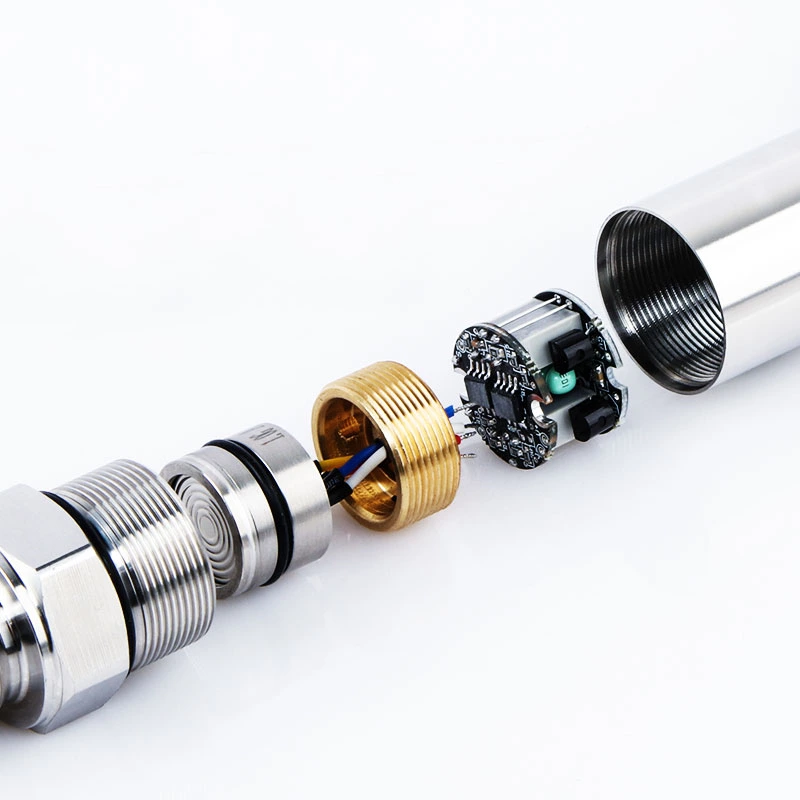

SUP-P300 is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm, can work in the non-causticity environment, with 4-20mA signal output. P300 series is widely applied in pressure measurement for aviation, aerospace, automobile, medical treatment equipment, HVAC etc.

Characteristics

Range: -0.1...0...60MPa

Resolution: 0.5% F.S; 0.3%F.S optional

Output signal: 4...20mA; 1...5V; 0...10V; 0...5V; RS485

Installation: Thread

Power supply: 24VDC (9 ~ 36V)

Specification

Product	Pressure transmitter
Model	SUP-P300
Measure range	-0.1MPa…0~10kPa…60Mpa
Pressure type	Gauge pressure, Adiabatic pressure, Sealing pressure
Accuracy	0.5% F.S; 0.2%F.S,0.25%F.S, optional
Output signal	4~20mA; 1~5V; 0~10V; 0~5V; RS485
Temperature compensation	-10~70 ℃
Working temperature	-20~85 ℃
Medium temperature	-20~85 ℃
Storage temperature	-40~85 ℃
Overload pressure	0.035~10MPa（150%FS）, 10~60MPa（125%FS）
Long-term stability	± 0.2%FS/year
Power supply	10~32V (4~20mA); 12~32V (0~10V); 8~32V (RS485, 0~5V, 1~5V)
Ingress protection	IP65

Introduction

SUP-P300 is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm , can work in the non-causticity environment, with 4-20mA signal output. P300 series is widely applied in pressure measurement for aviation, aerospace, automobile, medical treatment equipment, HVAC etc.

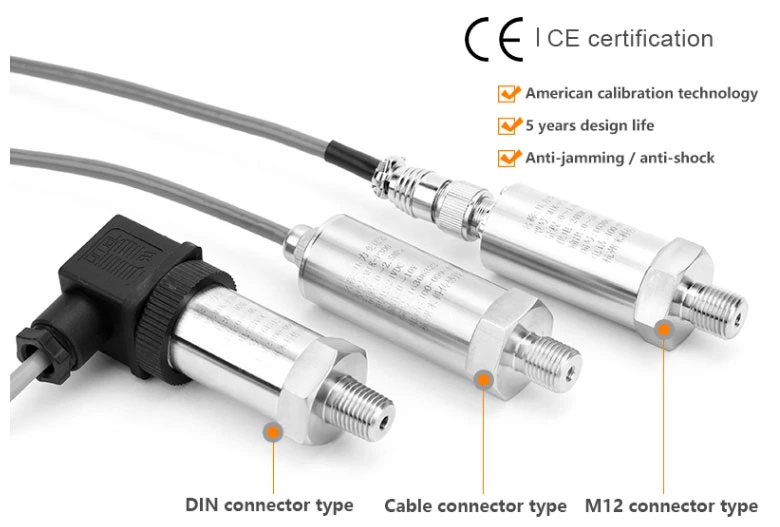

10 bar pressure transmitter
