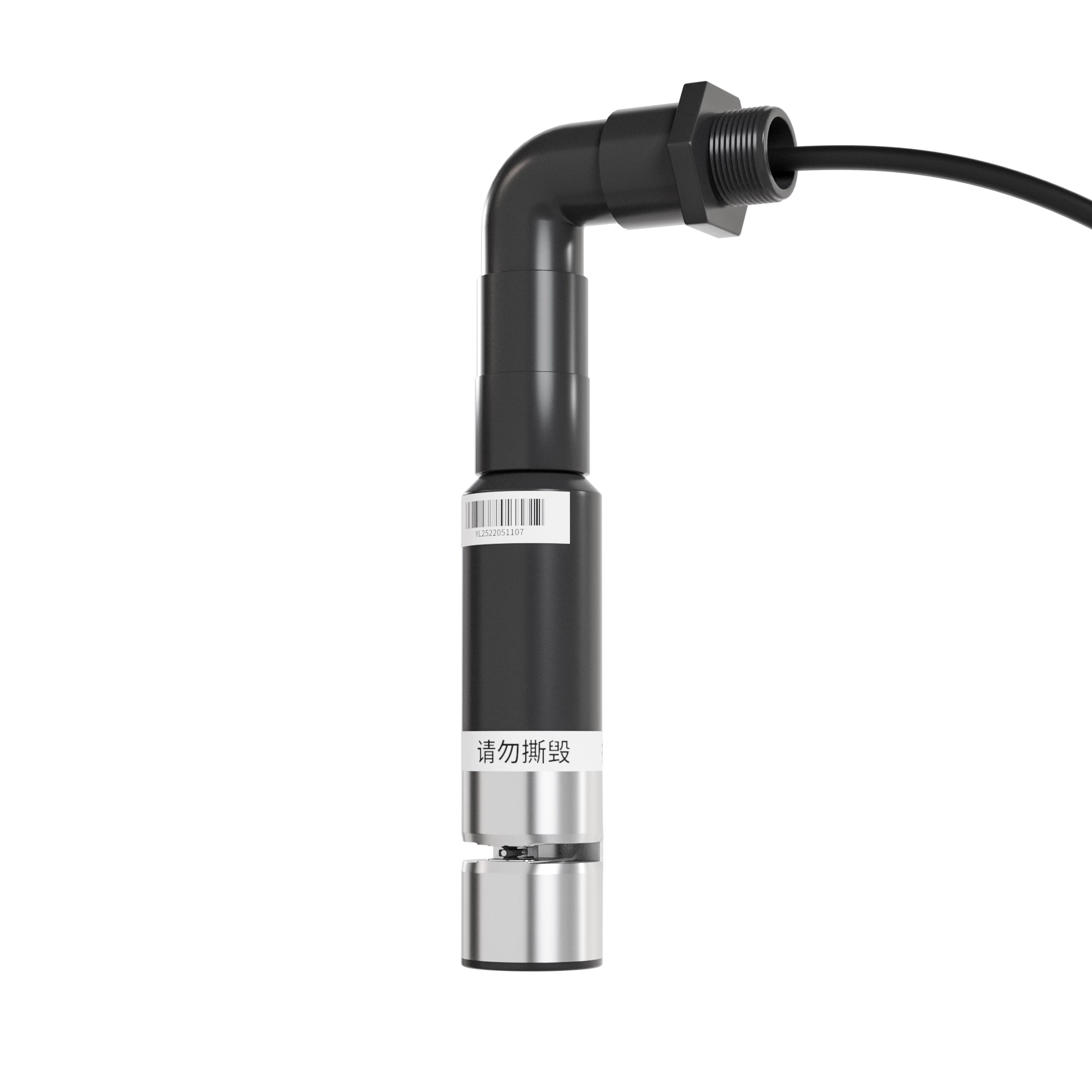

ADT3100 Suspended solids/ TSS/ MLSS meter

Suspended Solids Meter based on the infrared absorption scattered light method and combined with the application of ISO7027 method, can guarantee the continuous and accurate detection of suspended solids and sludge concentration. Based on ISO7027, infrared double scattering light technology will not be affected by chroma for the measurement of cuspended colids and cludge concentration value. According to the usage environment, self-cleaning function can be equipped with.

Characteristics

Range: 0.1 ~ 20000 mg/L; 0.1 ~ 45000 mg/L; 0.1 ~ 120000 mg/L

Resolution: Less than ± 5% of the measured value

Pressure range: ≤0.4MPa

Power supply: AC220V±10%; 50Hz/60Hz

Specification

Product	Suspended Solids (Sludge Concentration/ TSS/ MLSS) meter
Model	ADT3100
Main materials	lower casing: Aluminum with powder covering
Main materials	cover: PA66+GF25+FR
Waterproof rate	IP65
Storage temperature	-20~70℃
Operation Temperature	-15~60℃
Output	three-way analog output 4-20mA, response parameters and corresponding scope can be programmed Note: the maximum load is 500 ohms
Relay	three-way relay can be set up, and response parameters and response values can be programmed
Display	128 * 64 dot matrix LCD with LED backlight
Digital Communication	MODBUS RS485 communication function, which can transmit real-time measurements
Power Supply	AC：85-500V, 50/60HZ, 5W DC:9-36V
Size	145125162mm LWH
Weight	1.35 KG

Introduction

Suspended solids meter, based on the infrared absorption scattered light method and combined with the application of ISO7027 method, can guarantee the continuous and accurate detection of turbidity. Based on ISO7027, infrared double scattering light technology will not be affected by chroma for the measurement of turbidity value. According to the usage environment, self-cleaning function can be equipped with. It assures the stability of data and reliability of performance; with the built-in self-diagnosis function, it can make sure the accurate data be delivered; besides, the installation and calibration is quite simple.
