SUP-PTU8011 Turbidity Sensor

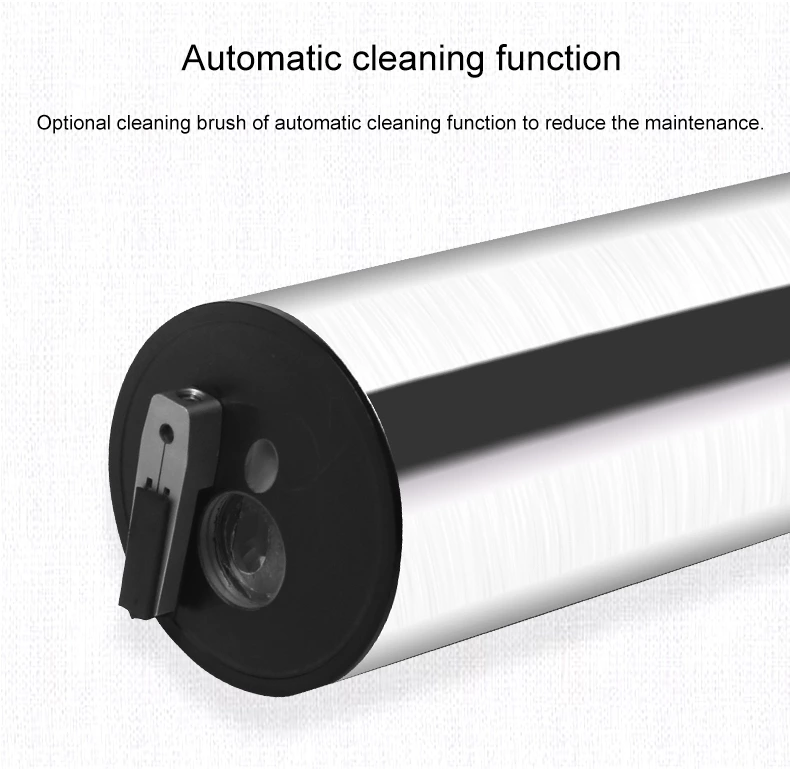

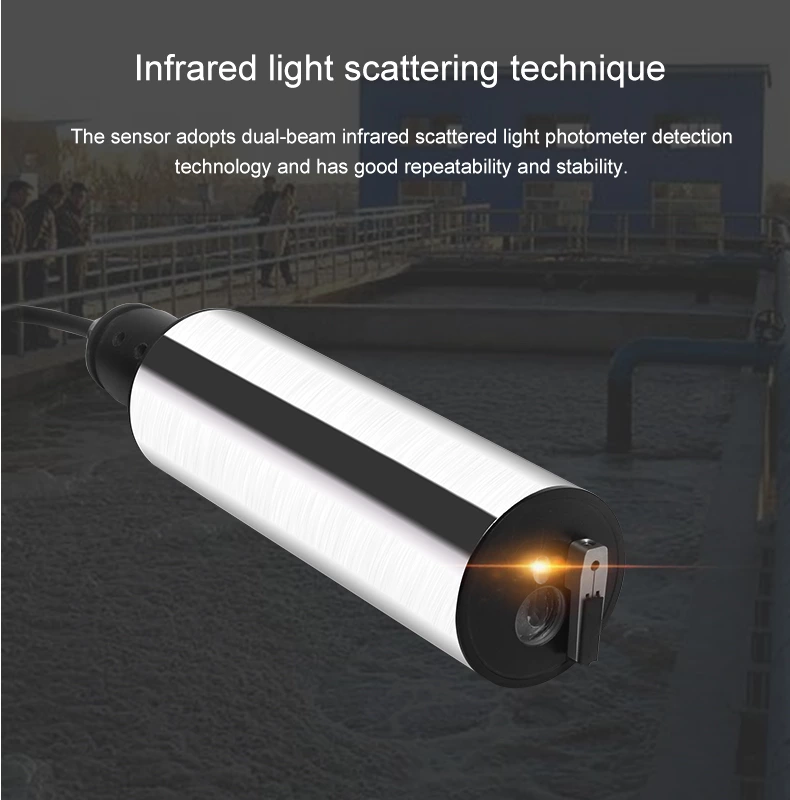

SUP-PTU-8011 turbidity meter based on the infrared absorption scattered light method and combined with the application of ISO7027 method, can guarantee the continuous and accurate detection of turbidity. Based on ISO7027, infrared double scattering light technology will not be affected by chroma for the measurement of turbidity value. According to the usage environment, self-cleaning function can be equipped with. It assures the stability of data and reliability of performance; with the built-in self-diagnosis function, it can make sure the accurate data be delivered; besides, the installation and calibration is quite simple.

Characteristics

Range: 0.01-100 NTU 、0.01－4000 NTU

Resolution: Less than ± 2% of the measured value

Pressure range: ≤0.4MPa

Environment temp: 0~45℃

Specification

Product	Turbidity sensor
Model	SUP-PTU8011
Measure range	0.01-4000 NTU
Indication resolution	Less than ± 2% of the measured value,
	or ± 0.1 NTU Maximax criterion
Pressure range	≤0.4 MPa
Flow velocity	≤2.5m/s, 8.2ft/s
Environment temp	0~45℃
Calibration	Sample Calibration, Slope Calibration

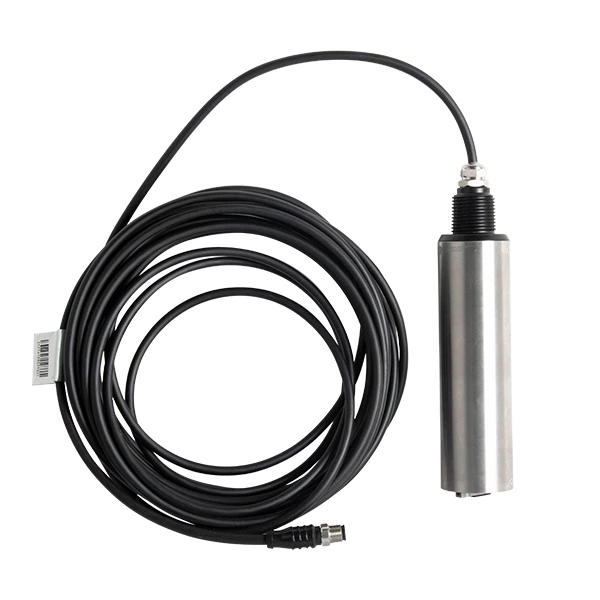

Cable length	Standard 10-Meter Cable, Max Length: 100 Meters
High voltage baffle	Aviation Connector, Cable Connector
Main materials	Main Body:SUS316L (Ordinary Version)
	Titanium Alloy (Seawater Version)
	Upper and Lower Cover: POM; Cable: PUR

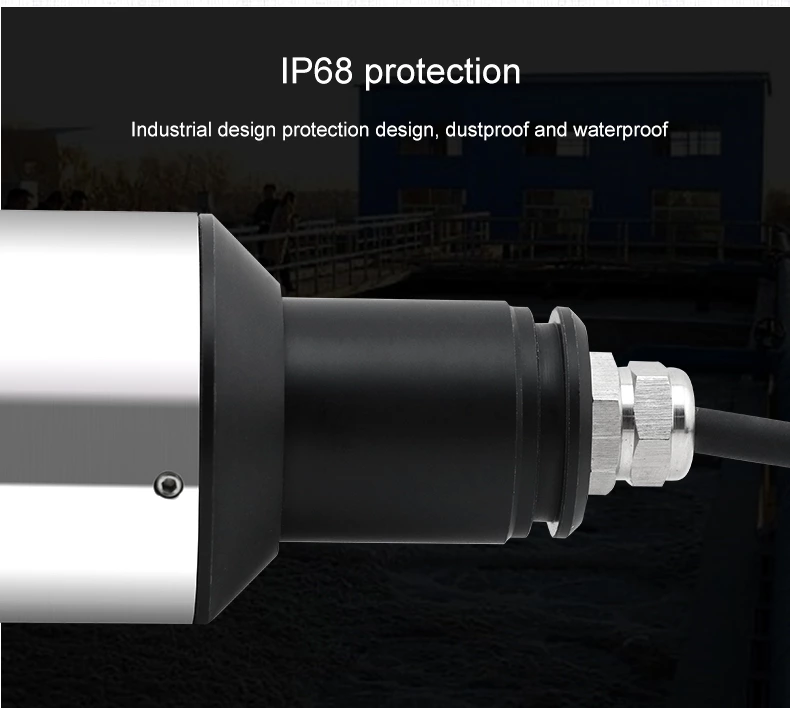

Ingress protection	IP68/NEMA6P
Weight	1.65 KG

Introduction

The SUP-PTU-8011 turbidity sensor is a type of process control instrument used to measure the degree of cloudiness or haziness of a liquid sample. It is commonly used in water treatment plants, food and beverage processing, and other industrial applications where water quality is critical. The key features of a turbidity sensor include its ability to detect minute particles and suspended solids in the liquid sample, and its high accuracy and sensitivity.

The main advantage of a turbidity sensor is its ability to provide real-time measurements of water quality, allowing for immediate corrective actions to be taken if the turbidity levels exceed acceptable limits. This helps to ensure that the water is safe and suitable for its intended use. Turbidity sensors also require minimal maintenance, making them a cost-effective solution for long-term monitoring of water quality.

Turbidity sensors are commonly used in water treatment plants to monitor the effectiveness of the treatment process and ensure that the water meets regulatory standards. They are also used in food and beverage processing to monitor the clarity of liquids and ensure that they are free from contaminants. In addition, turbidity sensors are used in industrial applications such as mining, where they are used to monitor the clarity of process water and ensure that it is suitable for use in the production process.

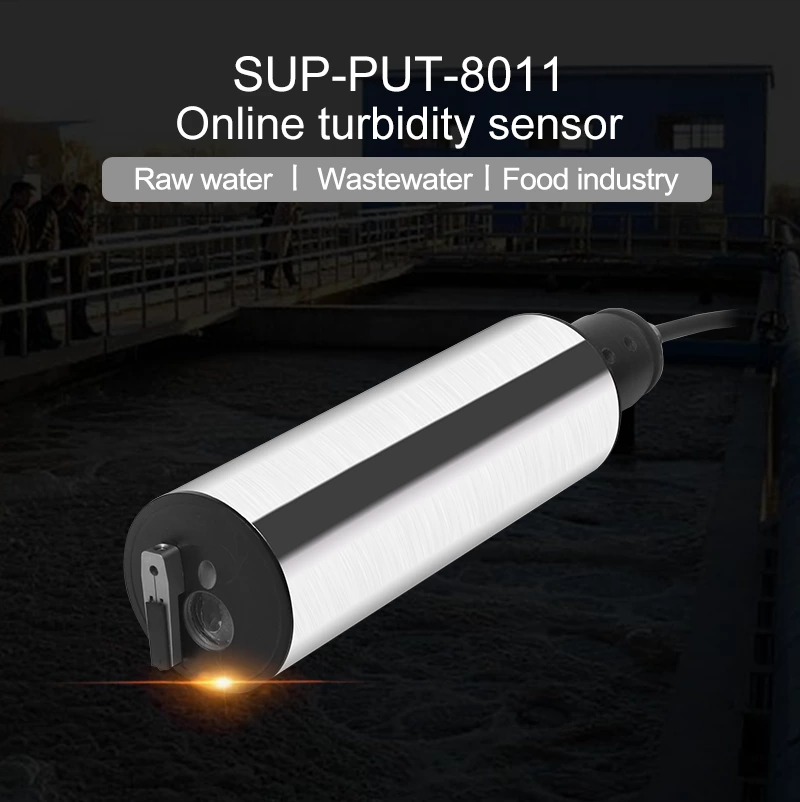

optical turbidity sensor
