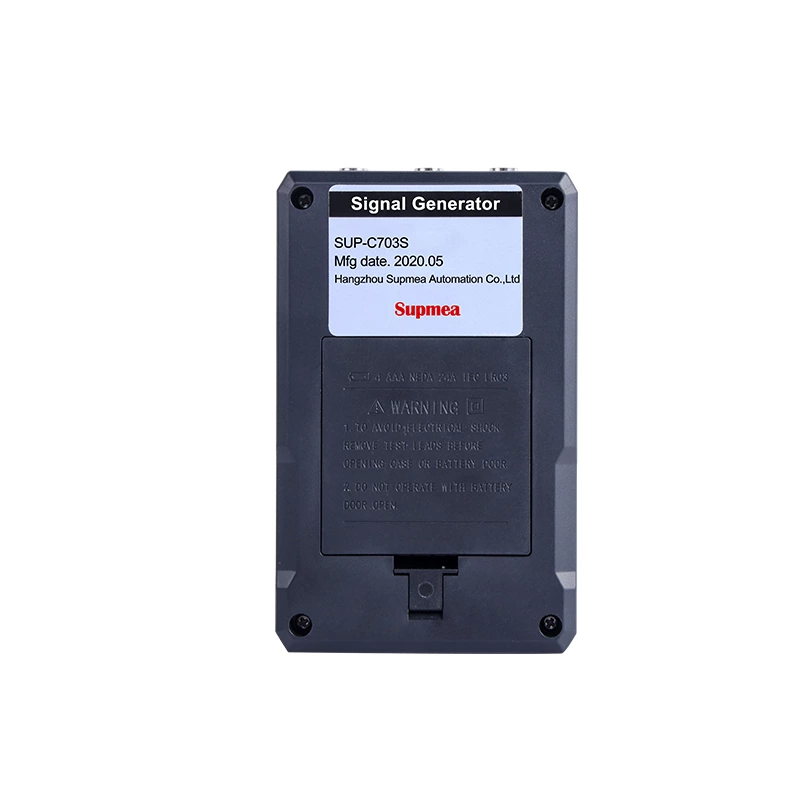

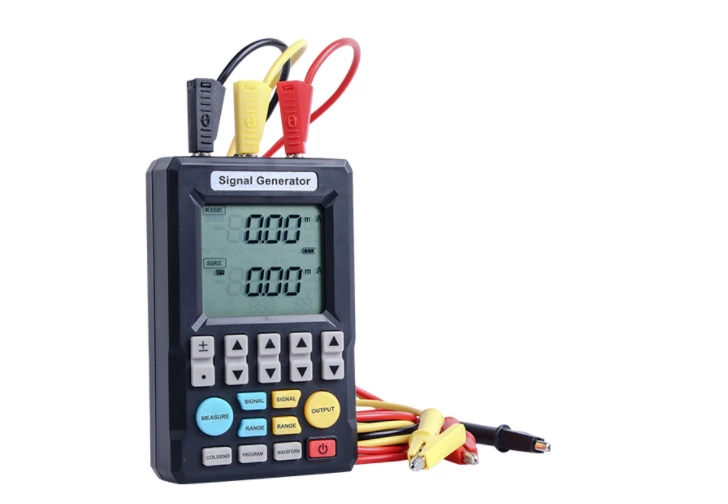

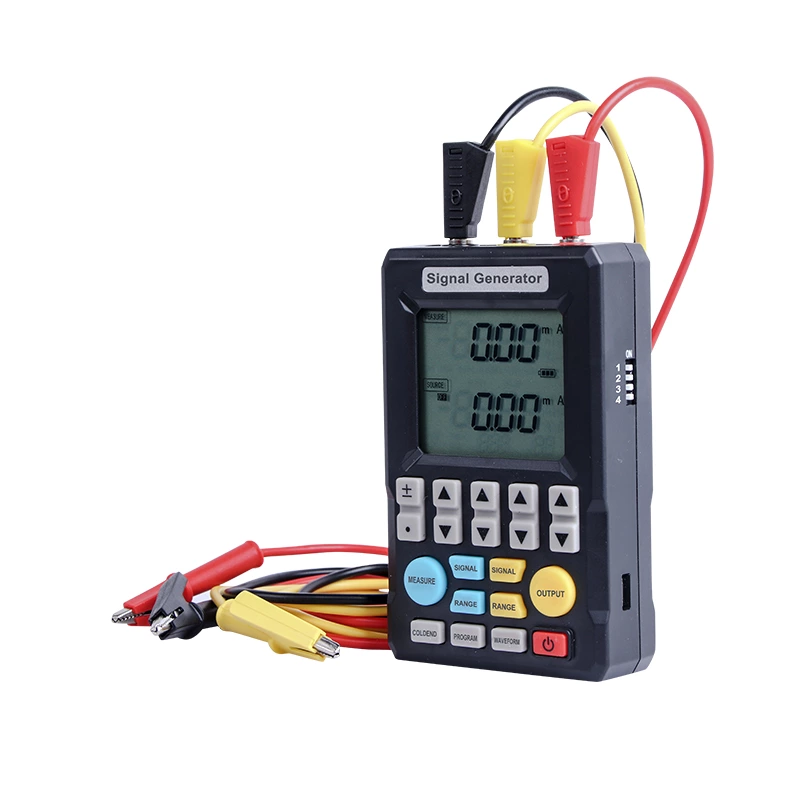

SUP-C703S Signal generator

SUP-C703S Signal generator has a multiple signal Output and measurement including voltage, current and thermoelectric couple with LCD screen and silicone keypad, simple operation, longer standby time, higher accuracy and programmable output. It's widely used in LAB Industrial field, PLC Process Instrument, Electric value and other area's debugging.

Characteristics

· Sources and reads mA, mV, V, Ω, RTD and TC

· 4*AAA batteries power supply

· Thermocouple measurement / output with automatic or manual cold junction compensation

· Corresponds to various types of source pattern (Step sweep / Linear sweep / Manual step)

Specification

Product	Signal generator
Model	SUP-C703S
Operating temperature and humidity	-10~55℃, 20~80% RH
Storage temperature	-20-70℃
Size	115x71x30(mm)
Weight	143g
Power	4*AAA batteries or external 5 V/1A adapter
Power dissipation	About 200 mA; with power supplied by 4*AAA batteries (each nominal capacity of 1100 mAh ), can be used for 4 hours with a full load and 17 hours standing by.
OCP	30V
