SUP-PD500 Pressure and temperature transmitter

SUP-PD500 is a high performance range of combination pressure and temperature transmitters. Dual 4-20mA outputs make it very powerful and efficient transmitters especially where space is at a premium or it is essential to measure both parameters in the exact same location.

Characteristics

Range: 0~600kPa…60MPa

Resolution: Pressure: 0.5% F.S; Temp: 2.5% F.S

Output signal: 4...20mA

Installation: Thread

Power supply: 12-30V

  • Specification
 Product  Pressure & Temperature Transmitter
 Model SUP-PD500
 Measure range 0~600 kPa… 60MPa
  0~+80 ℃
 Pressure type Gauge pressure
 Accuracy Pressure: 0.5% F.S; Temp: 2.5% F.S
 Output signal 4...20mA; 1...5V; 0...10V; 0...5V; RS485
 Temperature compensation -10...60 ℃
 Medium temperature -30...65 ℃
 Overload pressure 150%FS
 Long-term stability ± 0.2%FS/year
 Power supply 12-30V
Ingress protection IP68
  • Introduction

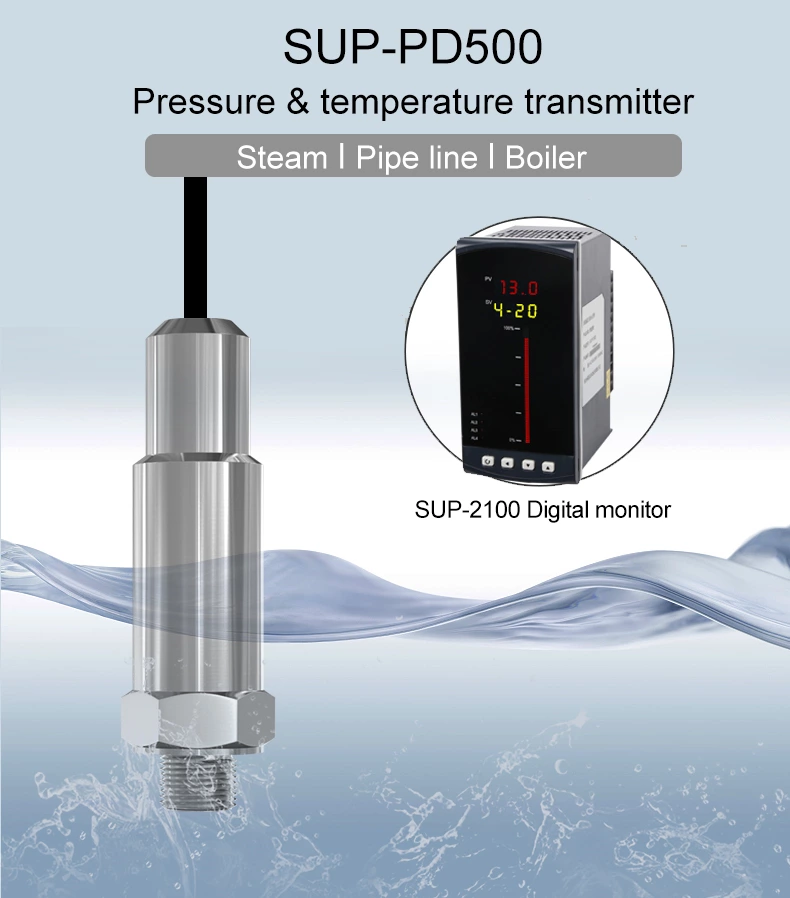

pressure transmitter size

Noted: the product strictly prohibited to be used in explosion-proof occasions.


  • Description

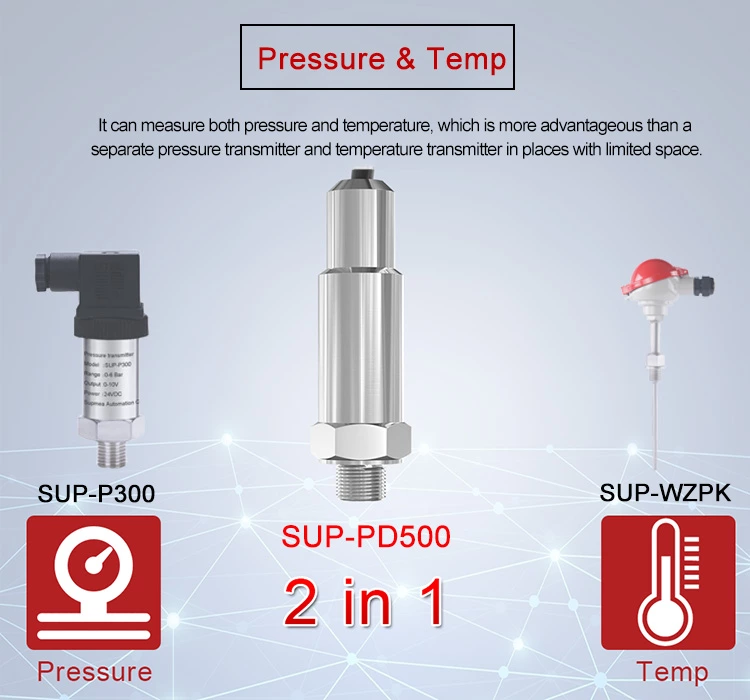

pressure transmitter and temperature

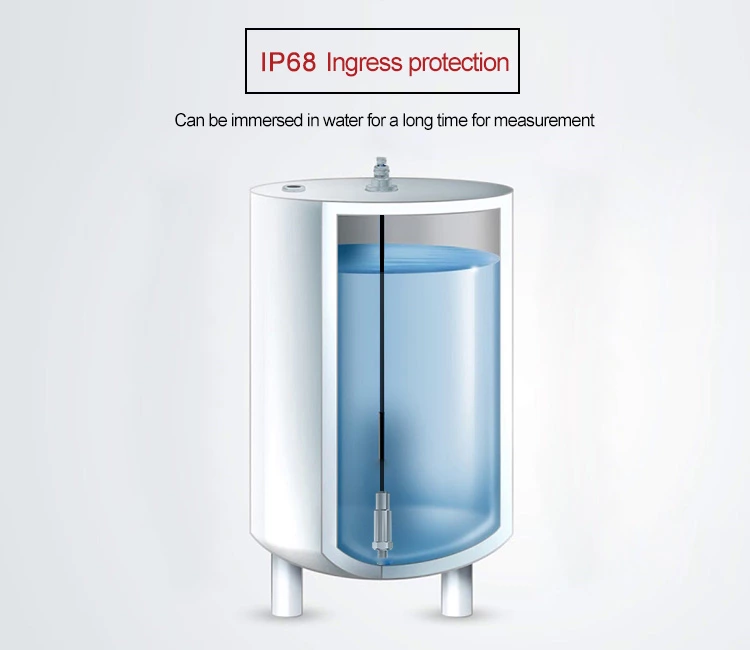

ip68 pressure transmitter
