Zero potential point: 7 ± 0.5 pH
Conversion coefficient: > 98%
Installation size: Pg13.5
Pressure: 0 ~ 4 Bar at 25 ℃
Temperature: 0 ~ 100℃ for general cables
Specification
| Product | Glass pH sensor |

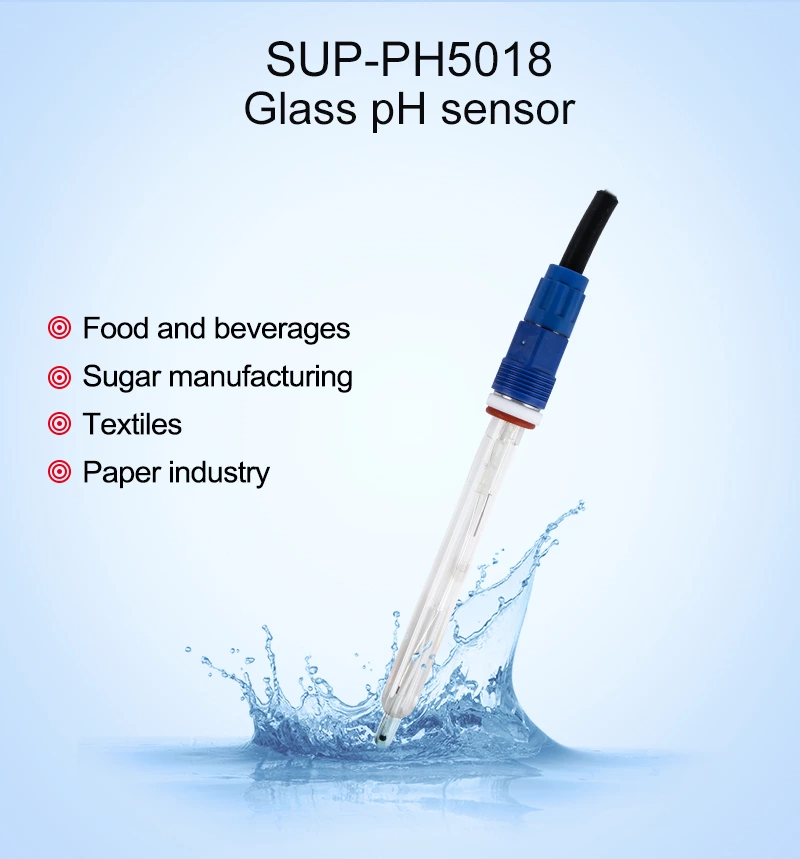

| Model | SUP-PH5018 |
| Measurement range | 0-14 pH |
| Zero potential point | 7 ± 0.5 pH |
| Slope | > 98% |
| Membrane resistance | <250ΜΩ |
| Practical response time | < 1 min |
| Salt bridge | Porous ceramic core/ porous Teflon |
| Installation size | Pg13.5 |
| Heat resistance | 0 ~ 100℃ |
| Pressure resistance | 0.25MPa |
| Temperature compensation | NTC10K/Pt100/Pt1000 |
Introduction
Product advantages
Adopt international advanced solid dielectric and large area PTFE liquid junction, no clogging, easy maintenance.
Long distance reference diffusion path, extends electrode life greatly in harsh environments.
Using PPS / PC shell, Up and down 3/4NPT pipe thread, easy installation, no need sheath, saving installation costs.
Electrode is made of high quality low-noise cable, make signal output length greater than 40 meters or more, without interference.
No supplemental dielectric, a little maintenance.
High accuracy, fast response, good repeatability.
With silver ions Ag / AgCL reference electrode.
Proper operation to extend service life
Side or vertically installation to the reaction tank or pipe.
