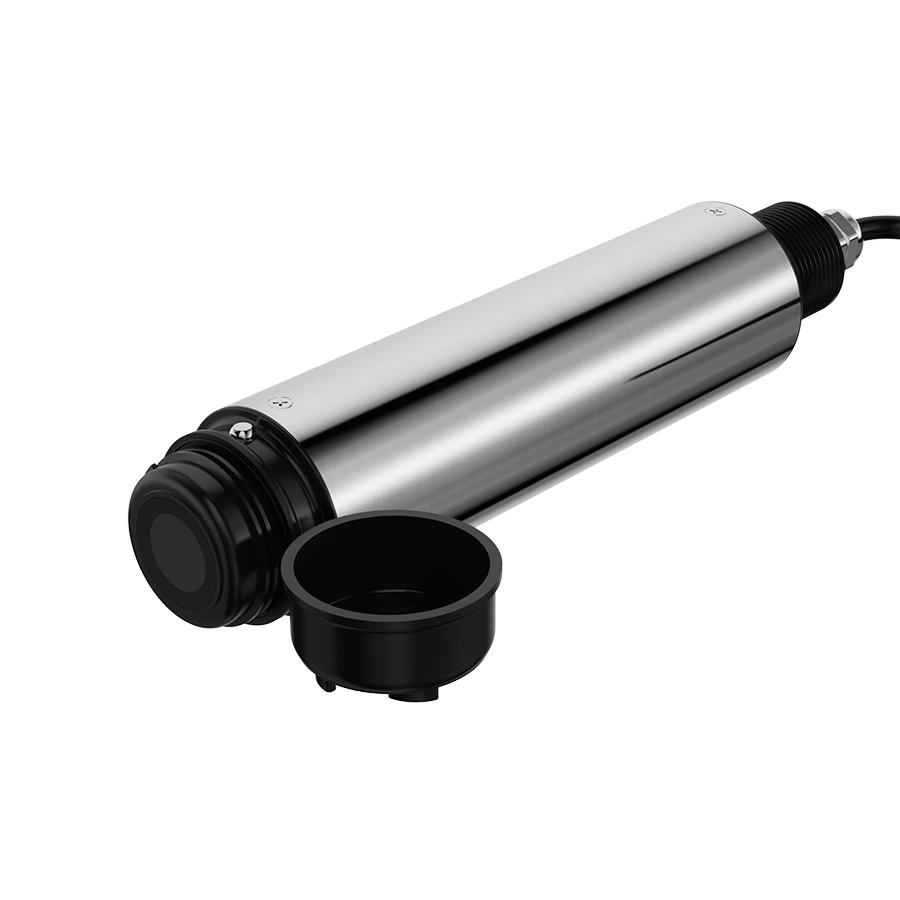

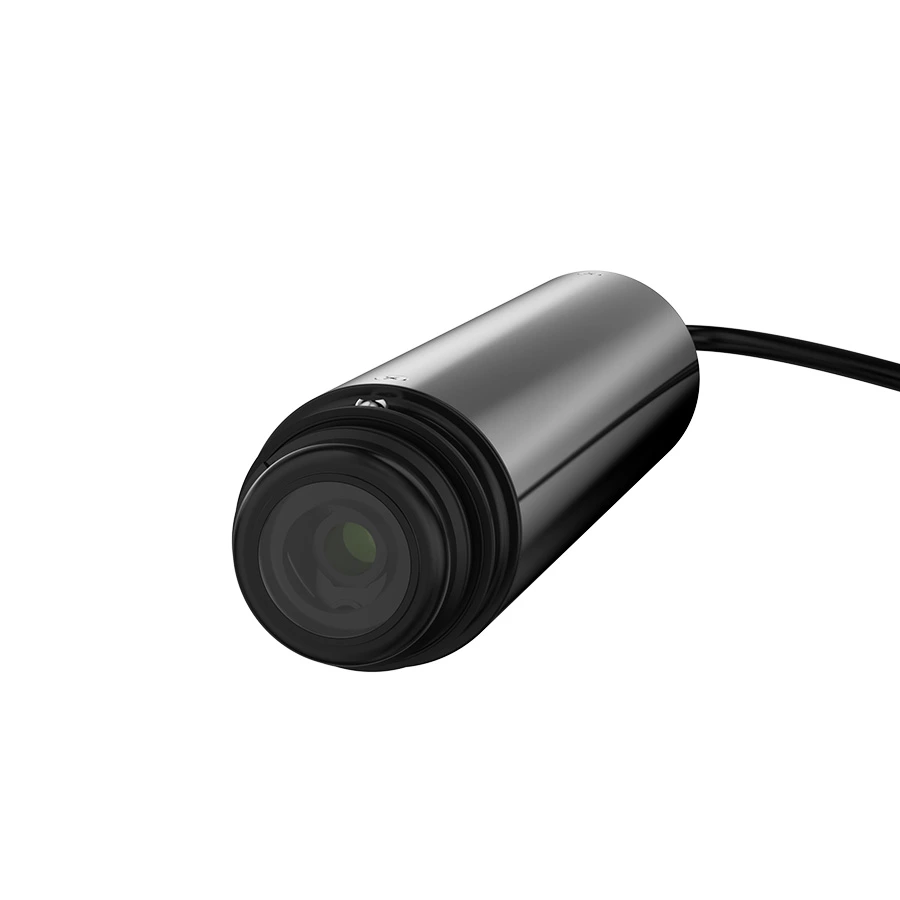

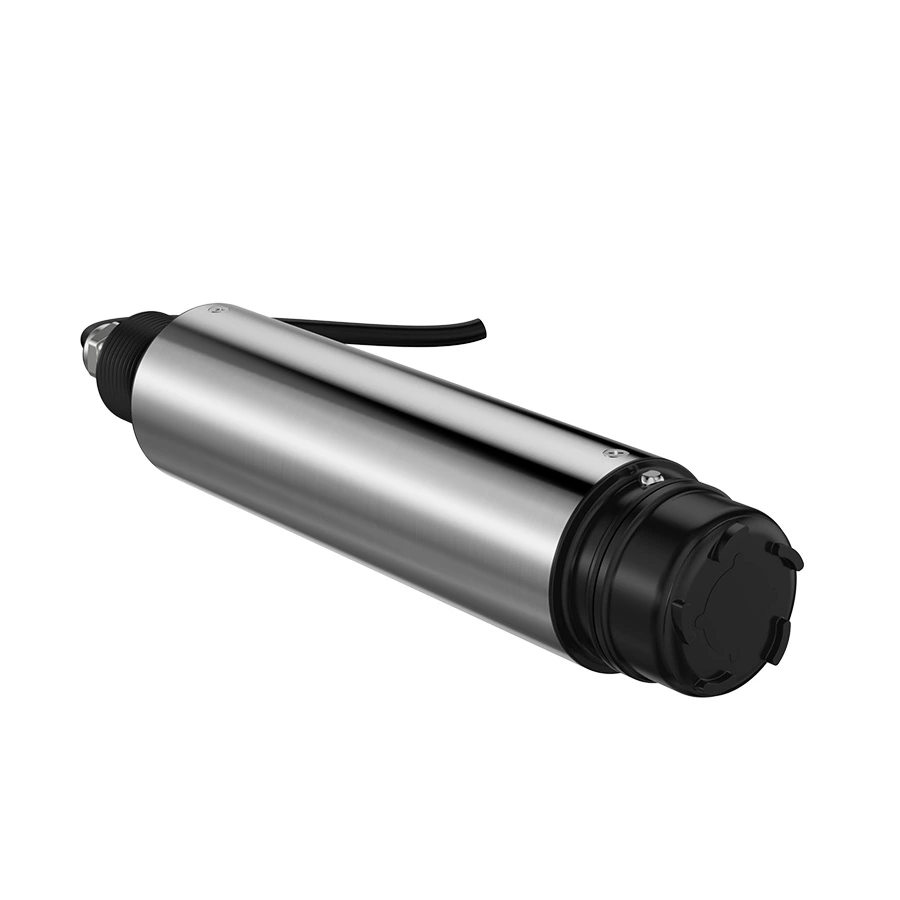

SUP-DO7012 Optical dissolved oxygen sensor

SUP-DO7012 Optical type dissolved oxygen sensor, an intelligent online chemical analyzer. The cap of the sensor is coated with a luminescent material. Blue light from an LED illuminates the luminescent chemical. The luminescent chemical instantly becomes excited and releases red light. The time and intensity of red light are inversely proportional to the concentration of oxygen molecules, So the concentration of oxygen molecules is calculated.

Characteristics

Range: 0-20mg/L,0-20ppm,0-45deg C

Resolution: ±3%, Temperature: ±0.5℃

Pressure range: ≤0.3Mpa

Power supply: 12 VDC

Specification

Product	Dissolved oxygen sensor
Model	SUP-DO7012
Measure range	0-20mg/L,0-20ppm,0-45deg C
Accuracy	Resolution:±3%, Temperature: ±0.5℃
Pressure range	≤0.3Mpa
Power supply	12 VDC (9~28)VDC
Main material	SUS316L+PVC (Ordinary Version),
	Titanium Alloy (Seawater Version)
	O-ring:PPS+glass fiber; Cable: PUR
Cable length	Standard 10-Meter Cable, Max : 100m
Display	128 * 64 dot matrix LCD with LED backlight
Power supply	12 VDC
Calibration	Automatic air calibration,Sample calibration
Storage Temperature	-15~60℃
Operation temperature	0~45℃
Weight	1.4kg
Ingress protection	IP68/NEMA6P

Introduction

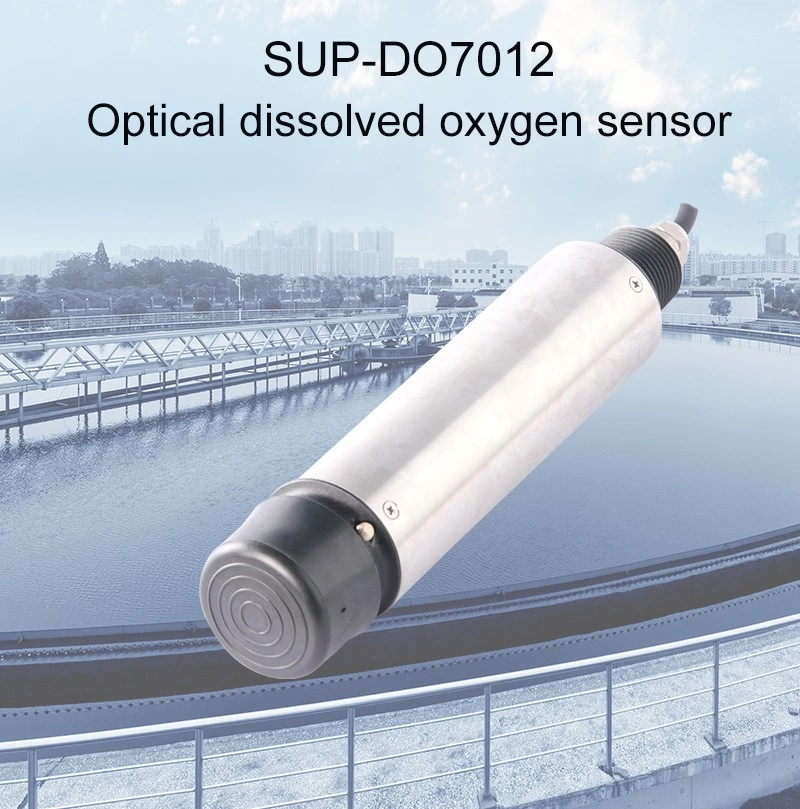

SUP-DO7012 Dissolved oxygen sensor

Communication Protocol

MODBUS-RTU
Baud Rate	4800/9600/19200/38400/57600
Data Bits	8 bit
Parity Check	no
Stop Bit	1bit

Register Name	Address Location	Data Type	Length	Read/Write	Description
Dissolved Oxygen Value	0	F(Float)	2	R(only read)
Dissolved Oxygen Concentration	2	F	2	R
Temperature	4	F	2	R
Slope	6	F	2	W/R	Range:0.5-1.5
Deviation Value	8	F	2	W/R	Range:-20-20
Salinity	10	F	2	W/R
Atmospheric Pressure	12	F	2	W/R
Baud Rate	16	F	2	R
Slave Address	18	F	2	R	Range: 1-254
Response Time of Read	20	F	2	R
Modift Baud Rate	16	Signed	1	W
Modify Slave Address	17	Signed	1	W	Range: 1-254
Modify Response Time	30	Signed	1	W	6-60s
