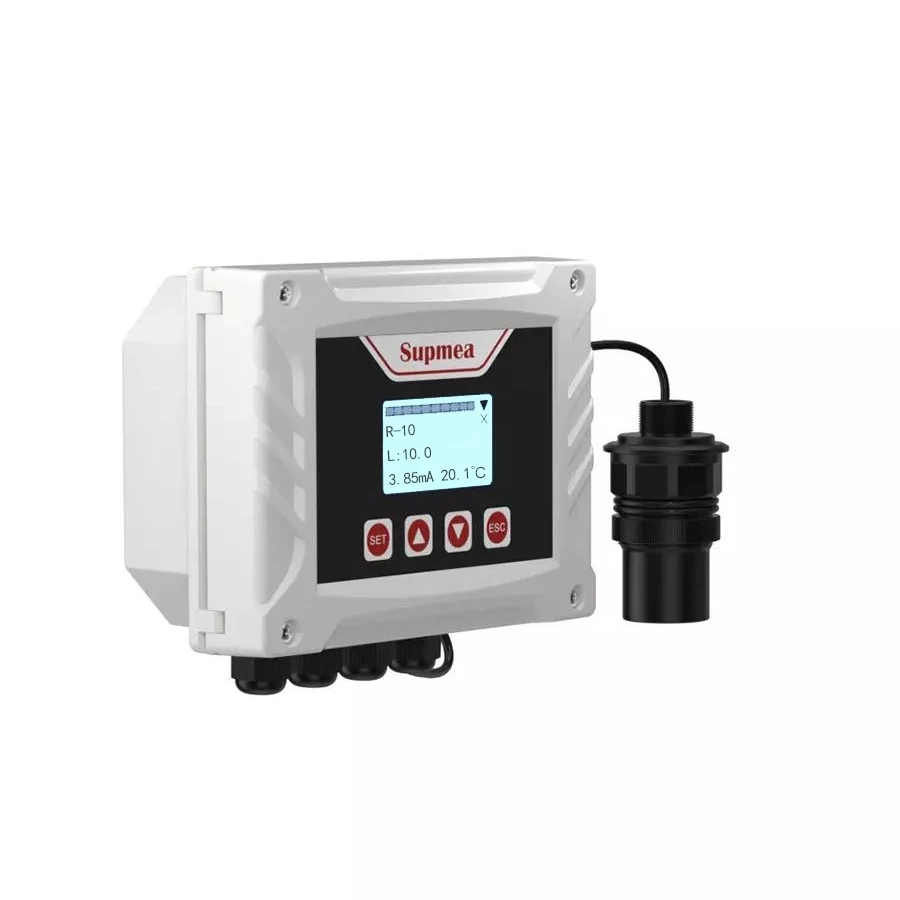

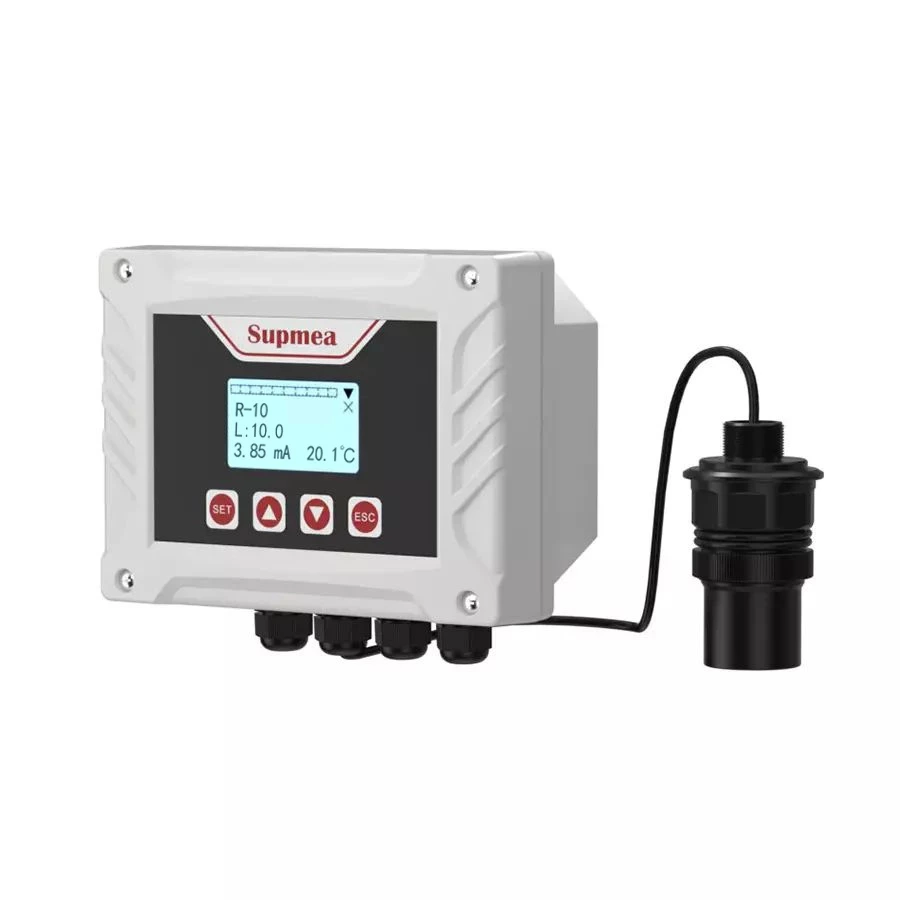

SUP-ULS-B ultrasonic level transmitter is a non-contact, high reliability, cost-effective, easy to install and maintain liquid level/material level measure instrument. It can meet most liquid level/level measurement requirements without contacting the measured medium. It is a new generation of ultrasonic level gauge with completely independent property rights of our company.
| Product |
Ultrasonic level transmitter |
| Model |
SUP-ULS-B |
| Measure range |
0-5m,0-10m,0-15m(optional) |
| Blind zone |
≤0.3m(range 5m)
≤0.35m(range 10m)
≤0.5m(range 15m) |
| Accuracy |
±0.3%FS, ±0.5%FS |
| Display |
Monochrome LCD screen |
| Output (optional) |
Isolated,4-20mA |
| Output precision:±0.5%FS |
| RL≤500Ω |
| Measuring variable |
Level/Distance |
| Power supply |
100-240 VAC,5W MAX,50/6Hz 18-28 VDC |
| Temperature range |
Converter:-20-60 ℃
Sensor:-20-80 ℃ |
| Humidity range |
10%-85% RH(no condensation) |
| Ingress protection |
Converter:IP65 Sensor:IP68 |
| Cable |
10m(Standard)
30m MAX(optional) |
| Alarm |
2 relays Capacitance AC250V/3A(Standard) 4 relays(optional) |
| Inatallation |
Wall-mounted |
| Communication |
Isolated RS485,Modbus-RTU |

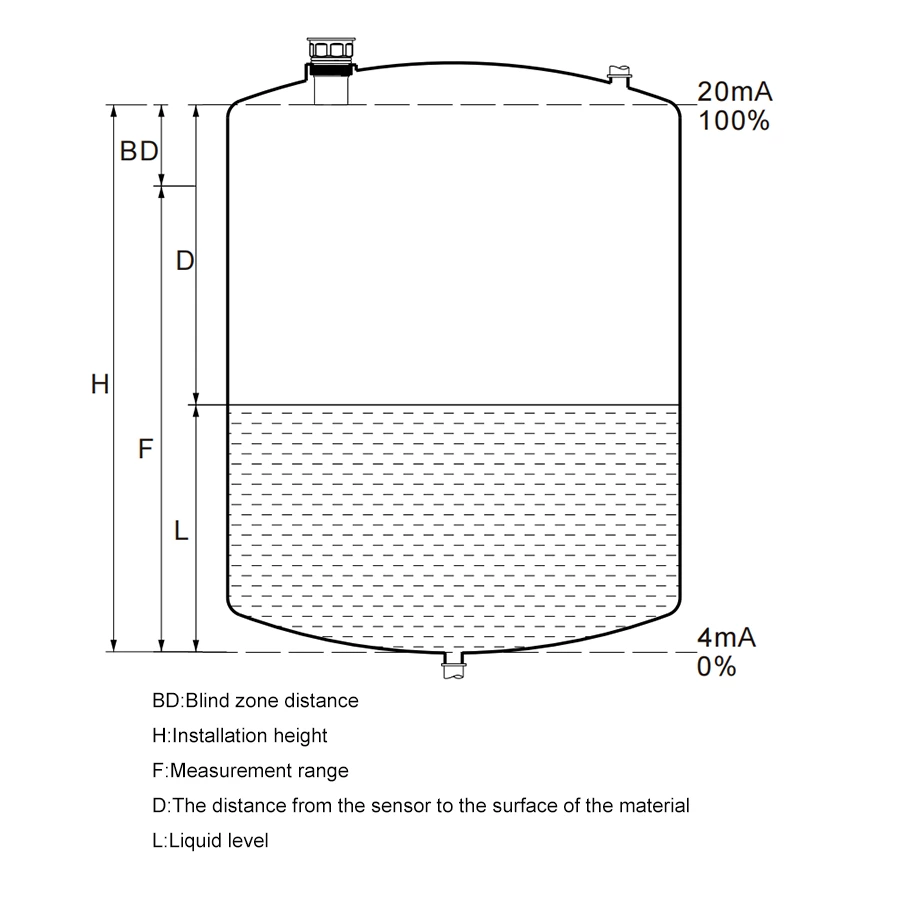

Ultrasonic level transmitters use ultrasonic waves to reflect when encountering the interface of liquid media (solid media) of different densities, and measure the liquid level/distance by measuring the transit time.
Convenient operation
Fault self-diagnosis technology
A variety of working conditions algorithm selection
Fast response time
Automatic temperature compensation
High precision
