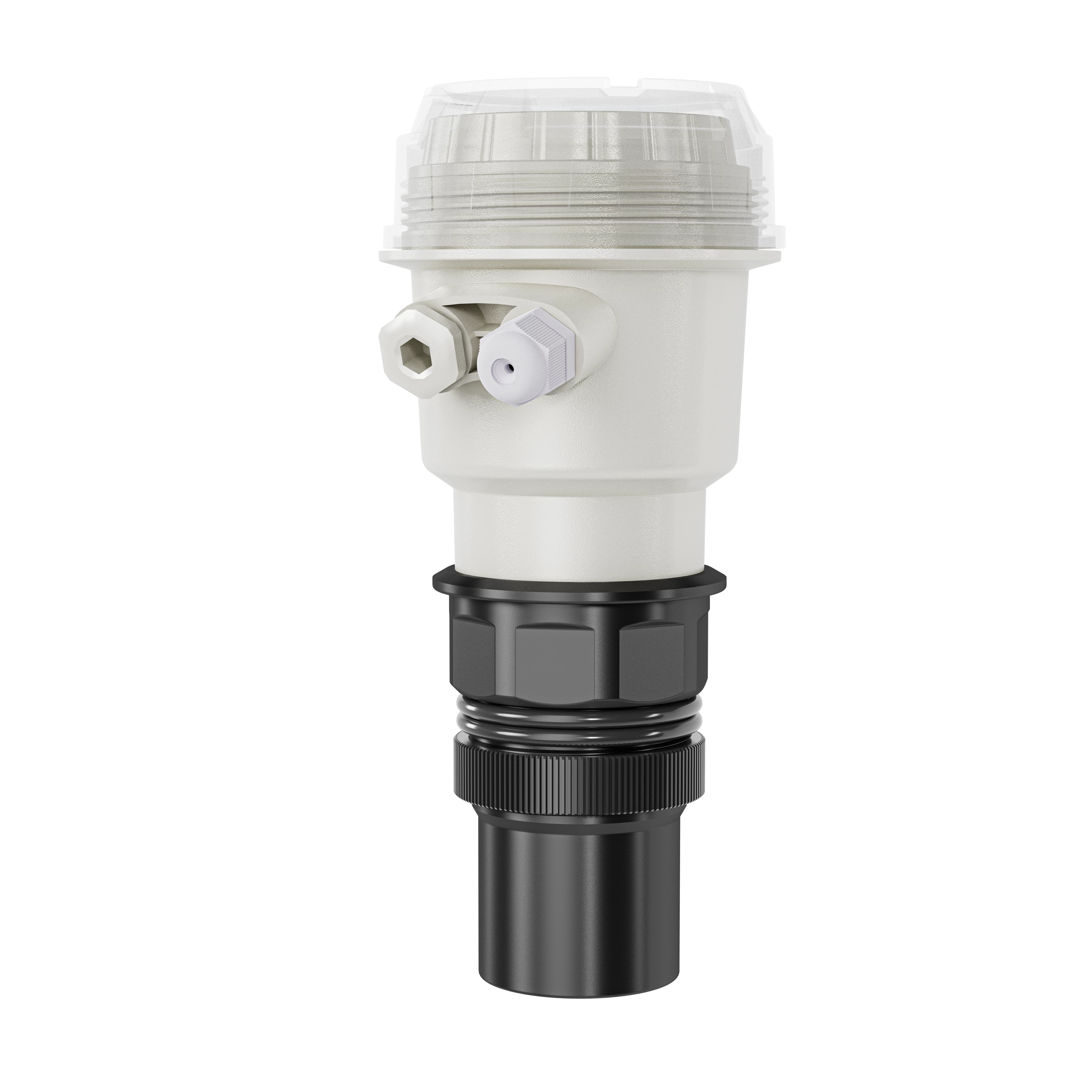

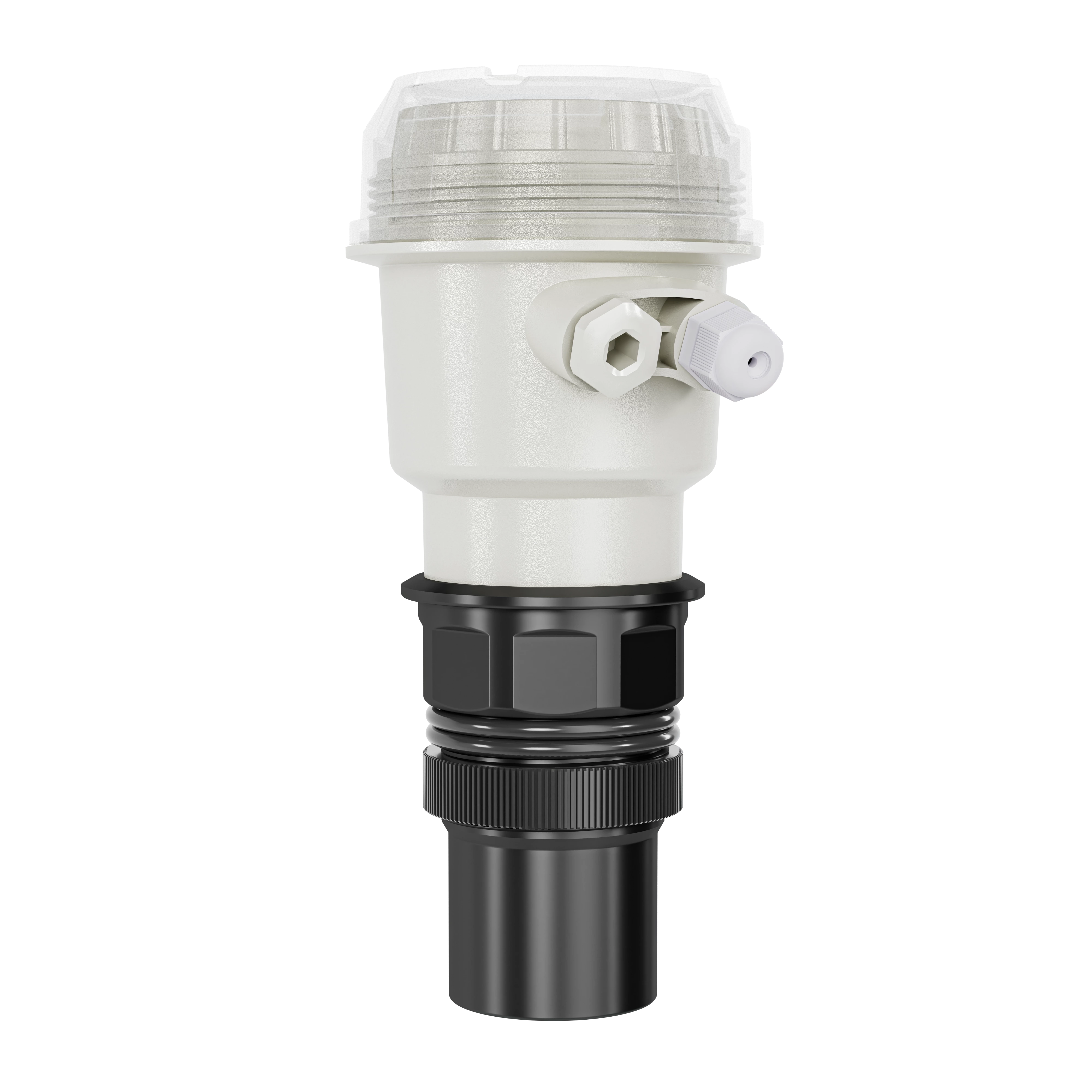

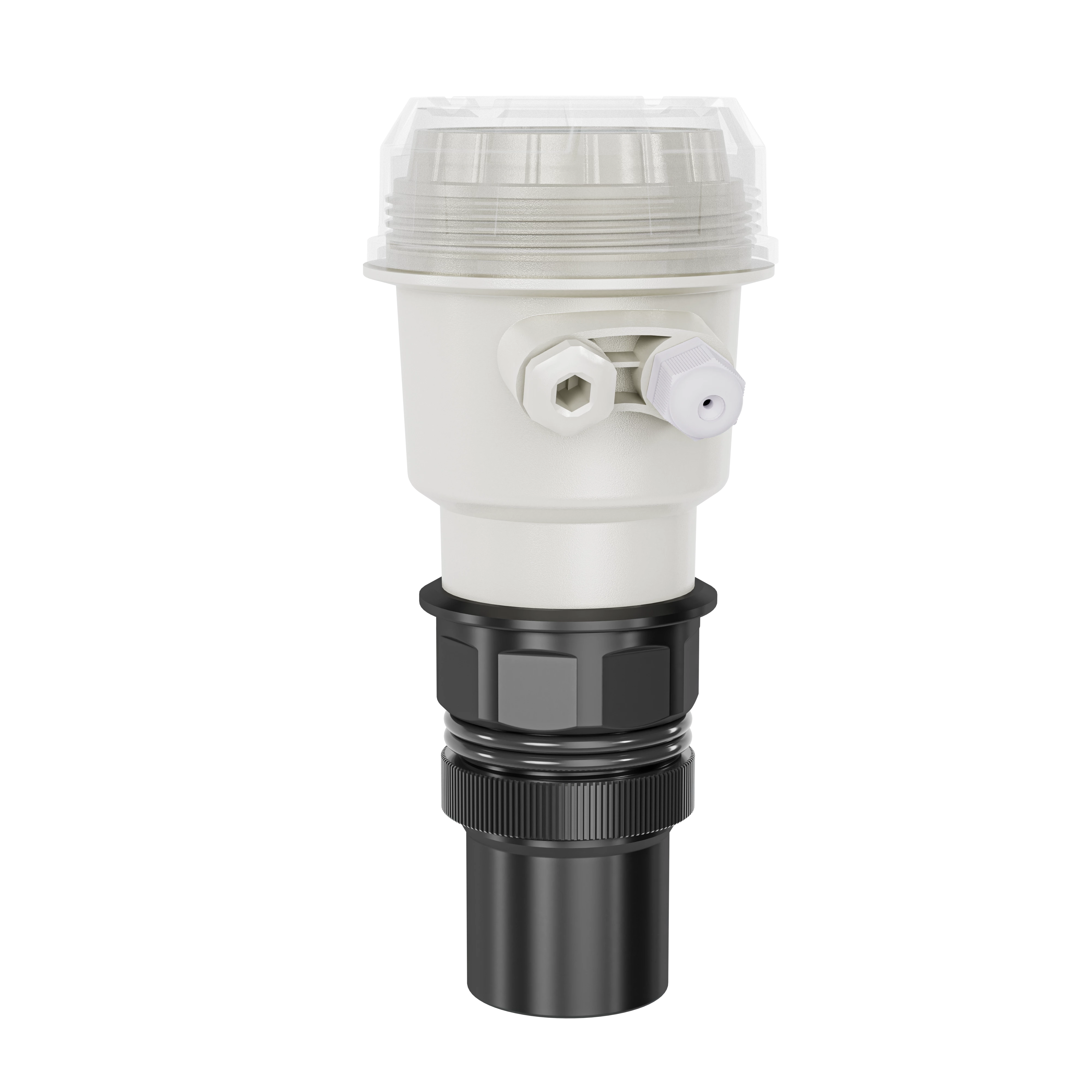

Introduction SUP-WSU300 ultrasonic level transmitter has perfect level monitoring, data transmission and man-machine communication. It is featured with strong anti-interference performance; free setti
Measure range: 0 ~ 10m
Blind zone: 0.35m
Accuracy: 0.5%F.S
Power supply: (18~28) VDC
With backlight
SUP-WSU300 ultrasonic level transmitter has perfect level monitoring, data transmission and man-machine communication. It is featured with strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication.
Ultrasonic level measurement is a non-intrusive and accurate method used to measure the level of liquids and solids in tanks, vessels, and pipes. This technique works by emitting high-frequency sound waves that travel through the medium being measured and reflect back to the sensor. The time it takes for the sound waves to travel back and forth is used to determine the distance between the sensor and the surface of the medium. This information is then processed by a digital signal processor to provide an accurate reading of the level. Ultrasonic level measurement is commonly used in applications where traditional level measurement technologies may not be suitable, such as corrosive or hazardous environments, or where the medium being measured is highly viscous or prone to foam.
| Product | Ultrasonic level transmitter |
| Model | SUP-WSU300 |
| Measure range | 5, 10m (others optional) |
| Blind zone | 0.35m |
| Accuracy | ±0.5%FS |
| Display | LCD |
| Output (optional) | 4-20mA RL＜500Ω |
| RS485 | |
| 2 relays | |
| Measuring variable | Level/Distance |
| Power supply | (18-28) VDC (others optional) |
| Power consumption | <1.5W |
| Protection degree | IP65(others optional) |
Backup and recovery parameter set
Free adjustment of the range of analog output
Custom serial port data format
Optional increment/difference distance measurement to measure air space or liquid level
1-15 transmitted pulse intensity depending on working conditions
