Specification Product Turbine flowmeter Model FLC240 Diameter Nominal DN4~DN200 Nominal Pressure 1.0MPa~6.3MPa Accuracy 0.5%R, 1.0%R Medium viscosity Less than 5×10-6m2/s (for the liquid with >5×10
Pipe diameter: DN4~DN200
Accuracy: 0.5%R, 1.0%R
Power supply: 3.6V lithium battery; 12VDC; 24VDC
Ingress protection: IP65
Specification
| Product | Turbine flowmeter |
| Model | SUP-FLC240 |
| Diameter Nominal | DN4~DN200 |
| Nominal Pressure | 1.0MPa~6.3MPa |
| Accuracy | 0.5%R, 1.0%R |
| Medium viscosity | Less than 5×10-6m2/s |
| (for the liquid with >5×10-6m2/s, | |
| the flowermeter needs to be calibrated before using) | |
| Medium Temperature | -20℃～＋120℃ |
| Power Supply | 3.6V lithium battery; 12VDC; 24VDC |
| Output Signal | Pulse, 4-20mA, RS485 Modbus |
| Ingress protection | IP65 |
Introduction

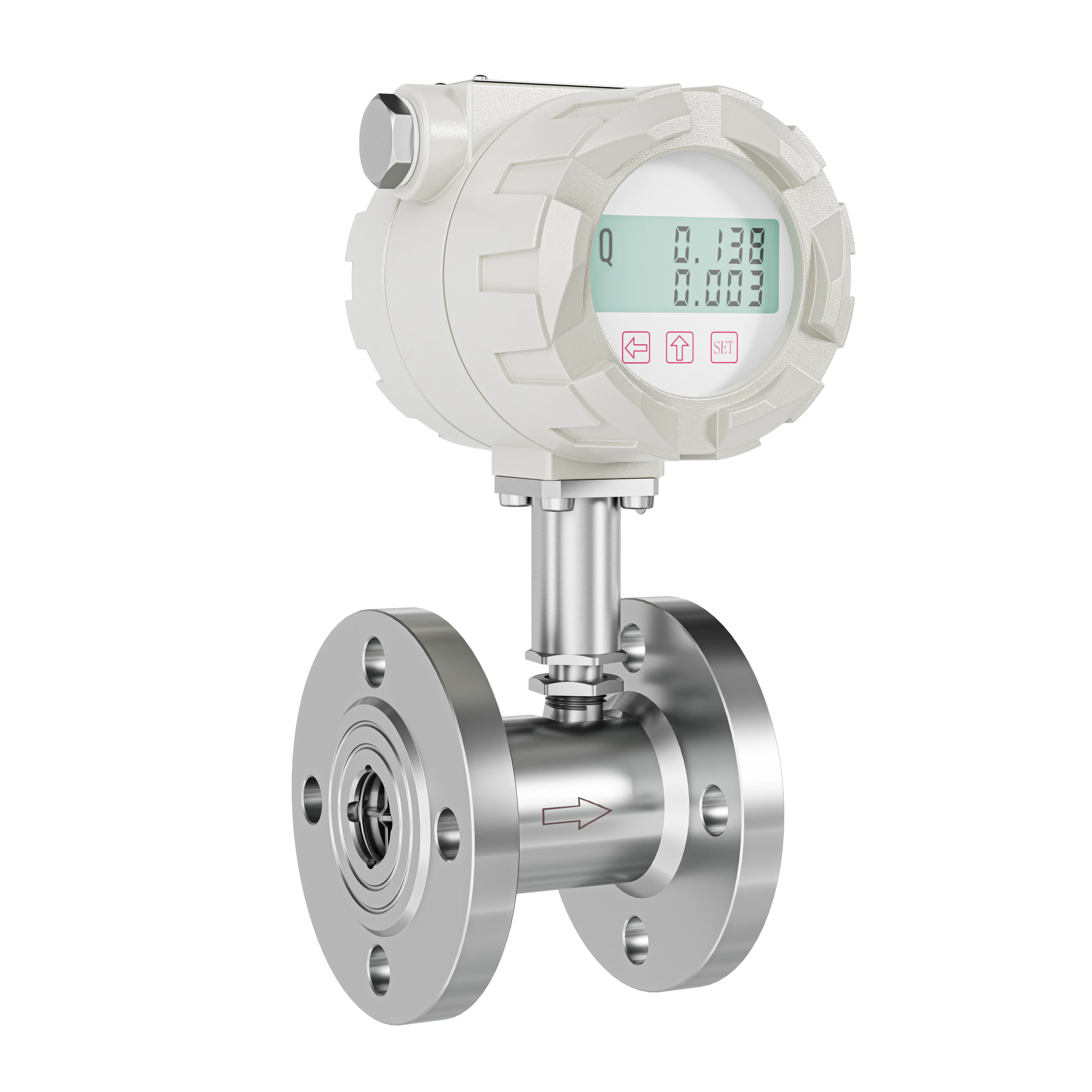

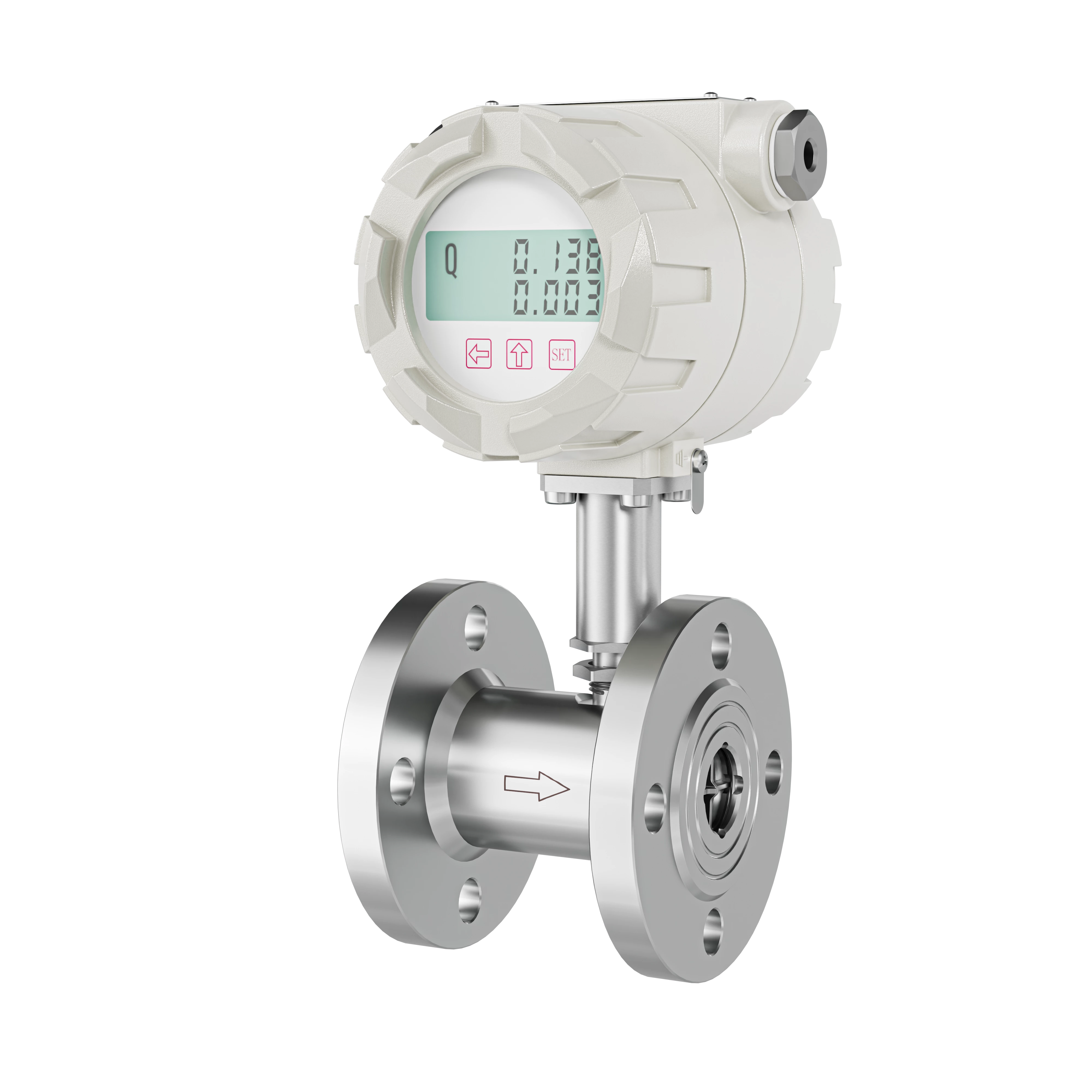

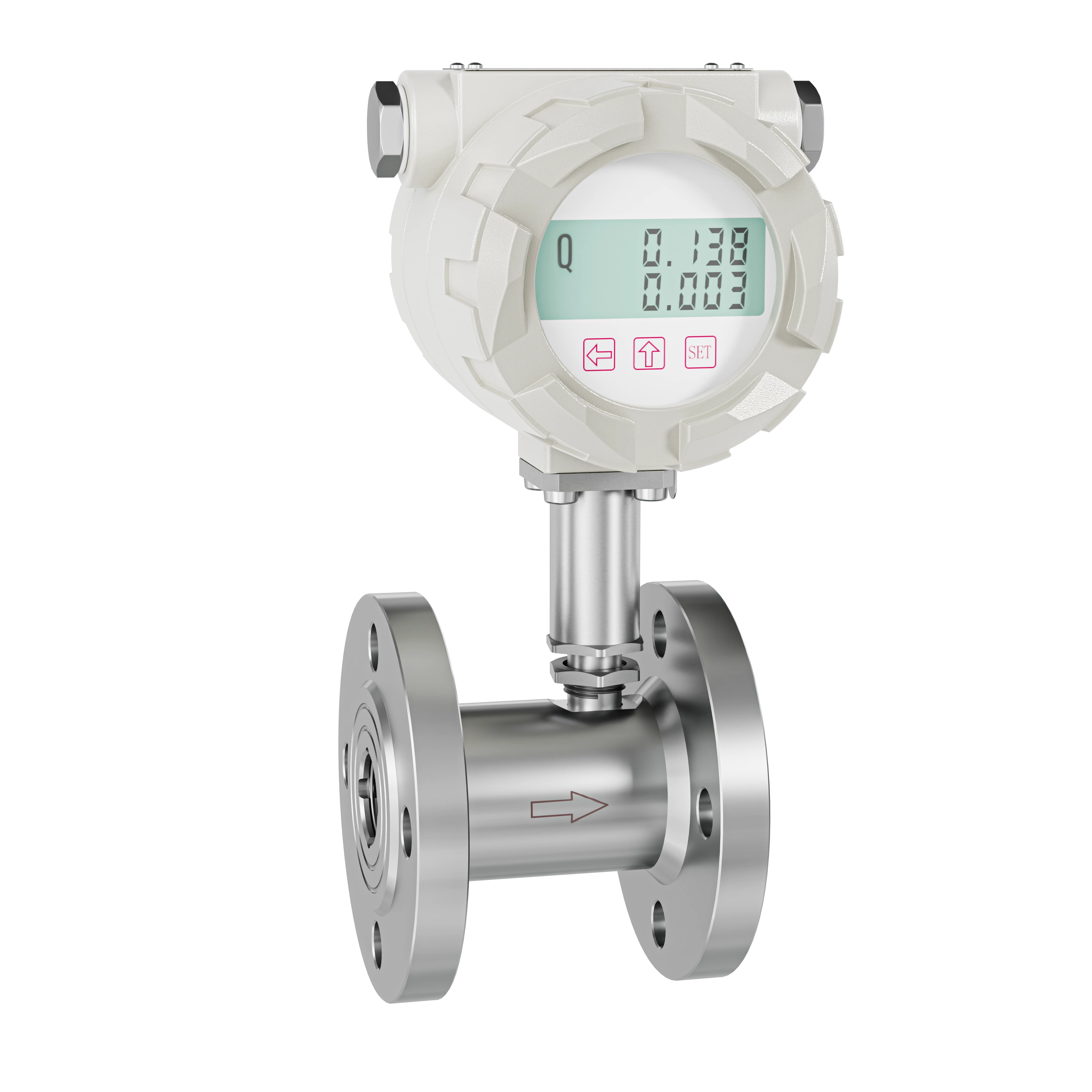

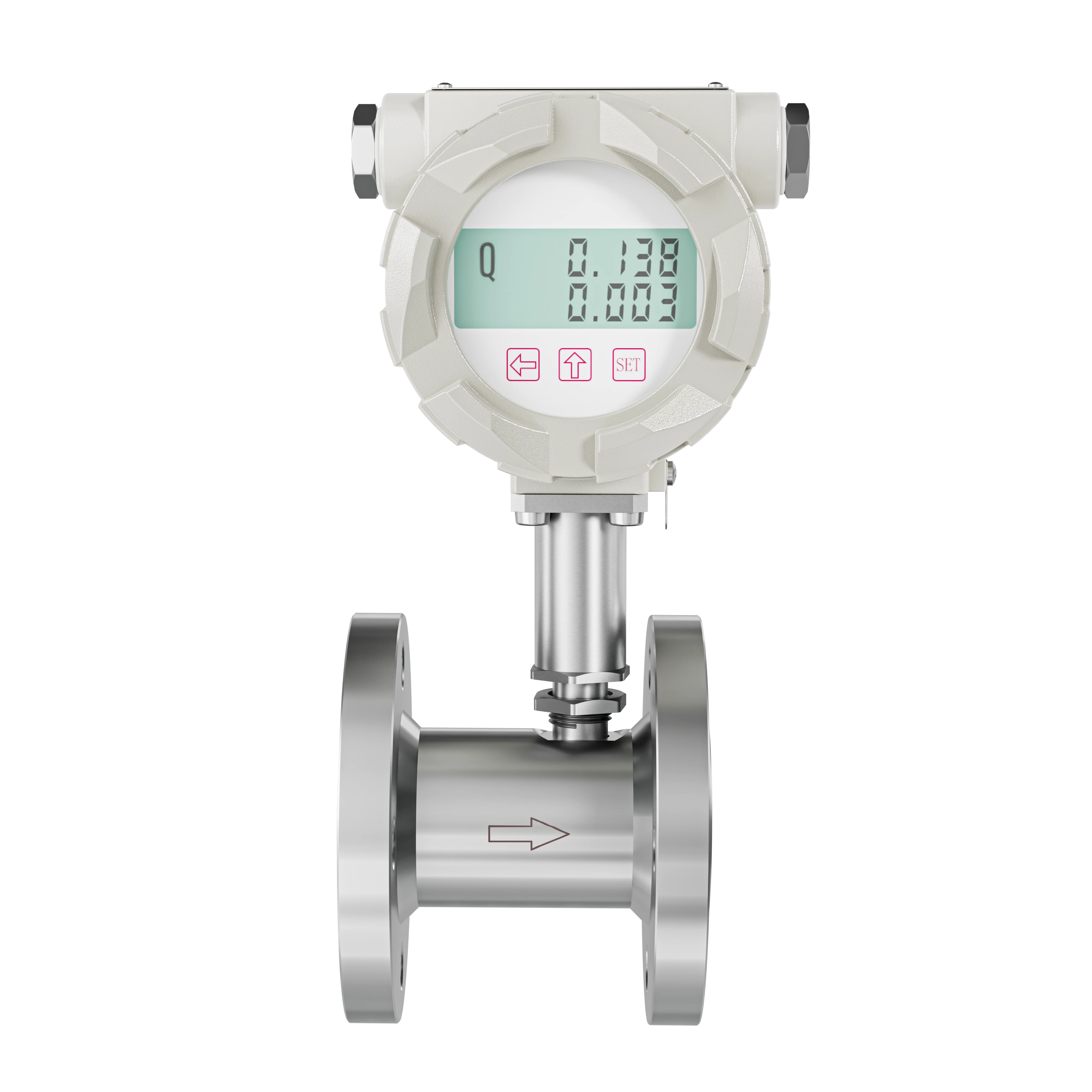

SUP-FLC240 series liquid turbine flowmeter is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance. It is used to measure the volume flow of low viscosity liquid in closed pipe.

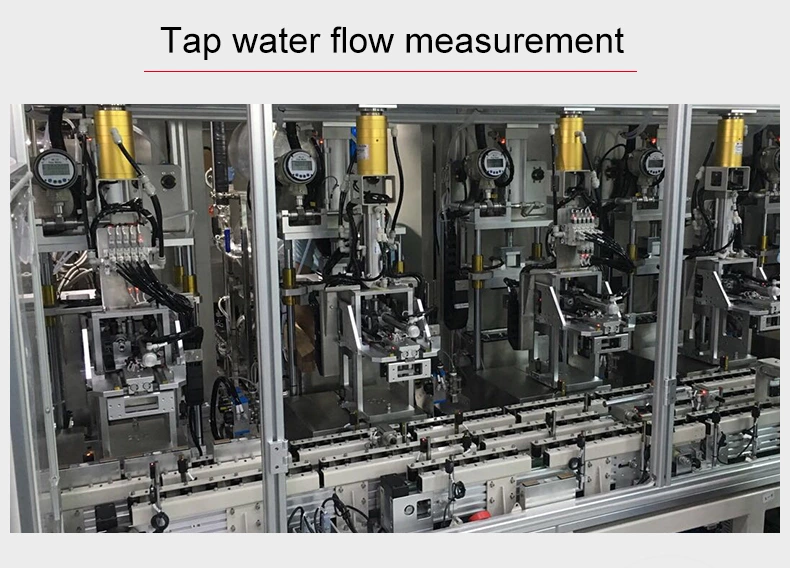

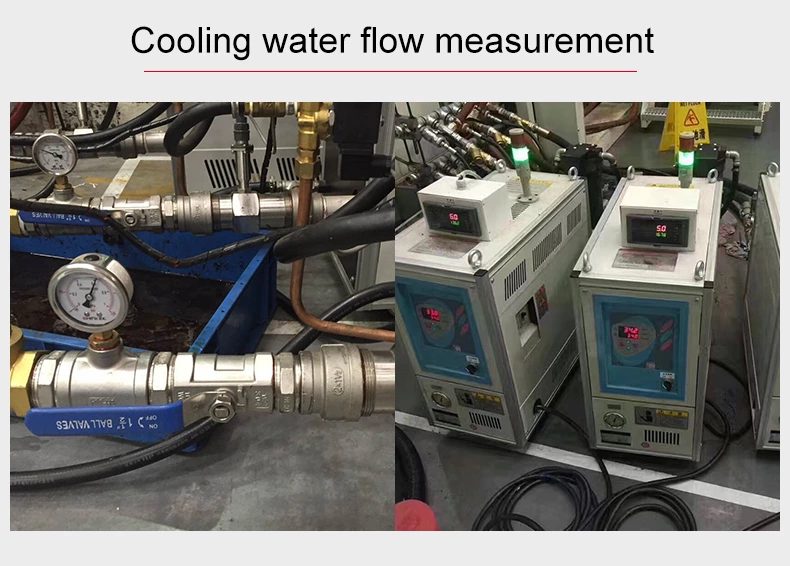

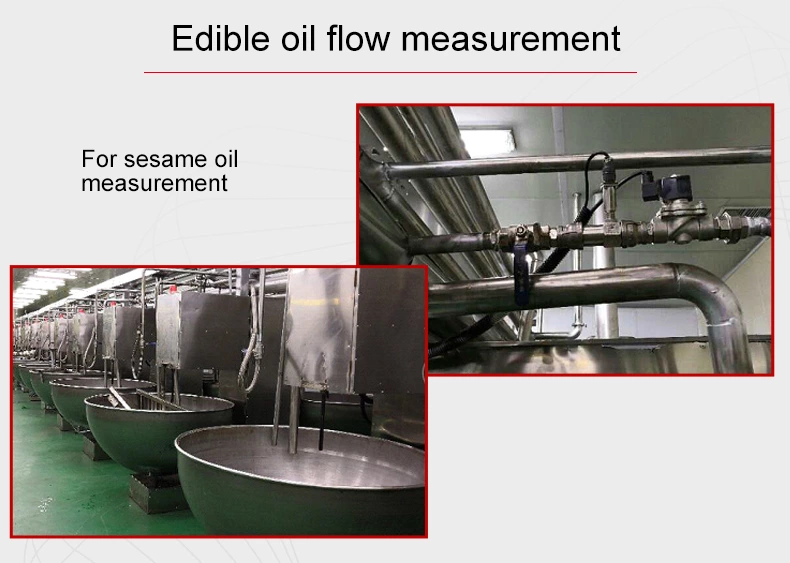

Application
Description
