Range: pH: (0～14)pH
ORP:(-2000～2000)mV
DO:(0～40)mg/L
TDS: (0～600)mS/cm
Turbidity: (0～4000)NTU
Suspended solids: (0～120000)mg/L
Output signal: 4~20mA; Relay; RS485
Power supply: AC：(100～240)VAC; DC：24VDC(Optional)
Specification
| Product | Liquid TSS/SS analyzing meter |
| Model | SUP-DC2000 |
| Dimension | 100mm*100mm*150mm |
| Range | pH: (0-14)pH ORP:(-2000-2000) mV DO:(0-40) mg/L TDS: (0-600) mS/cm Turbidity: (0-4000) NTU Suspended solids: (0-120000) mg/L |
| Relative humidity | (10~85)% |
| Temperature range | (0 ~ 60)℃ |
| Communication | RS485, Modbus-RTU |
| Signal output | 4-20mA, maximum loop 500Ω, 0.2%FS |
| Power supply | AC: (100-240)VAC DC: 24VDC(Optional) |
| Relay output | 250VAC, 3A |
Introduction

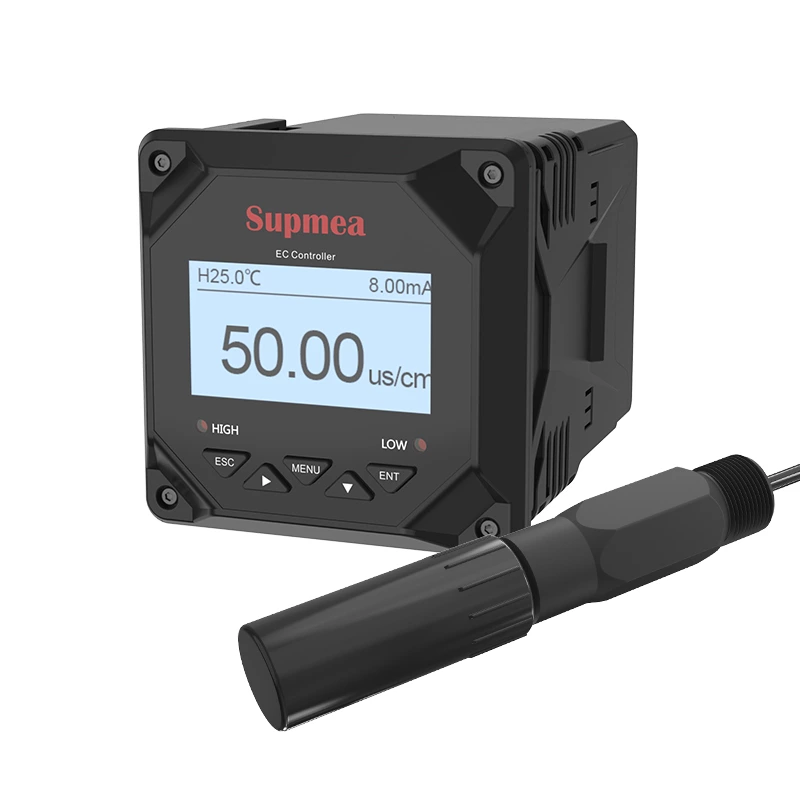

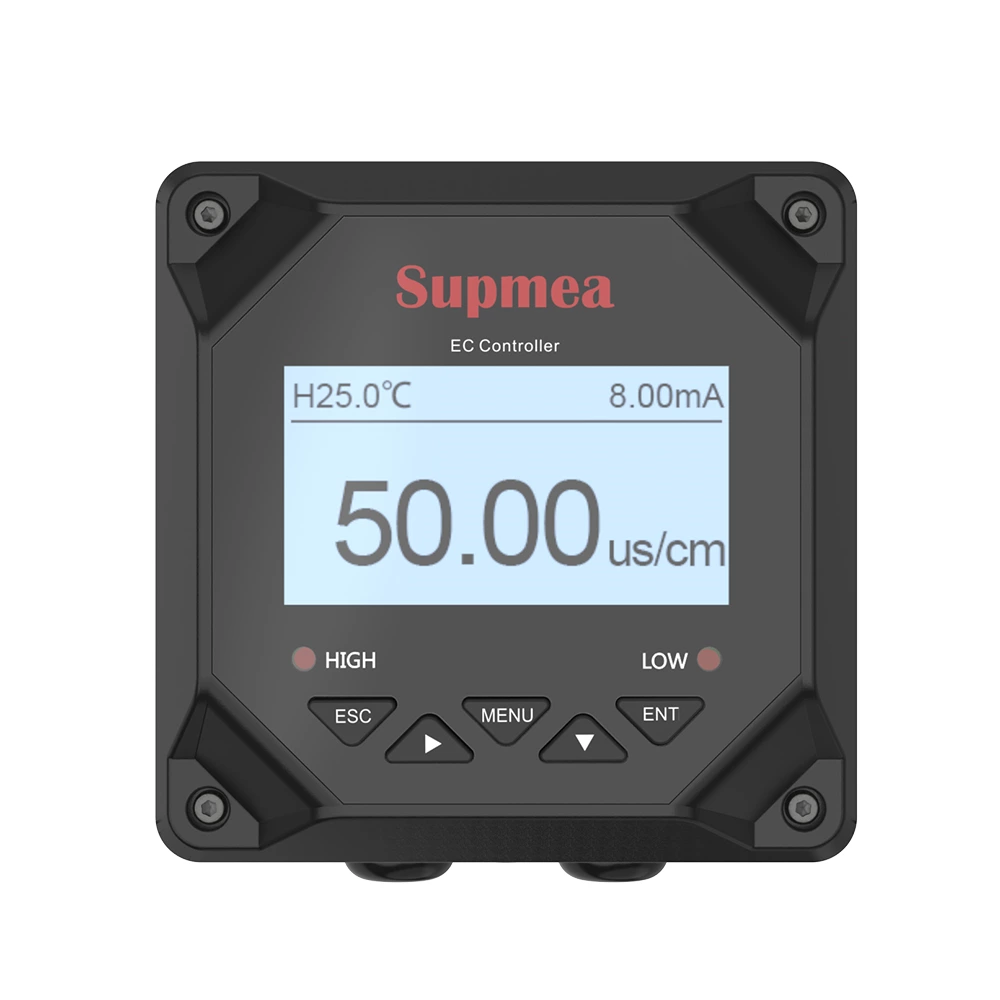

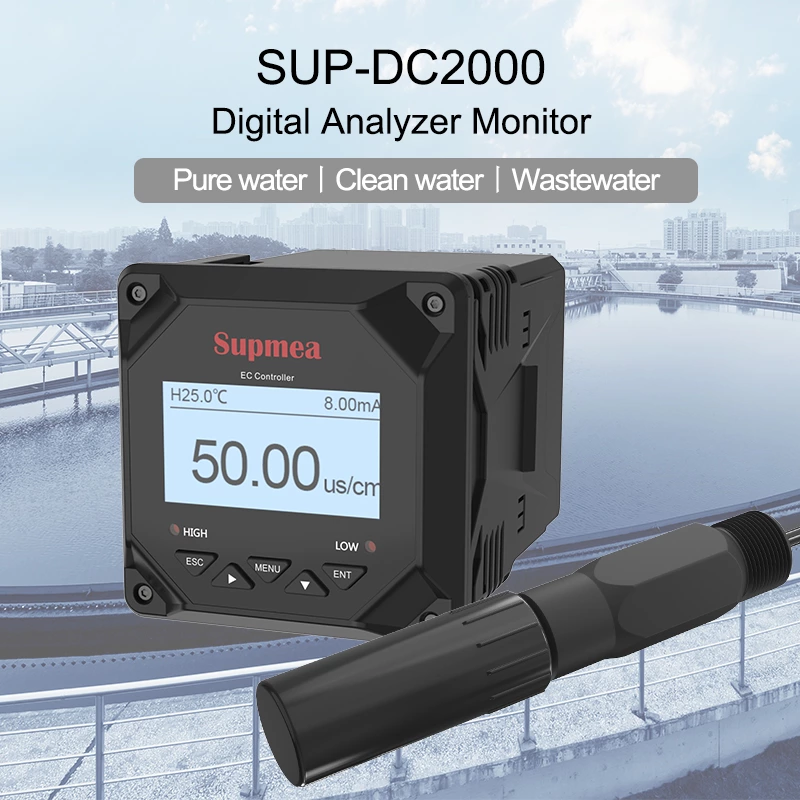

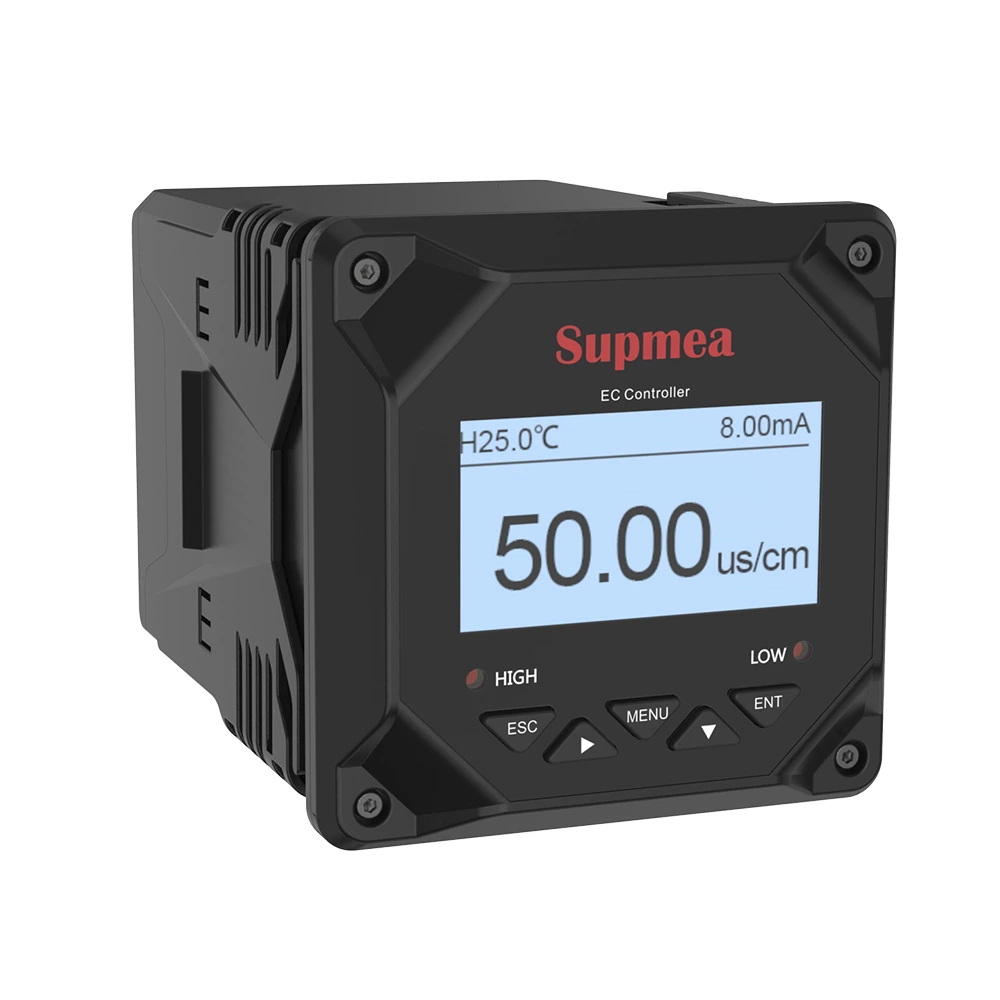

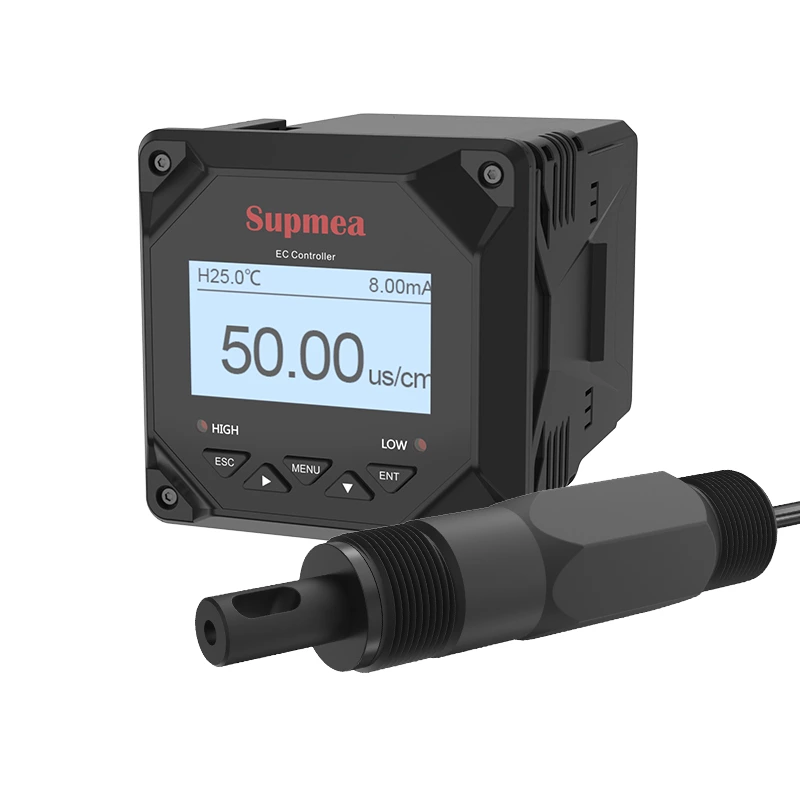

SUP-DC2000 Digital analyzer monitor is a general-purpose water quality controller. It is suitable for use with Supmea's multiple water quality series digital sensors. It is used to monitor water quality parameters including pH, ORP, conductivity, dissolved oxygen, turbidity, sludge concentration, etc.

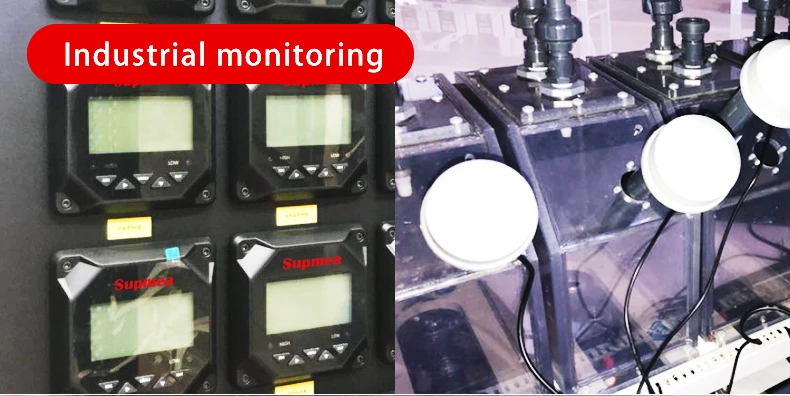

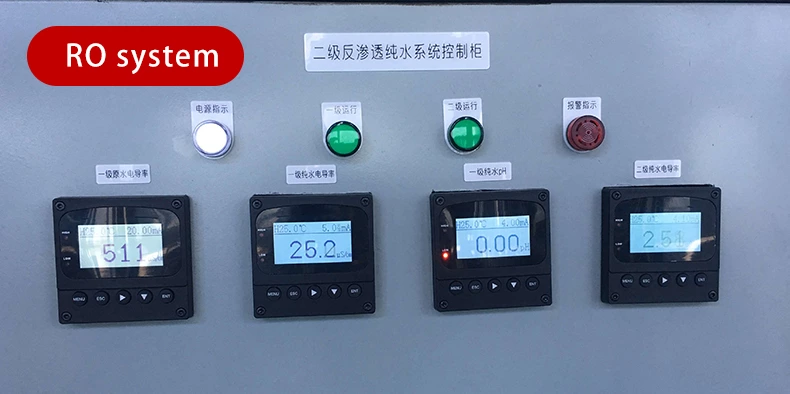

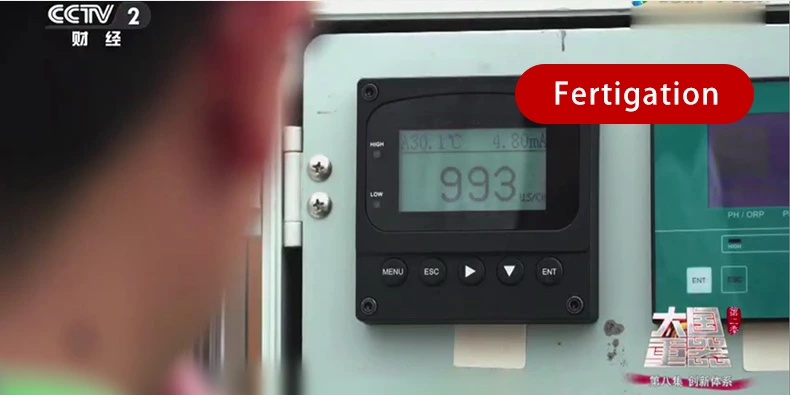

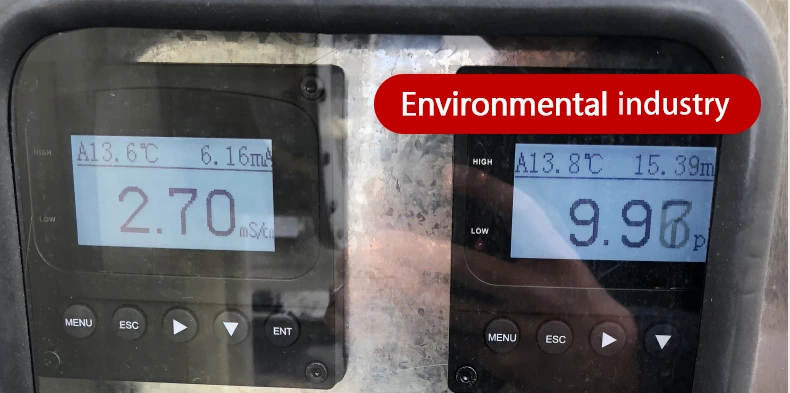

Application
Advantages
Isolating transmitting output, with little interference.
Isolating RS485 communication.
EC/TDS measurement, temperature measurement,
top/bottom limit control, transmitting output, RS485 communication.
Configurable manual and auto temperature offset function.
Configurable upper/lower limit warning and delay.
Configurable hummer and LCD backlight switch.
Addition of universal password.
Industrial controlled door keep, to avoid instrument halted.
Description
