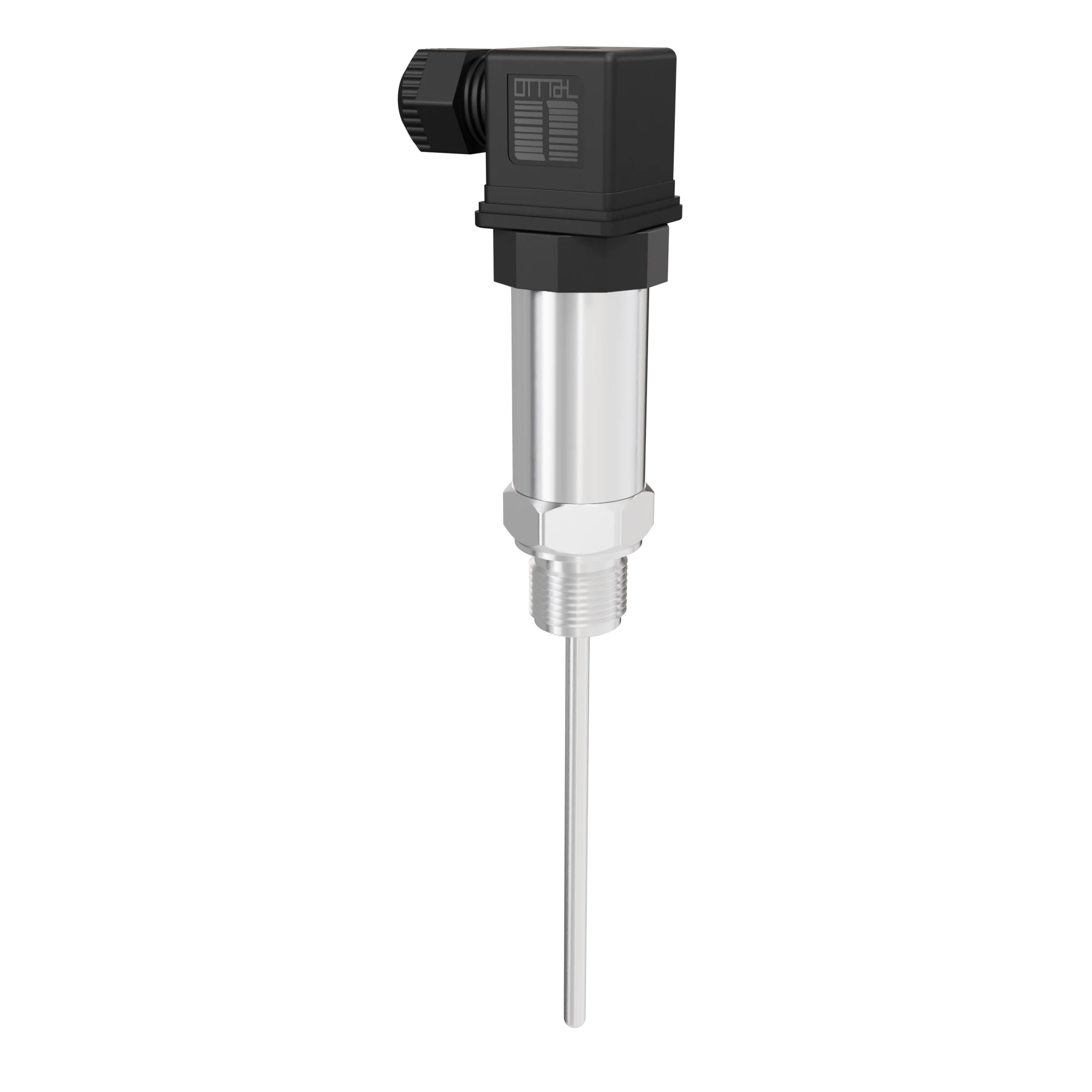

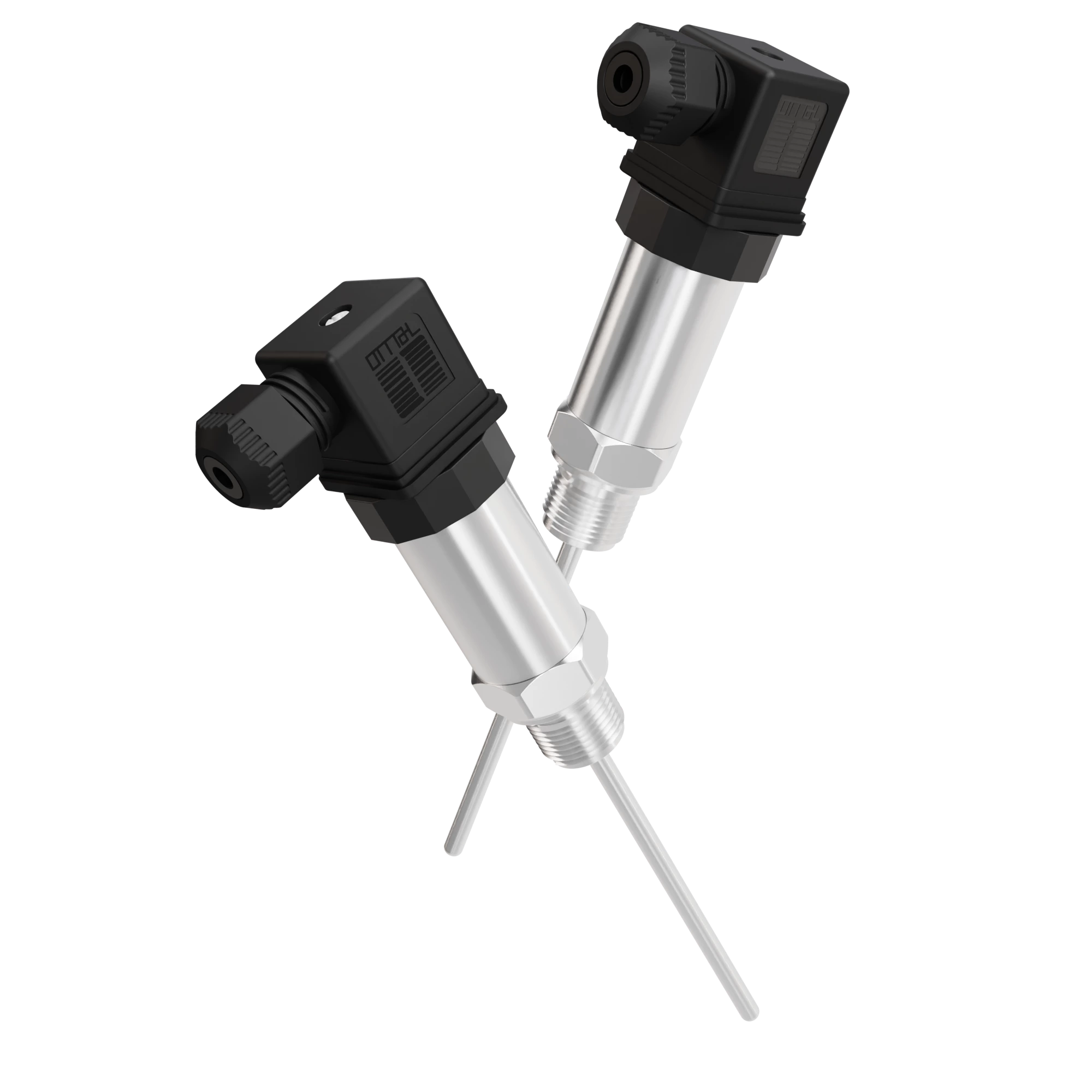

SUP-P202 Industrial Temperature Sensors

Industrial temperature sensors are crucial components in many industrial processes. These sensors are designed to measure temperature in harsh and challenging environments, where traditional temperature sensors may not be able to function. They are used in a wide range of industries, including oil and gas, chemical, automotive, and aerospace.

Characteristics

Compact structure and easy installation.
High stability and high reliability.
Anti-vibration, anti-radio frequency interference.
High precision, all stainless steel structure.
Strong anti-interference, good long-term stability.
Wide range.

Specification

Product name Industrial Temperature Sensors
Model SUP-P202
Power supply (4~20) mA Output: (9~30) V
RS485 output (5~30)V
Output (4~20) mA, RS485
Accuracy 0.5 %
Measuring range (-50-200) ℃
Ambient temperature (-40~85) ℃
Storage temperature (-40~85) ℃
Insulation resistance 20MΩ/250VDC
Dielectric strength 500V
Ingress protection IP65
Load resistance (U-9V)/0.02A, U: supply voltage

Introduction

Intelligent temperature transmitter, used for thermal resistance (RTD) input, two-wire (4~20) mA analog output, RS485 output. Built-in the latest ASSIC single-chip integrated circuit, using high-precision 24-bit ADC to convert into digital signals, the product has the characteristics of accurate measurement, stable operation, long service life, etc.

Industrial temperature sensors are used in a wide range of applications, including monitoring the temperature of machinery, measuring the temperature of chemical reactions, and monitoring the temperature of industrial ovens and furnaces. They are also used in automotive applications to monitor engine temperatures and in aerospace applications to monitor the temperature of aircraft engines.

Electrical connections

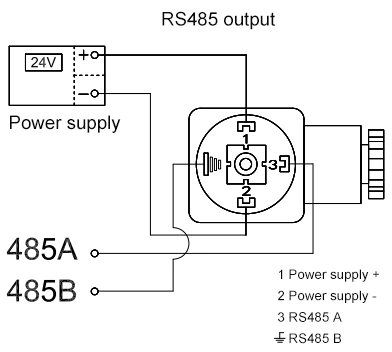

The electrical connection of the Herssman structure is as shown below.

SUP-P202 Industrial Temperature Sensors



SUP-P202 Industrial Temperature Sensors
