PM356 Pressure transmitter

Introduction PM356 Series pressure transmitter is kind of device based on pressure layer, which inside expert integrate circuit can transform sensor milli-volt signal to standard far distance transmis

Characteristics

Inquiry
Email us

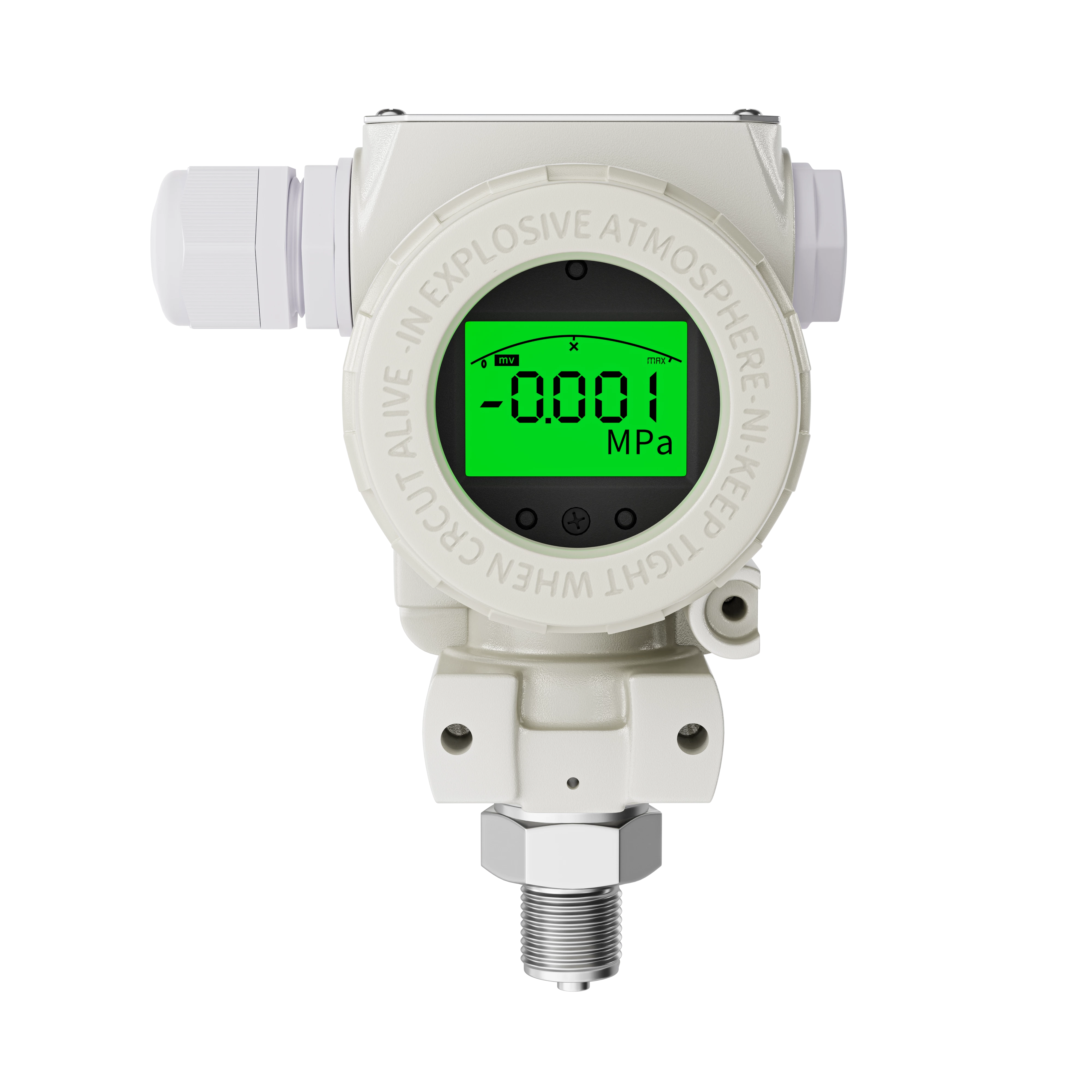

PM356 Pressure transmitter

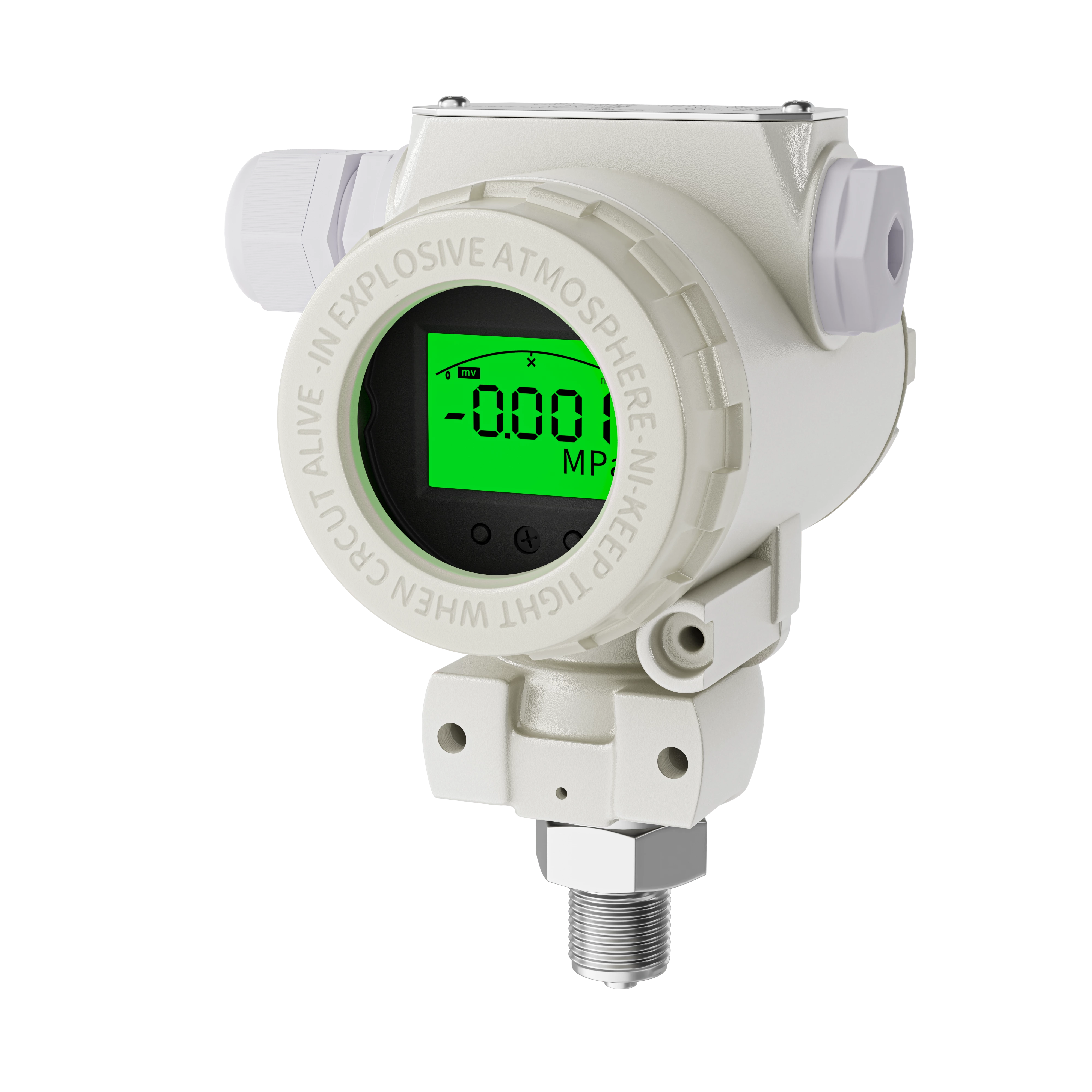

PM356 Pressure transmitter

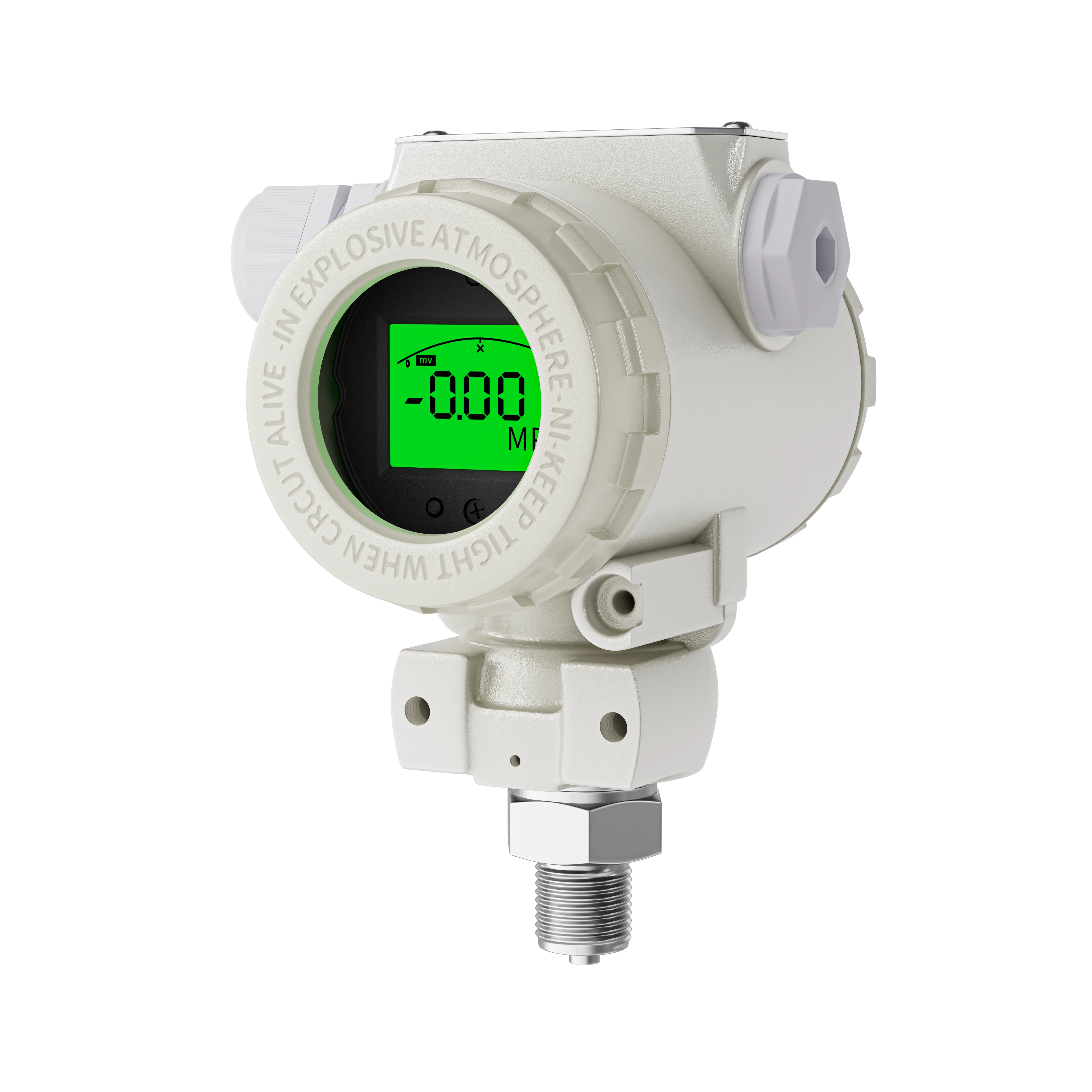

PM356 Pressure transmitter

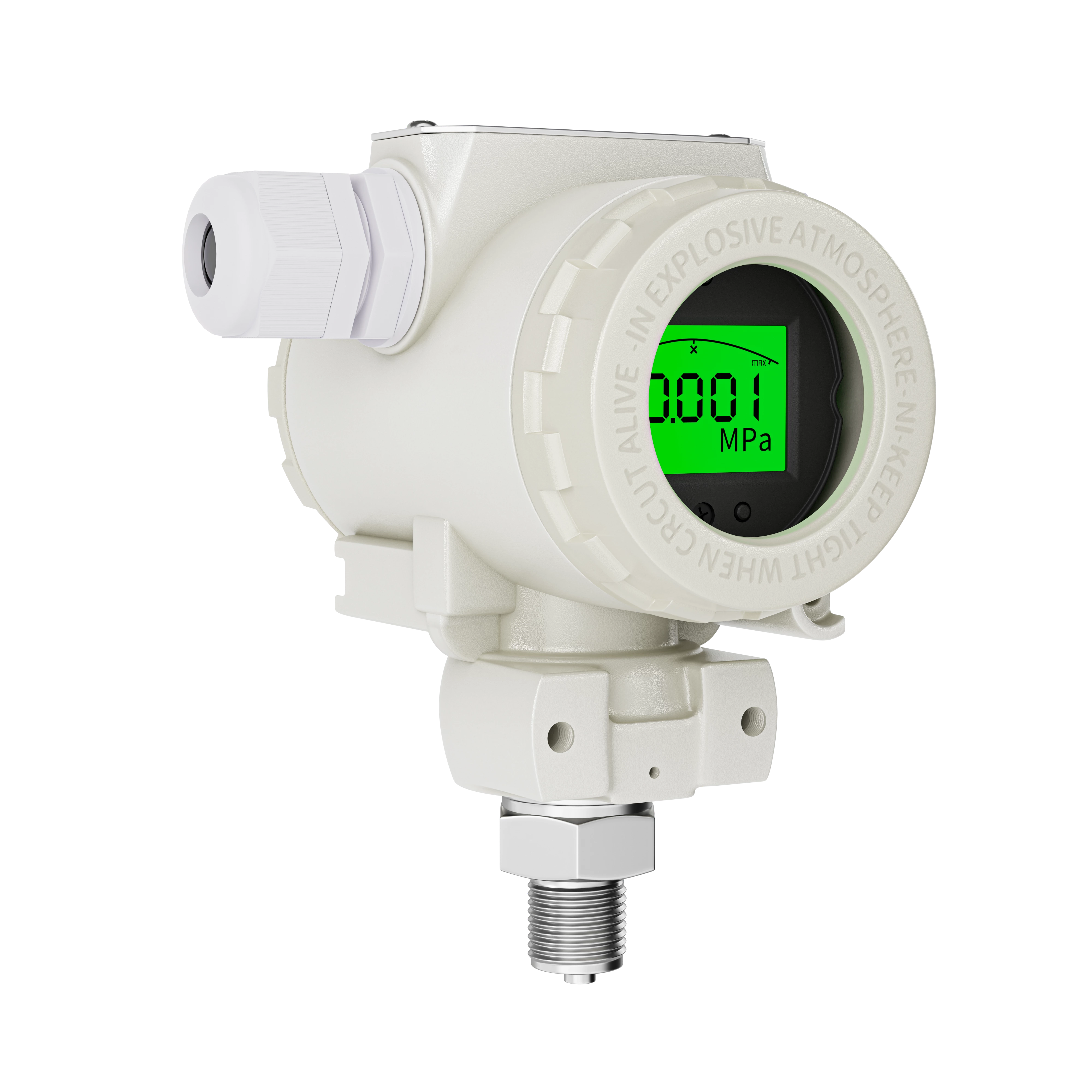

PM356 Pressure transmitter

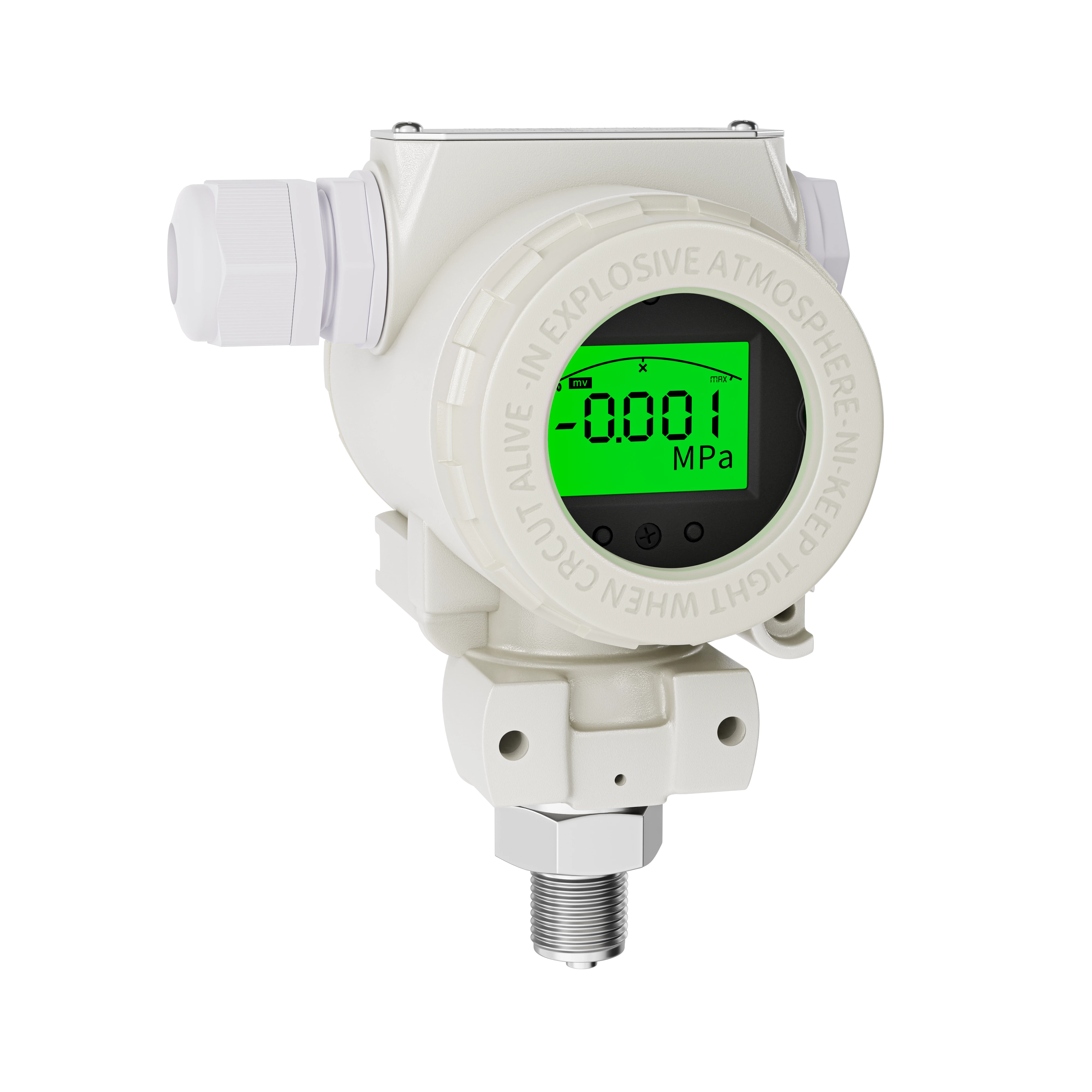

PM356 Pressure transmitter
  • Introduction
    PM356 Series pressure transmitter is kind of device based on pressure layer, which inside expert
    integrate circuit can transform sensor milli-volt signal to standard far distance transmission current
    signal, and it can be directly joined with computer joint clip, control instrument ,aptitude instrument or
    PLC etc. conveniently



  • Parameters
Power Supply 12V~32V ((4~20)mA with display
10V~32V ((4~20)mA+RS485,with display)
9V~32V ((4~20)mA,without display)
Output (4-20)mA(1~5)V:(0-10)V:(0-~5)V:RS485
Accuracy 0.2%、0.25%、0.5%
Measurement range -0.1.0.60pa
Pressure type Gauge pressure,adiabatic pressure and sealed pressure
Compensation temperature -10℃70℃
Working temperature -20℃-85℃
Medium temperature -20℃-85℃
Storage temperature -40℃-85℃
Zero-point temperature drift ±0.3%FS/10℃
Sensitivity temperature drift ±0.3%FS/10℃
Overload pressure (0.035-10)MPa(150%FS):(10~-60)MPa(125%FS)
Long-term stability ±0.2%FS/year
Response time RS485 outputs100ms (up to 90%FS)
Current and Voltage outputs10ms (up to 90%FS)
Insulation 20M2/250VDC
Ingress protection IP65
Load Resistance (U-9V0/0.02A
