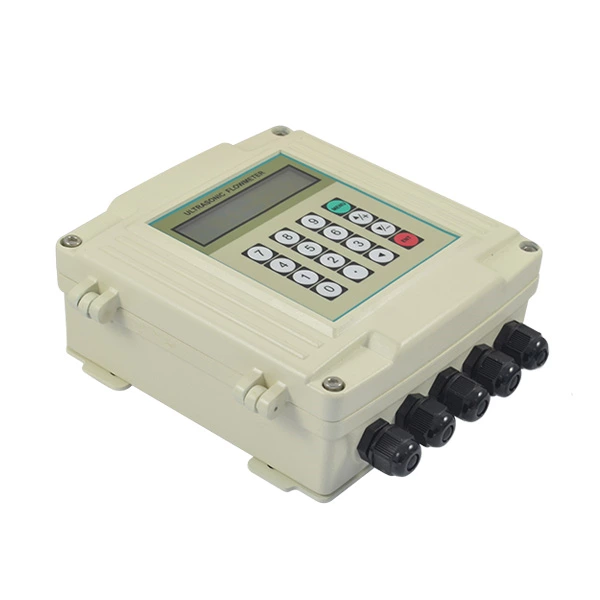

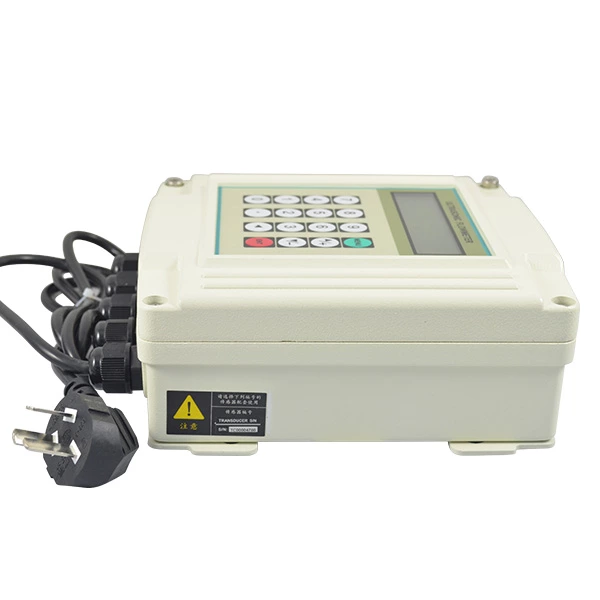

SUP-1158S Wall mounted ultrasonic flowmeter

SUP-1158S Wall mounted clamp on ultrasonic flow meter uses advance circuit design,coupled with excellent hardware designed in English and can be switched surfaces.It is easy to operate and with stable performance.

Characteristics

Pipe diameter: DN32-DN6000

Accuracy: ±1%

Power supply:  10~36VDC/1A

Output: 4~20mA, relay, RS485

  • Specification
 Product Wall-mounted (clamp on) ultrasonic flowmeter
 Model SUP-1158S
 Pipe Size DN32-DN6000
 Accuracy ±1%
 Signal output 1 way 4-20mA output
1 way OCT pulse output
1 way replays output
 Interface RS485, support MODBUS
 Liquid Types Virtually all liquids
 Working Temperature Convertor: -20~60℃; Flow Transducer: -30~160℃
 Working humidity Convertor: 85%RH
 Power Supply DC8~36V or AC85~264V(optional)
 Date Logger Built-in data logger can store over 2000 lines of data
 Case Material ABS
 Dimension 170*180*56mm(Convertor)



  • Introduction

The clamp on ultrasonic flow meter is a non-invasive device that measures the flow rate of a fluid by using ultrasonic waves. This type of flow meter is particularly useful for applications where the fluid is difficult to access or where it is not possible to interrupt the flow.

SUP-1158S Wall-mounted Ultrasonic flow meter uses advanced circuit design coupled with excellent hardware designed in English for liquid flow detection and comparison testing in pipes. It has the characteristics of simple operation, convenient installation, and stable performance.

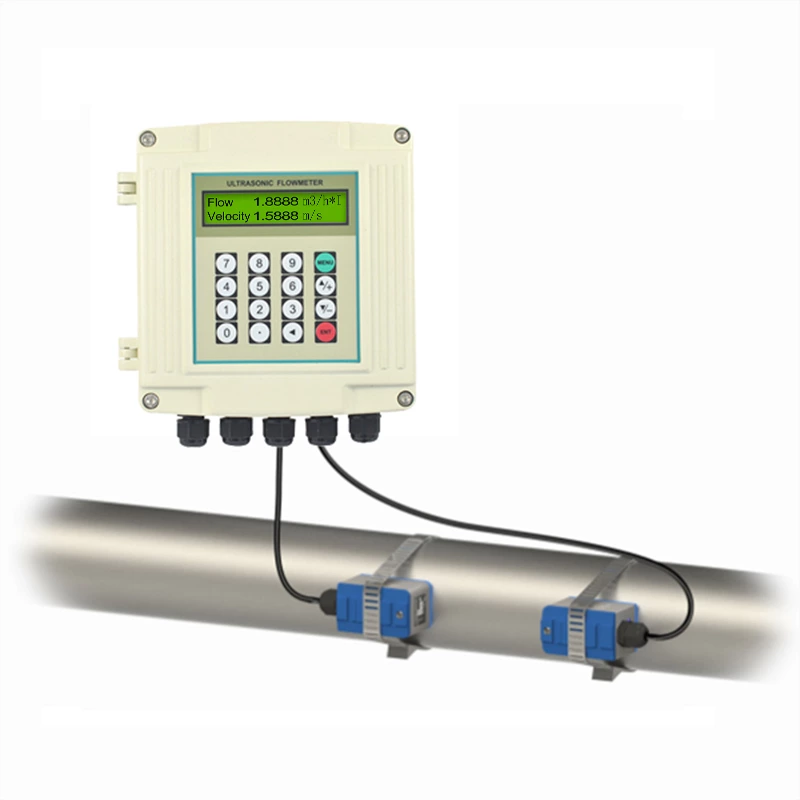

The SUP-1158S clamp-on ultrasonic flow meter consists of two main components: the transducers and the electronics. The transducers are attached to the outside of the pipe and emit ultrasonic waves into the fluid. These waves are then reflected back to the transducers, and the time it takes for them to travel is measured. By using the speed of sound in the fluid, the flow rate can be calculated.

One of the main advantages of the clamp-on ultrasonic flow meter is that it does not require any cutting or drilling of the pipe, which can be expensive and time-consuming. The installation process is quick and easy, and the device can be removed and reinstalled on another pipe if needed.

Another advantage of a clamp-on ultrasonic flow meter is that it can be used for a wide range of fluids, including liquids and gases. It is also accurate and reliable, with a high level of repeatability.

In summary, the SUP-1158S clamp-on ultrasonic flow meter is a valuable tool for measuring the flow rate of fluids in applications where traditional flow meters are not suitable. Its non-invasive design, ease of installation, and versatility make it a popular choice for many industries.

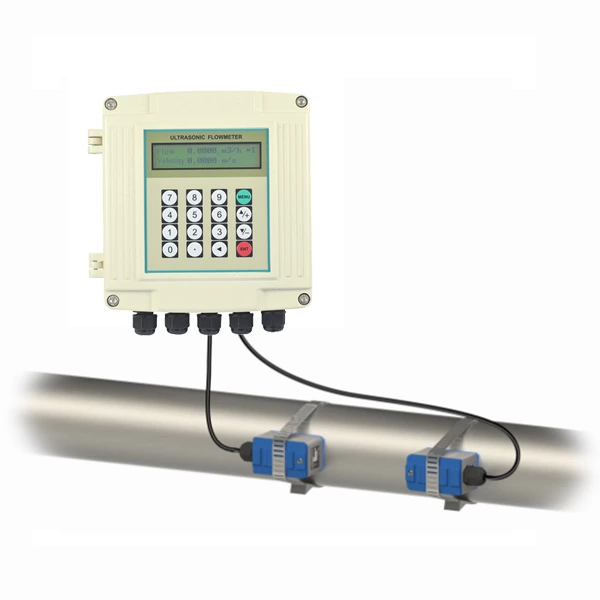

Supmea Wall mounted & clamp on ultrasonic flow meter
