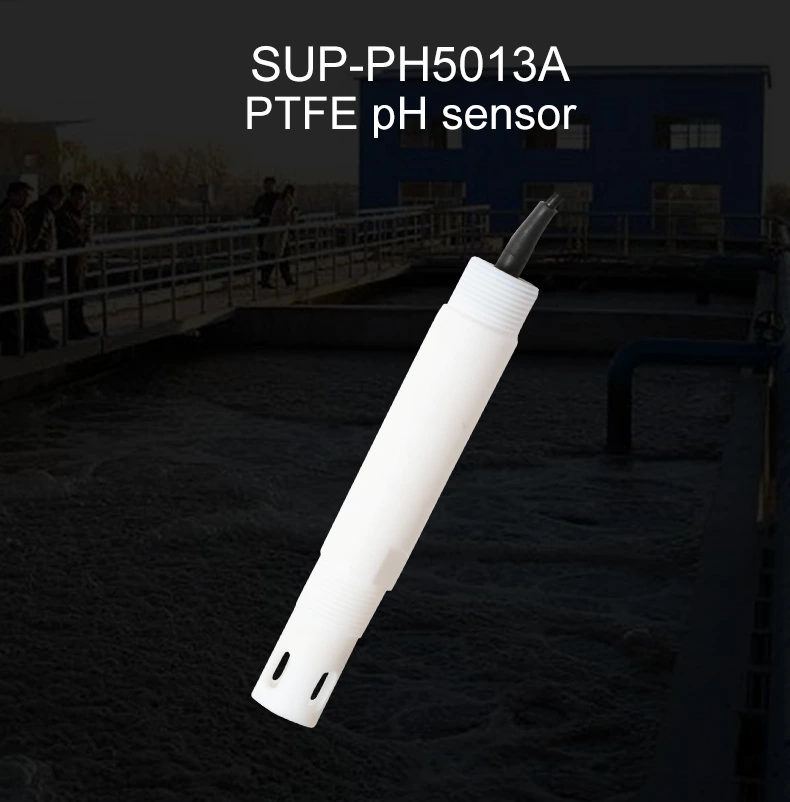

SUP-PH5013A PTFE pH sensor for corrosive medium

SUP-pH-5013A pH sensor used in PH measurement is also called primary cell. The primary battery is a system whose function is to convert chemical energy into electrical energy. The voltage of this battery is called electromotive force (EMF). This electromotive force (EMF) consists of two half-cells.

Characteristics

Zero potential point: 7 ± 0.5 pH

Conversion coefficient: > 95%

Installation size:  3/4NPT

Pressure: 1 ~ 4 Bar at 25 ℃

Temperature: 0 ~ 60℃ for general cables

  • Specification

  Product    PTFE pH sensor
  Model   SUP-PH5013A
  Measurement range   0 ~ 14 pH
  Zero potential point   7 ± 0.5 pH
  Slope   > 95%
  Internal impedance   150-250 MΩ(25℃)
  Practical response time   < 1 min
  Installation size   Upper and Lower 3/4NPT Pipe Thread
  Temp compensation   NTC 10 KΩ/Pt100/Pt1000
  Heat resistance   0 ~ 60℃ for general cables
  Pressure resistance    3 bar at 25 ℃
  Connection   Low-noise cable
  • Introduction

PTFE ph sensor

  • Application

Industrial wastewater engineering
Process measurements, electroplating plants, paper industry, drinks industry
Wastewater containing oil
Suspensions, varnishes, media containing solid particles
Two-chamber system for when electrode poisons are present
Media containing fluorides (hydrofluoric acid) up to 1000 mg/l HF
