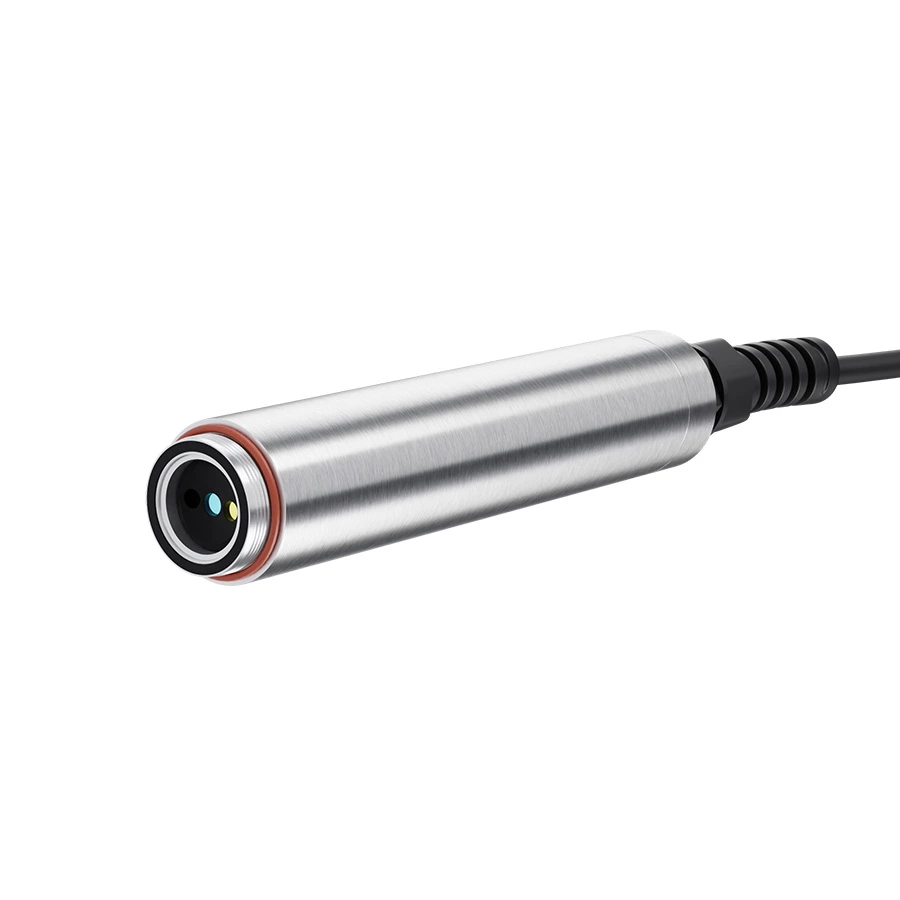

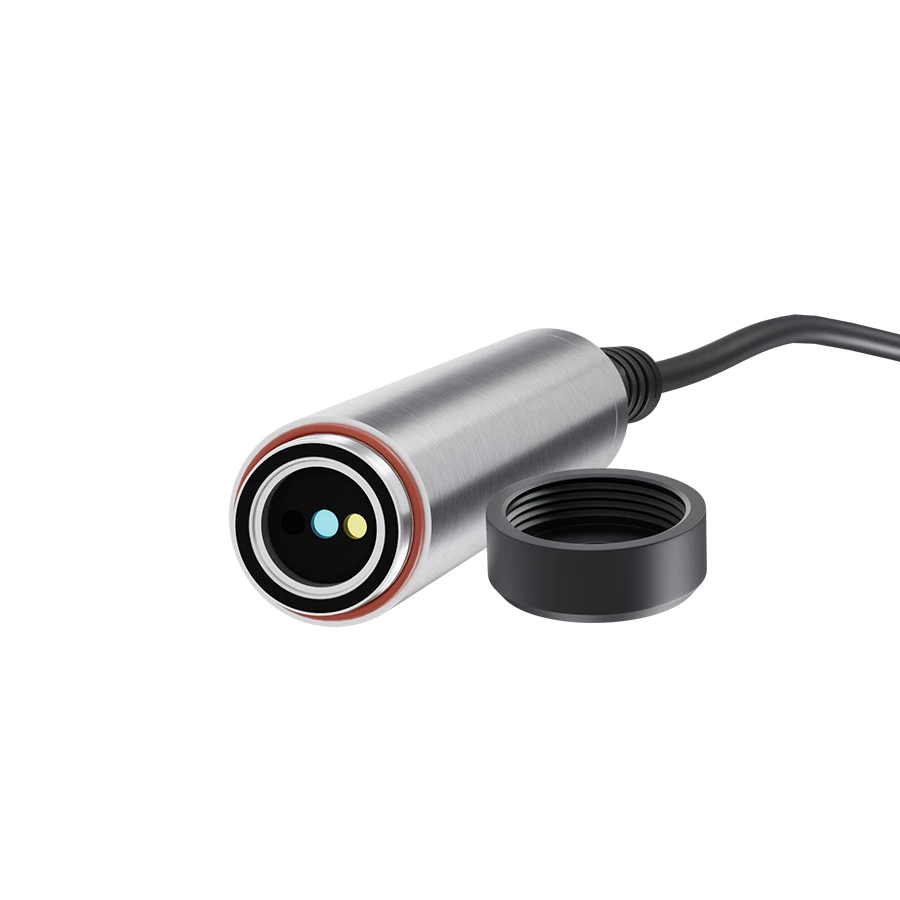

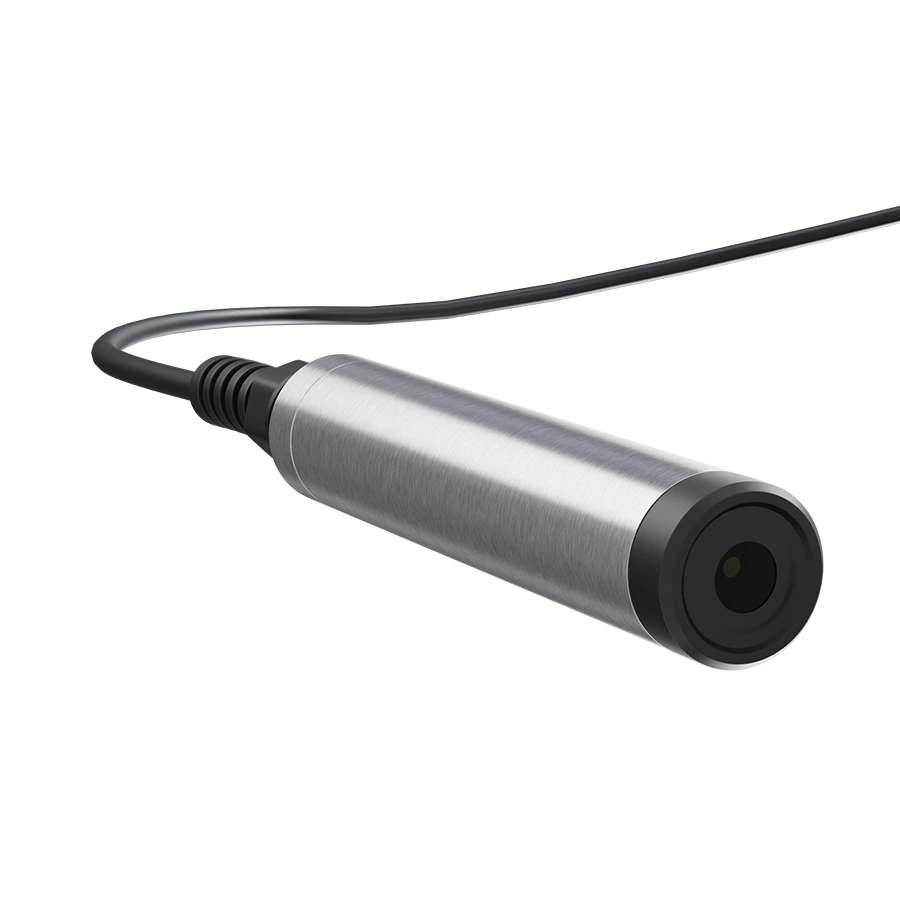

SUP-DO7017 Optical dissolved oxygen sensor

DO7017 Optical dissolved oxygen sensor is widely used in DO on-line monitoring of various technological processes such as regulating pools, biochemical ponds, and effluent in sewage treatment plants; DO on-line monitoring in waterworks, surface water, water in various industrial production processes, aquaculture and other industries.

Characteristics

Range: 0.00 to 20.00 mg/L

Accuracy:3%

Resolution: 0.01

Signal interface: Modbus RS-485

  • Specification

  Product   Dissolved Oxygen sensor
  Model  SUP-DO7017
  Accuracy  Dissolved oxygen: measured value ±3% or ±0.3mg/L
Temperature: ±0.5℃
  Measure range  Dissolved oxygen: (0~20) mg/L or 0~200% saturation
Temperature: (0~45)℃
  Resolution  0.01
  Power supply  (10-25) VDC
  Operating temperature   0°C to 45°C (unfrozen)
  Stocking temperature  -15°C to + 60°C
  Signal interface  Modbus RS-485
  Repeatability  ±0.3
  Ingress protection  IP68/NEMA6P
  Material  Stainless steel 316L
  Maximum pressure  0.1 MPa
  Cable  10m (standard),100m(optional)
  • Introduction

SUP-DO7017 Optical dissolved oxygen sensor is widely used in DO on-line monitoring of various technological processes such as regulating pools, biochemical ponds, and effluent in sewage treatment plants; DO on-line monitoring in waterworks, surface water, water in various industrial production processes, aquaculture and other industries.

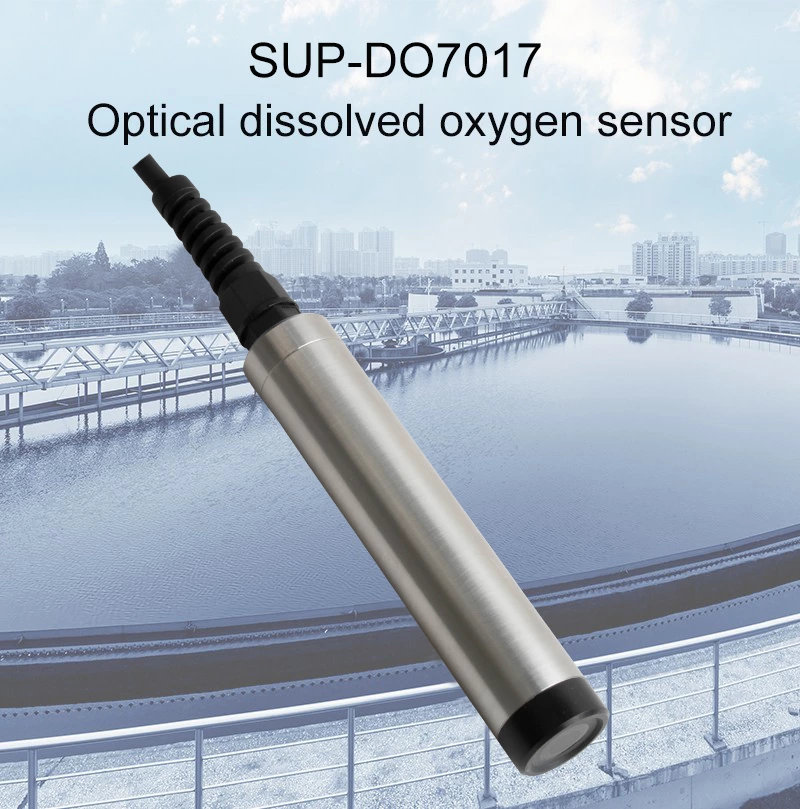

SUP-DO7017 Optical dissolved oxygen sensor
