Specification

Product	Sanitary type electromagnetic flowmeter (magnetic flow meter)

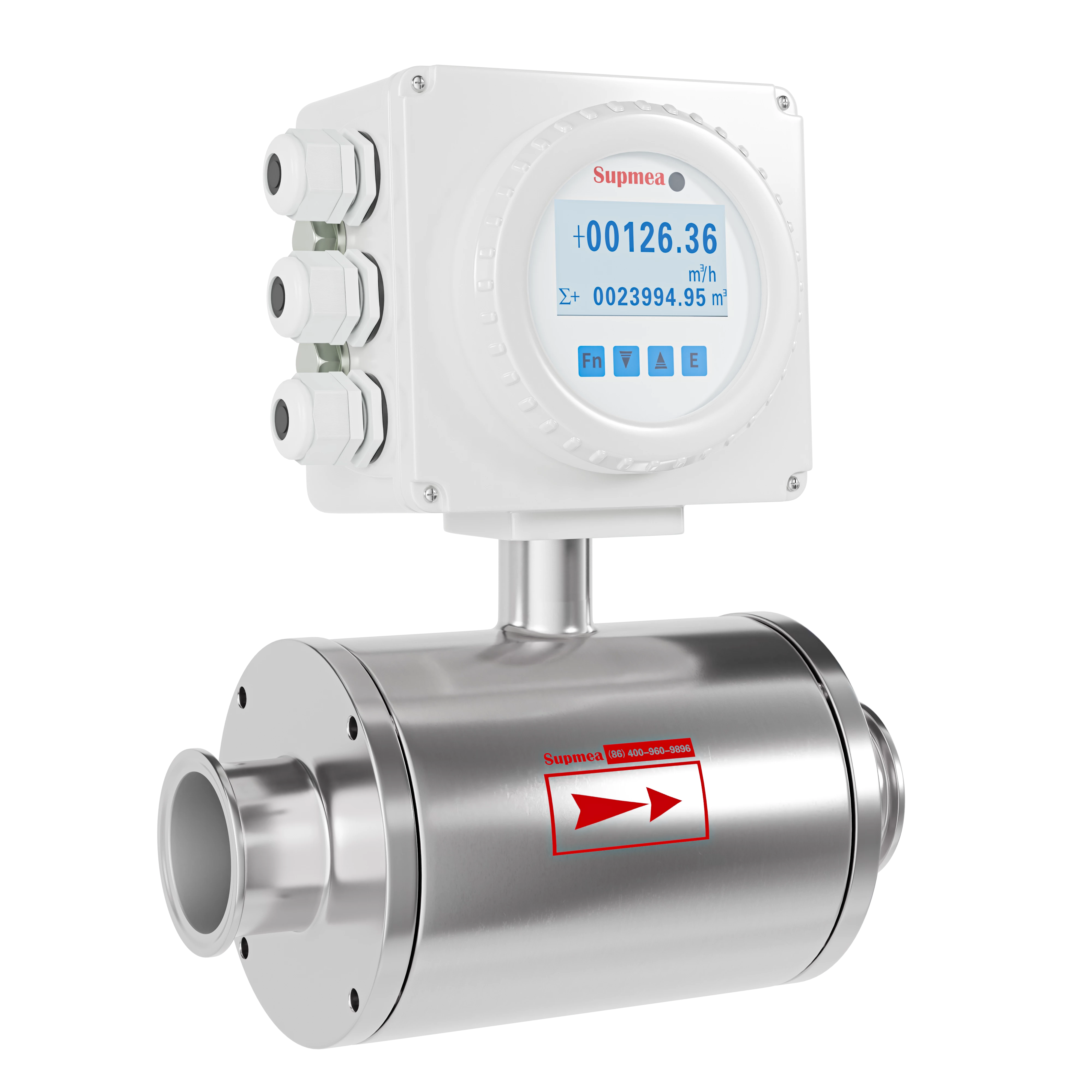

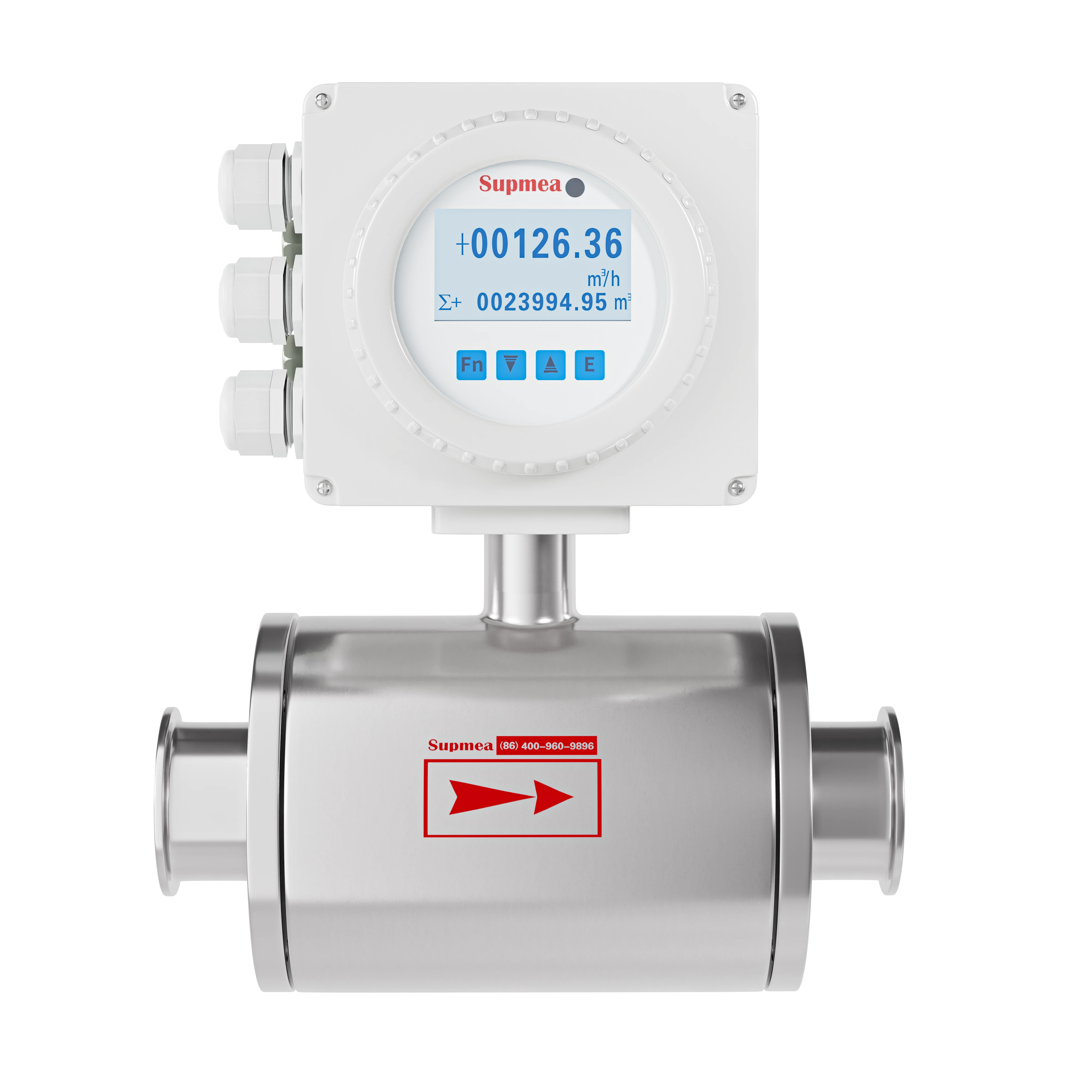

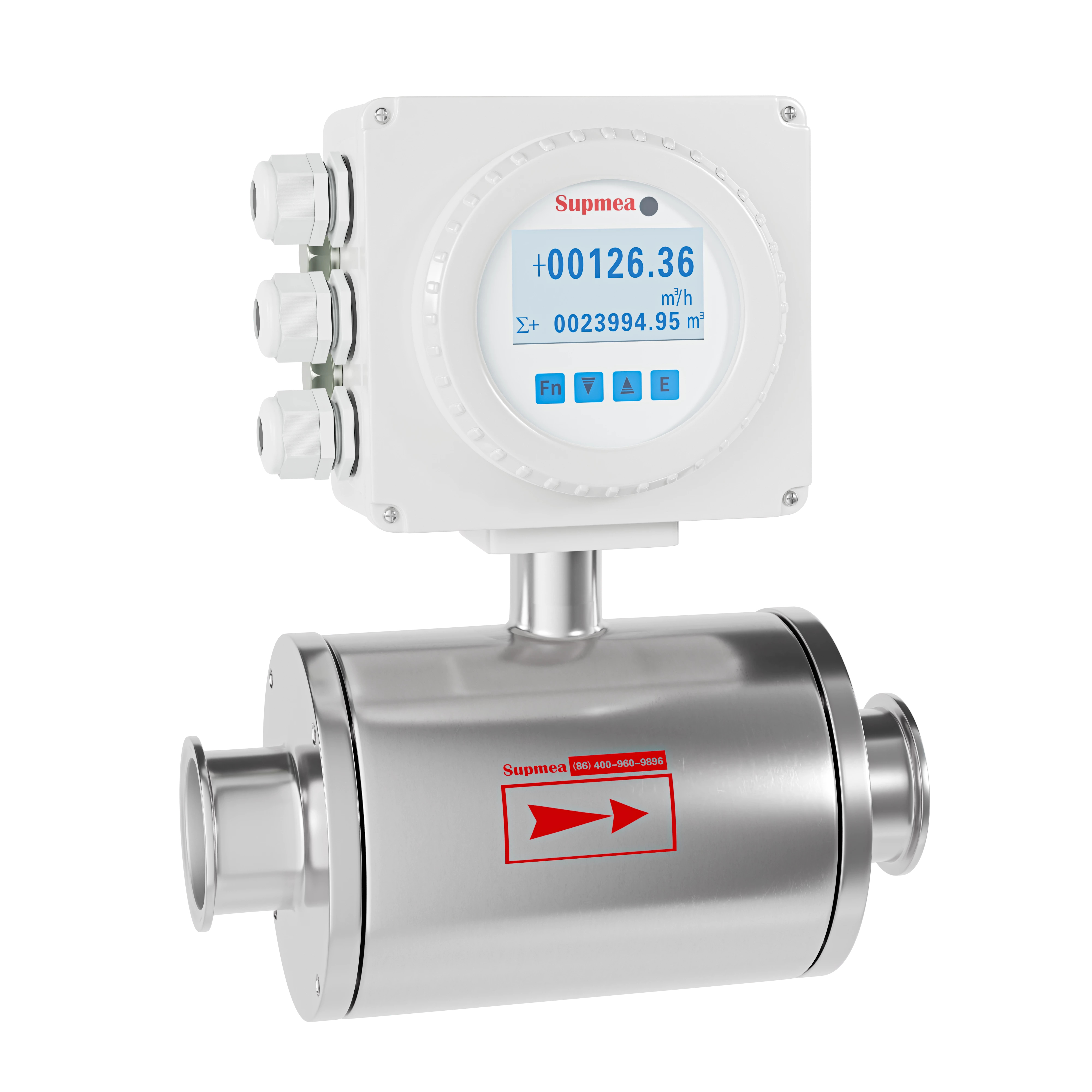

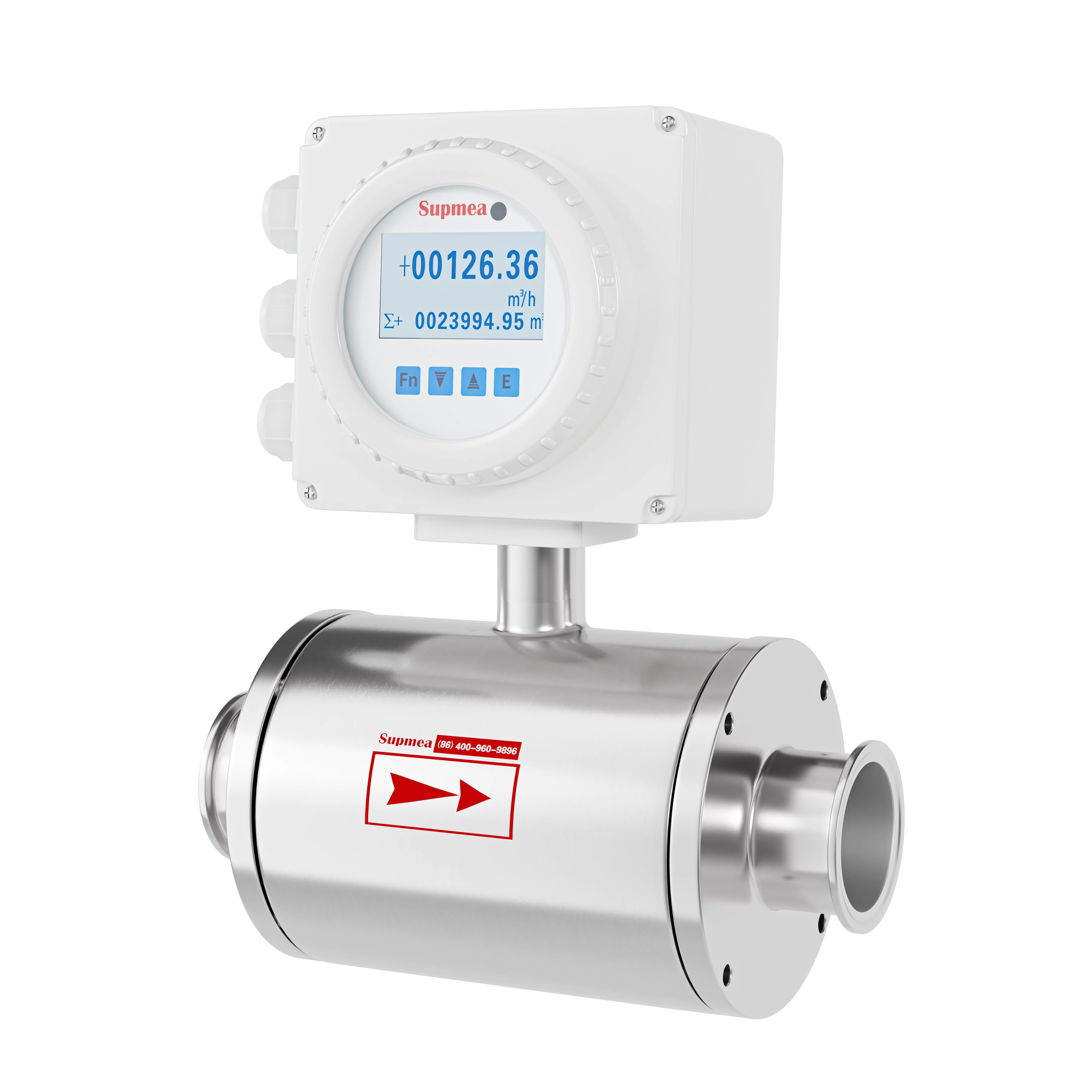

Model	SUP-FMC240
Diameter nominal	DN15~DN100
Nominal pressure	0.6~4.0MPa
Accuracy	±0.5%，±2mm/s(flowrate<1m/s)
Repetitiveness	0.2%
Liner material	PFA, F46, Neoprene, PTFE, FEP
Electrode material	Stainless steel SUS316L, Hastelloy C, Titanium,
	Tantalum, Platinum-iridium
Medium temperature	Integral type: -10℃~80℃
	Split type: -25℃~180℃
Ambient temperature	-10℃~55℃
Power supply	100-240VAC，50/60Hz / 22VDC—26VDC
Electrical conductivity	Water 20μS/cm other medium 5μS/cm
Ingress protection	IP65, IP68(optional)
Product standard	JB/T 9248-2015

Measuring principle

Mag meter works based on Faraday's law, and measure conductive medium with conductivity more than 5 μs/cm and flow range from 0.2 to 15 m/s. An Electromagnetic Flowmeter is a volumetric Flowmeter that measures the flow velocity of a liquid through a pipe.

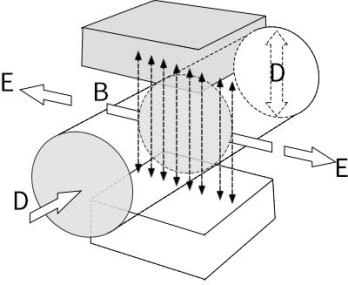

The measurement principle of magnetic flowmeters can be described as follows: when the liquid goes through the pipe at the flow rate of v with a diameter D, within which a magnetic flux density of B is created by an exciting coil, the following electromotive E is generated in proportion to flow speed v:

E=K×B×V×D

Where:
E－Induced electromotive force
K－Meter constant
B－Magnetic induction density
V－Average flow speed in cross-section of measuring tube
D－Inner diameter of measuring tube

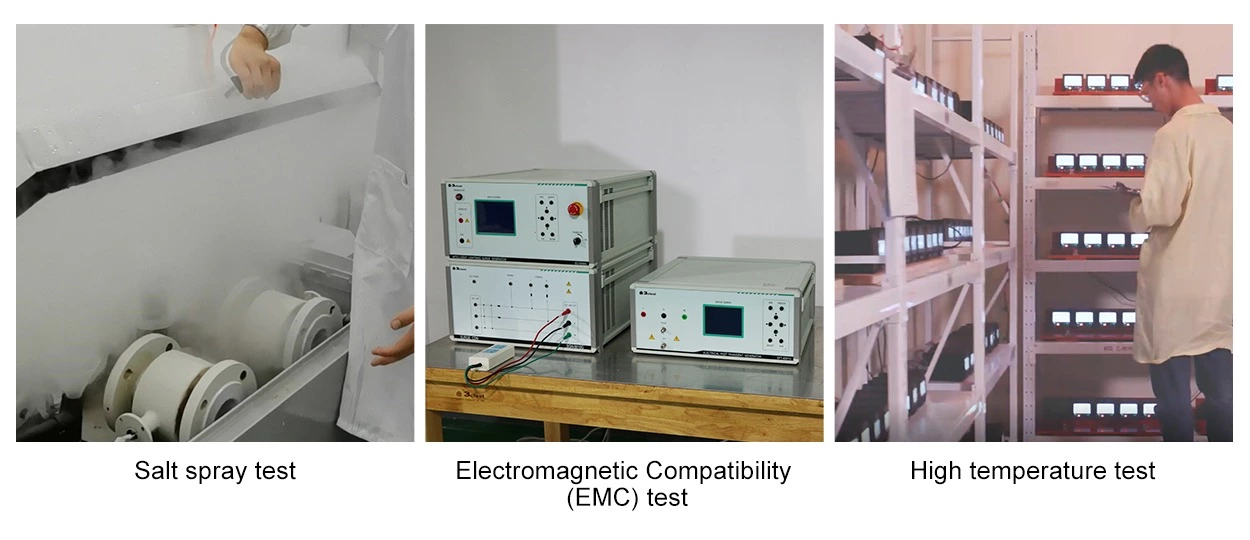

Introduction

SUP-FMC240 sanitary electromagnetic flowmeter is applicable for all food grade conductive liquid measure, such as drinking water, food processing, pharmaceutical industry and many others. Typical applications are monitoring accurate measurements in liquid, metering and custody transfer.

The SUP-FMC240 Sanitary Electromagnetic Flowmeter is an ideal solution for food processing applications where hygiene and accuracy are crucial. This flowmeter is designed to measure the flow of conductive liquids in a sanitary environment, making it the perfect choice for food and beverage processing plants.

The magnetic flow meter uses advanced electromagnetic technology to accurately measure the flow of liquids, ensuring that the product is of the highest quality. The SUP-FMC240 is designed to be easy to install, operate, and maintain, making it a cost-effective solution for food processing plants of all sizes.

One of the key benefits of the SUP-FMC240 Sanitary Electromagnetic Flowmeter is its ability to accurately measure the flow of liquids in a wide range of temperatures and viscosities. This makes it an ideal choice for food processing applications where the product being measured may vary in temperature or viscosity.

The SUP-FMC240 Sanitary Electromagnetic Flowmeter is also designed to be extremely hygienic, with a smooth, crevice-free design that eliminates the risk of bacterial growth. This ensures that the product being measured remains free from contamination and that the flowmeter is easy to clean and maintain.

All things concerned, the SUP-FMC240 Sanitary Electromagnetic Flowmeter is an excellent choice for food processing applications where accuracy, hygiene, and ease of maintenance are essential. Its advanced technology, easy installation, and low maintenance requirements make it a cost-effective solution for any food processing plant looking to improve its product quality and efficiency.

Sanitary electromagnetic flowmeter

Noted: the product strictly prohibited to be used in explosion-proof occasions.

Application

Electromagnetic flowmeters have been used throughout industries for more than 60 years. These meters are applicable for all conductive liquids, such as: Domestic water, industrial water, raw water, ground water, urban sewage, industrial wastewater, the processed neutral pulp, pulp slurry, etc

magnetic flow meter application
