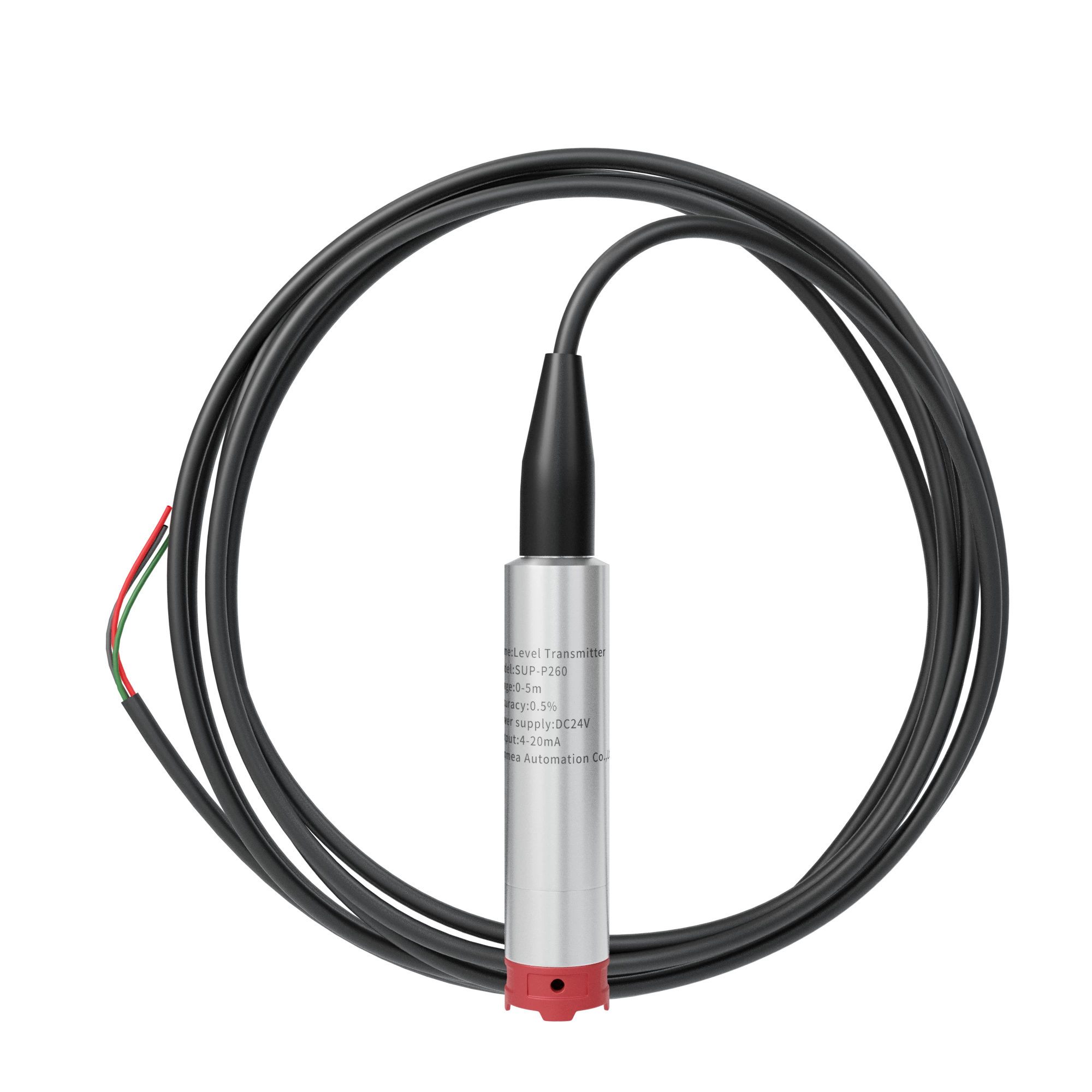

Specification Product Water level sensor Model SUP-WSP260 Measuring range 0 ~ 1m; 0 ~ 3m; 0 ~ 5m; 0 ~ 10m （Max 200m） Display resolution 0.5% Ambient temperature -10 ~ 85 ℃ Output signal 4-20mA, 0-5V,
Range: 0 ~ 100m
Resolution: 0.5% F.S
Output signal: 4~20mA; 0~10V; 0~5V
Power supply: 24VDC; 12VDC
Tel.: +86 15868103947 (WhatApp)
Email : info@supmea.com
| Product | Water level sensor |
| Model | SUP-WSP260 |
| Measuring range | 0 ~ 1m; 0 ~ 3m; 0 ~ 5m; 0 ~ 10m （Max 200m） |
| Display resolution | 0.5% |
| Ambient temperature | -10 ~ 85 ℃ |
| Output signal | 4-20mA, 0-5V, 0-10V |
| Pressure overload | 150%FS |
| Power supply |
（4~20）mA output（10~32）V
（0~10）V output（12~32）V
RS485 output（8~32）V
|
| Medium temperature | -10 ℃ ~ 60 ℃ |

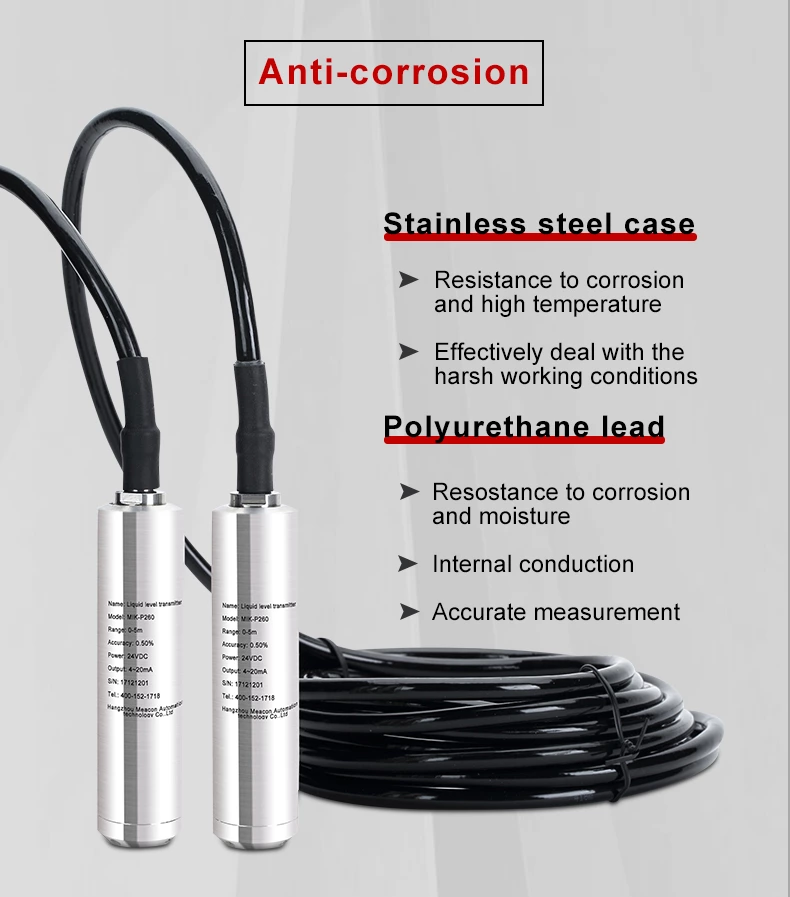

| Overall material | Core: 316L; Shell: 304 material |
