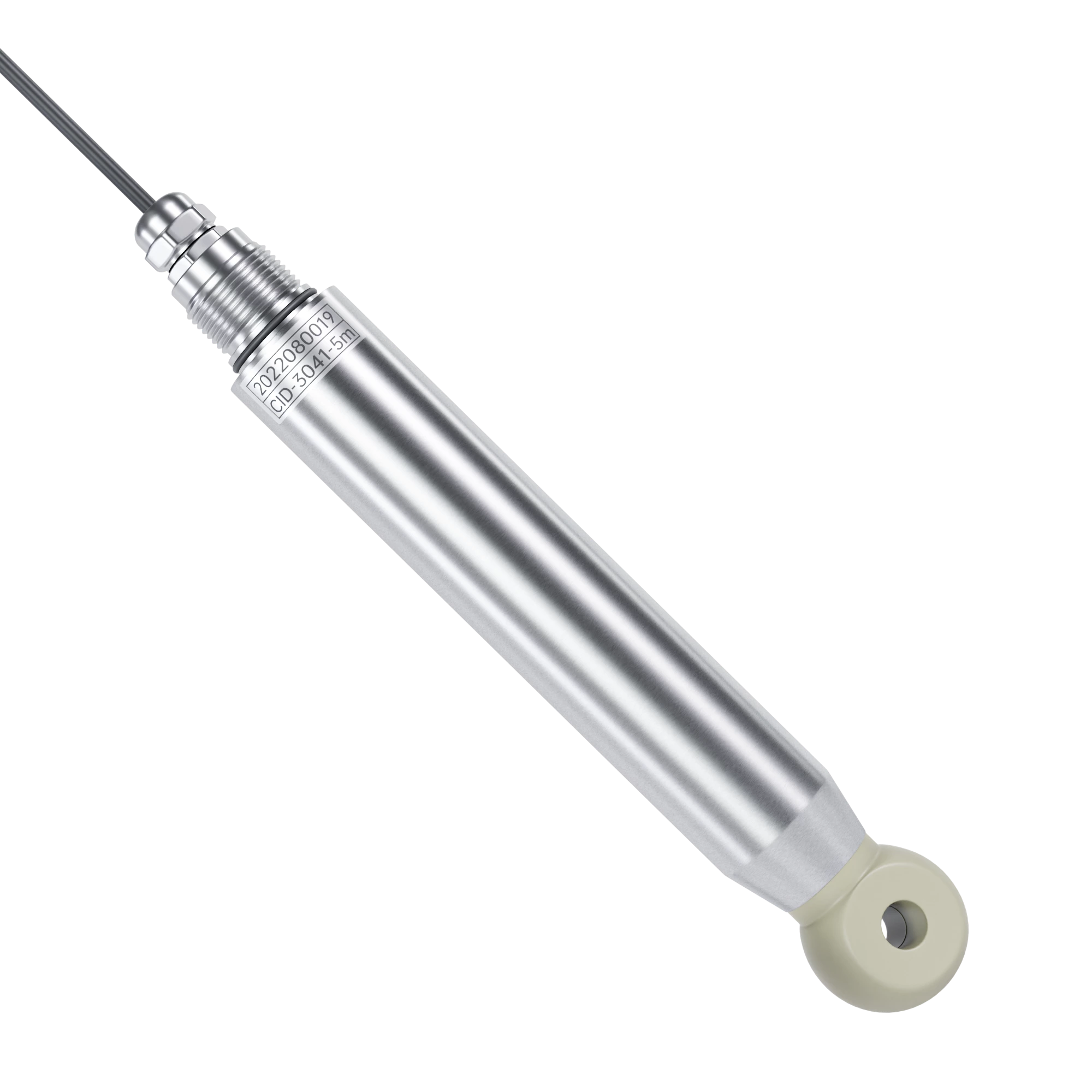

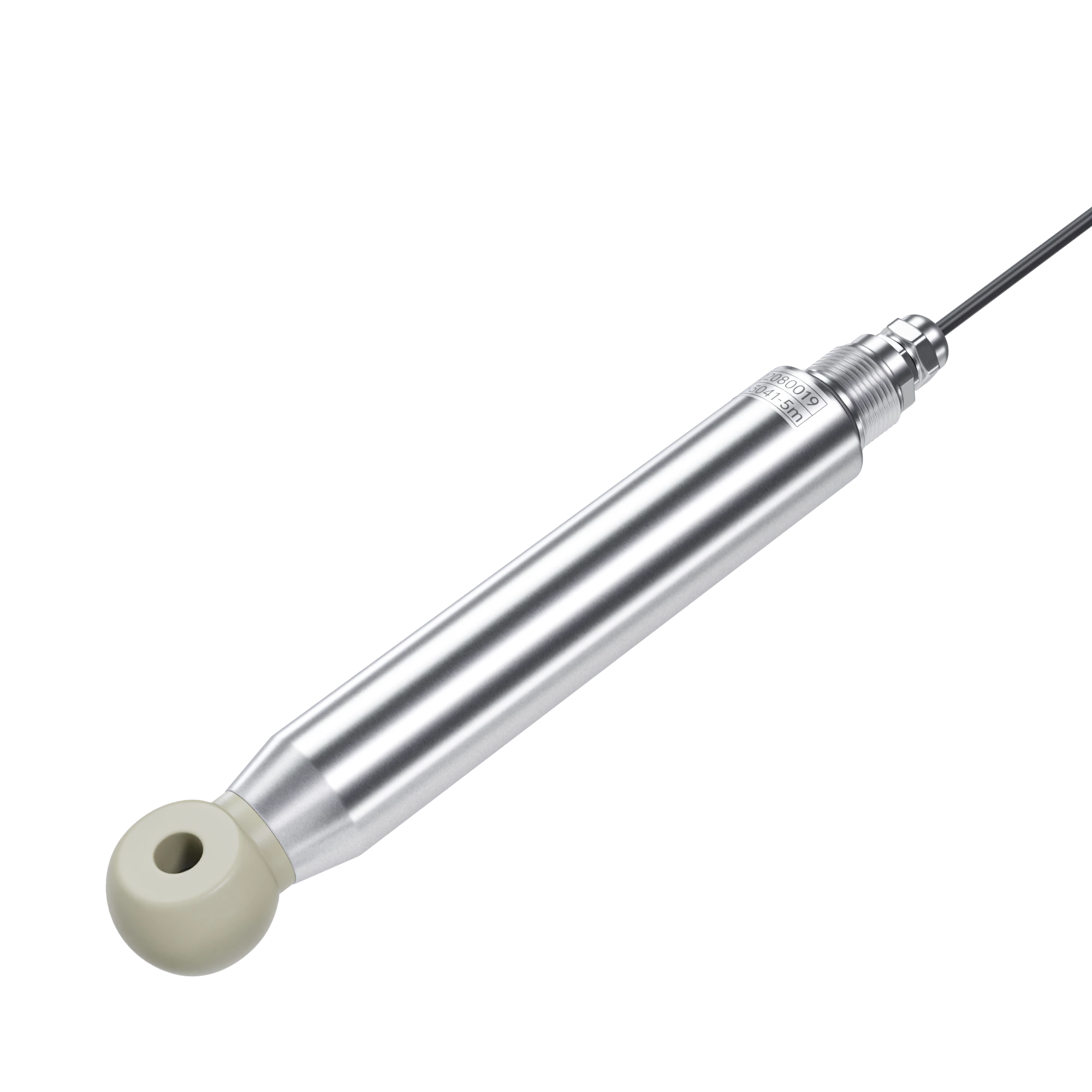

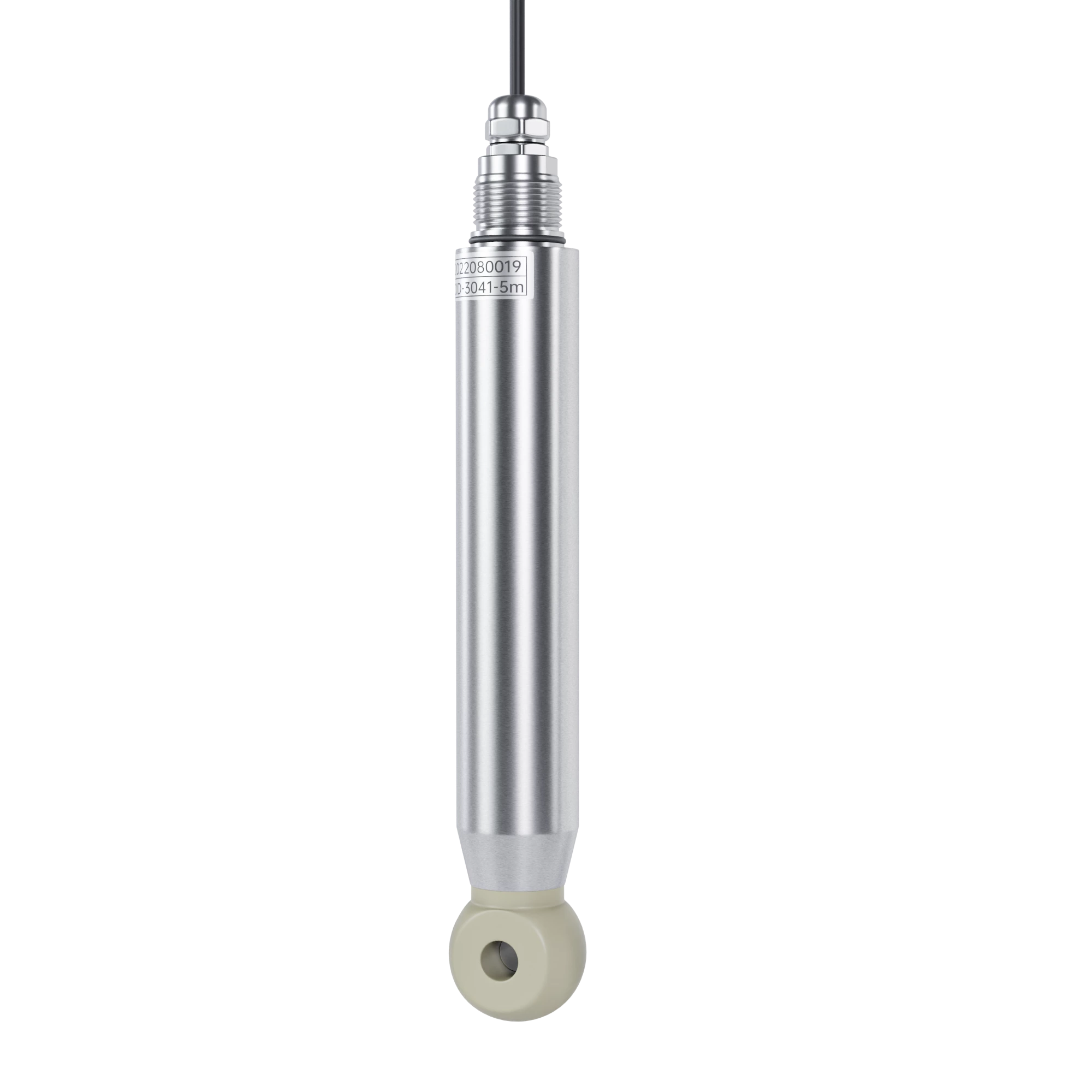

SUP-ADE3500 Inductive conductivity electrode

Inductive conductivity electrodes are mainly used to measure conductivity and concentration values in liquid media. This product is a digital online analysis sensor that integrates measurement and com

Characteristics

Communication:RS485

Process pressure:0.5MPa

Power supply:20~28VDC

Power consumption:2W

  • Inductive conductivity electrodes are mainly used to measure conductivity and concentration values in liquid media. This product is a digital online analysis sensor that integrates measurement and communication with an instrument embedded inside the sensor. It directly outputs RS485 digital signals (final net data) and can realize distortion-free data transmission to industrial computers, PLCs, touch screens, etc., digitizing Sensors will be directly integrated into the Internet+ system.

  Measurement  Conductivity, concentration, TDS, temperature
  Model  SUP-ADE3500
  Measure range  Conductivity 500μS/cm~2000mS/cm
 Concentration   NaOH(0~15)% or (25~50)%
HNO3(0~25)% or (36~82)%
User-defined
 Temperature (0~120)℃

  Accuracy

   Conductivity 5001999μS/cm,±1.5%FS
22000mS/cm,±1.0FS
 Temperature 0.5℃
   Temp compensation    Compensation element Pt1000
 Range 0120 linear compensation
   Communication     RS485
  Process pressure   0.5MPa
Power supply   20~28VDC
Power consumption 2W
Ingress protection Sensor:IP68 Cable interface: IP65
Working environment  Temperature:(0~50)℃ Humidity: 95%RH (no condensation)
Storage environment Temperature:(-20~60)℃ Humidity: 85%RH (no condensation)
Cable length 10mstandard)),others customizable
