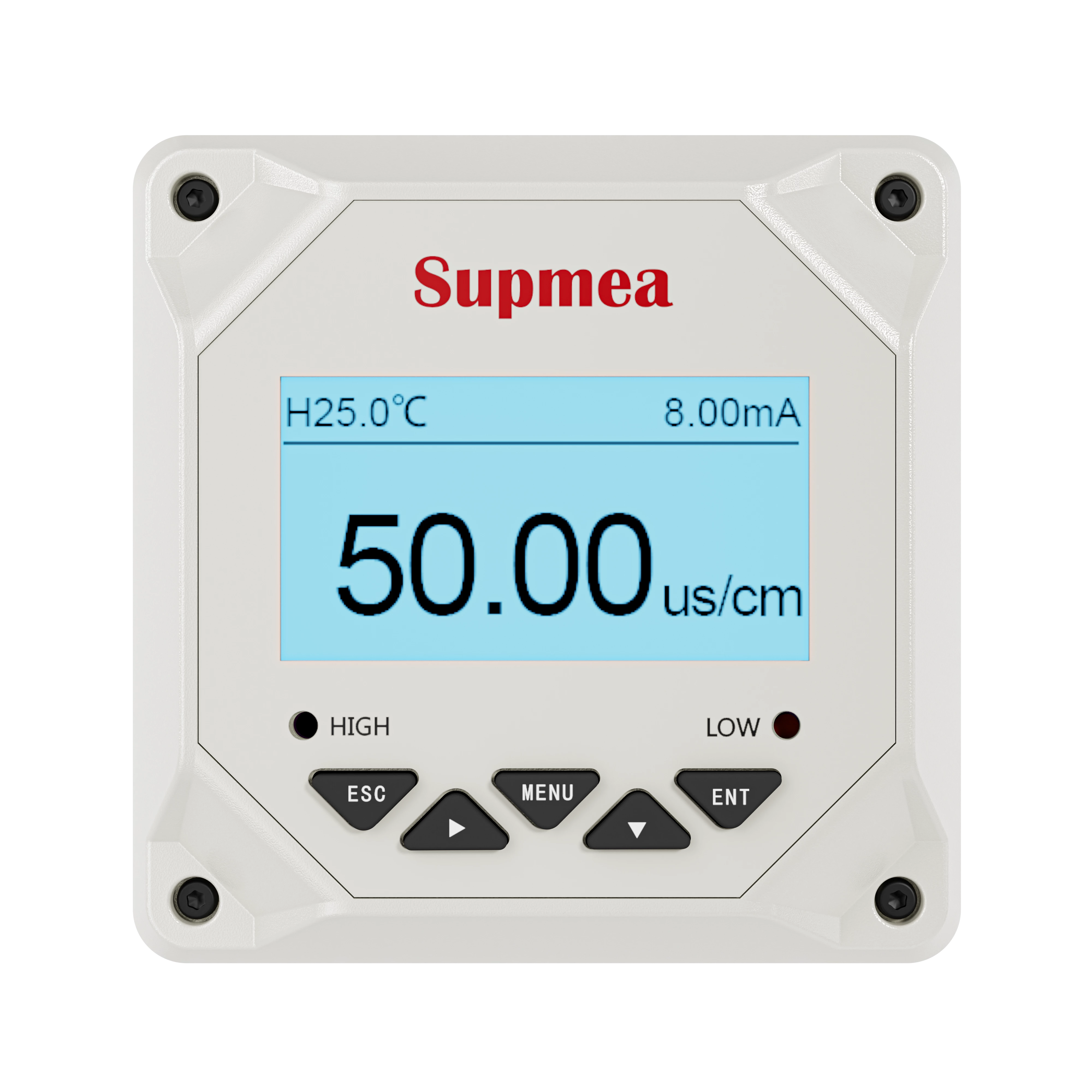

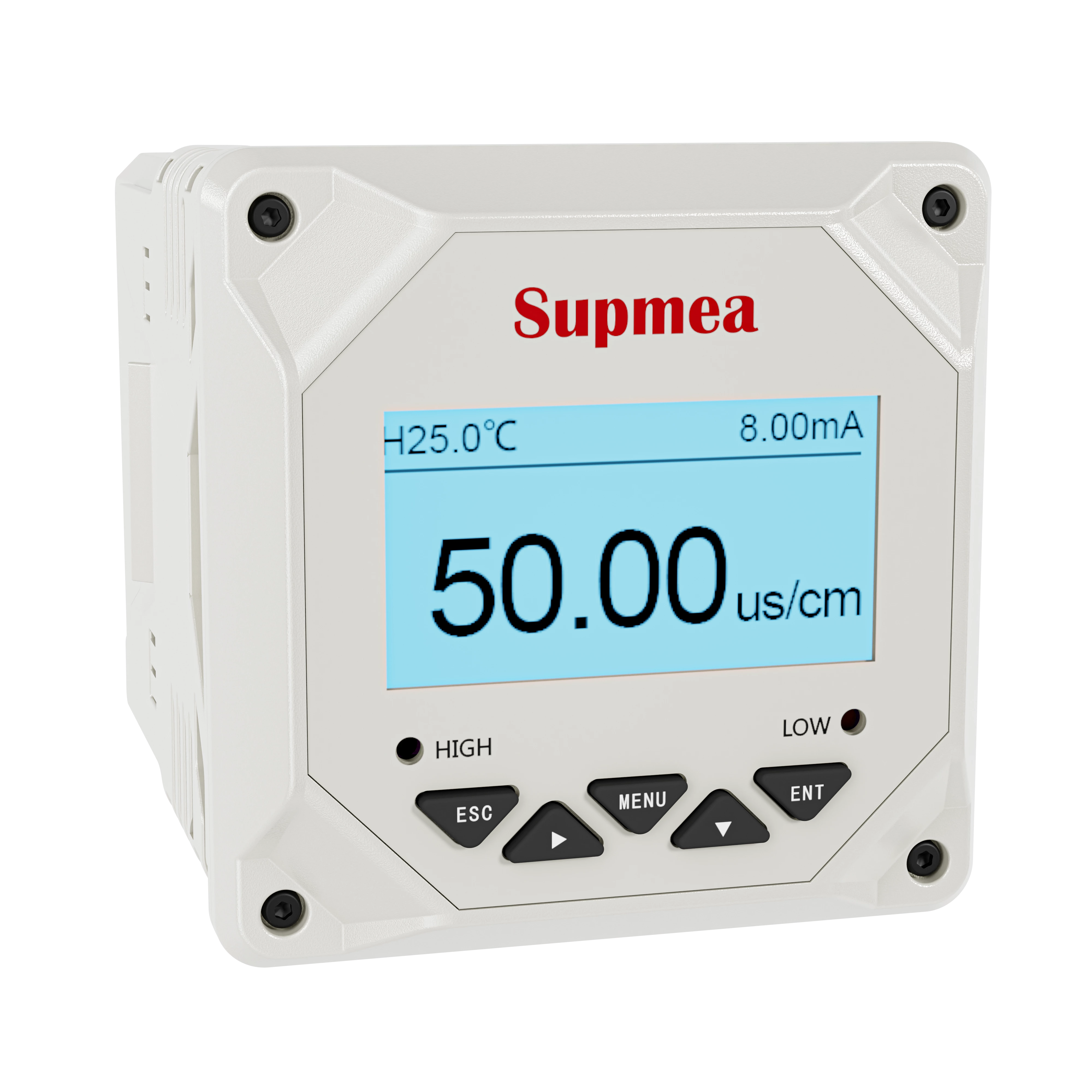

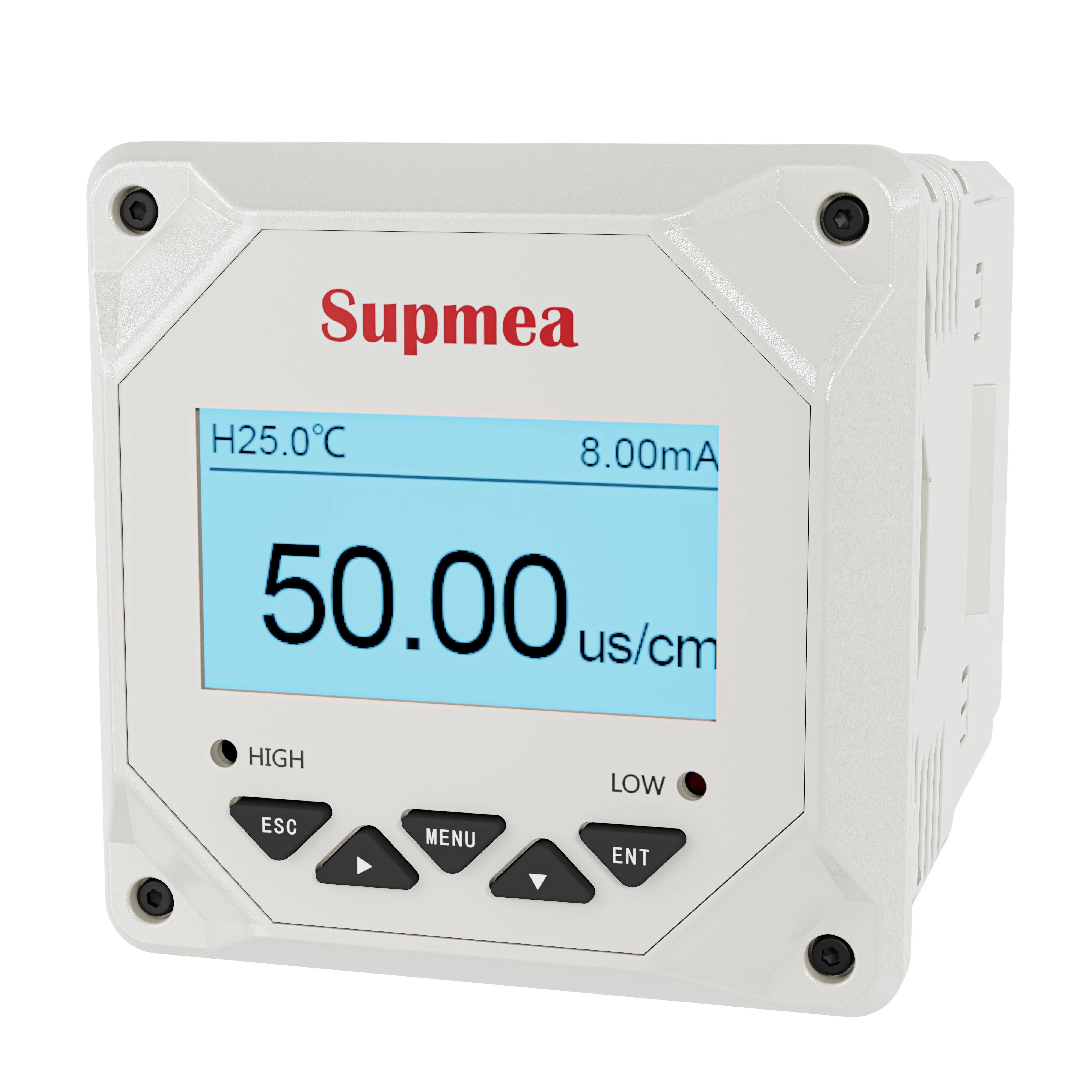

Specification Product TDS meter, EC controller Model MDA-EC Measure range 0.01 electrode: 0-20.00us/cm 0.1 electrode: 0.2-200.0us/cm 1.0 electrode: 2-2000us/cm 10.0 electrode: 0.02-20ms/cm Accuracy ±2
Range: 0.01 electrode: 0.02～20.00us/cm
0.1 electrode: 0.2～200.0us/cm
1.0 electrode: 2～2000us/cm
10.0 electrode: 0.02～20ms/cm
Accuracy: ±2%FS
Output signal: 4~20mA; Relay; RS485
Power supply: AC220V±10%, 50Hz/60Hz
Specification
| Product | TDS meter, EC controller |
| Model | SUP-MDA-EC |
| Measure range | 0.01 electrode: 0-20.00us/cm |
| 0.1 electrode: 0.2-200.0us/cm | |
| 1.0 electrode: 2-2000us/cm | |
| 10.0 electrode: 0.02-20ms/cm | |
| Accuracy | ±2%FS |
| Measuring medium | Liquid |
| Temp compensation | NTC10K/PT1000 Manual/ Auto temperature compensation |
| Temperature Range | -10-130℃ |
| Communication | RS485, Modbus-RTU |
| Signal output | 4-20mA, maximum loop 750Ω, 0.2%FS |
| Power supply | AC220V±10%, 50Hz/60Hz DC24V±20%, ≥6W |
| Relay output | 250VAC, 3A |
| Relative humidity | (10~85)%RH |
| Operation temperature | 0~60℃ |
| Operation condition | Temperature: 15~65℃ Relative humidity: (5~95)%RH |
Application
Description
Industrial wastewater engineering
Process measurements, electroplating plants, paper industry, drinks industry
Wastewater containing oil
Suspensions, varnishes, media containing solid particles
Two-chamber system for when electrode poisons are present
Media containing fluorides (hydrofluoric acid) up to 1000 mg/l HF
