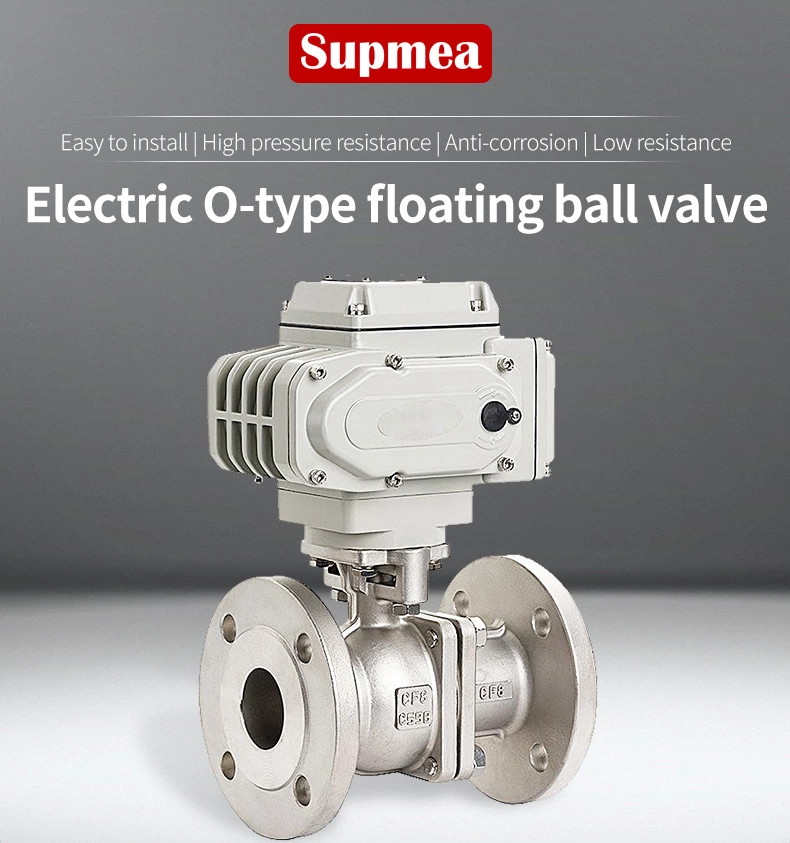

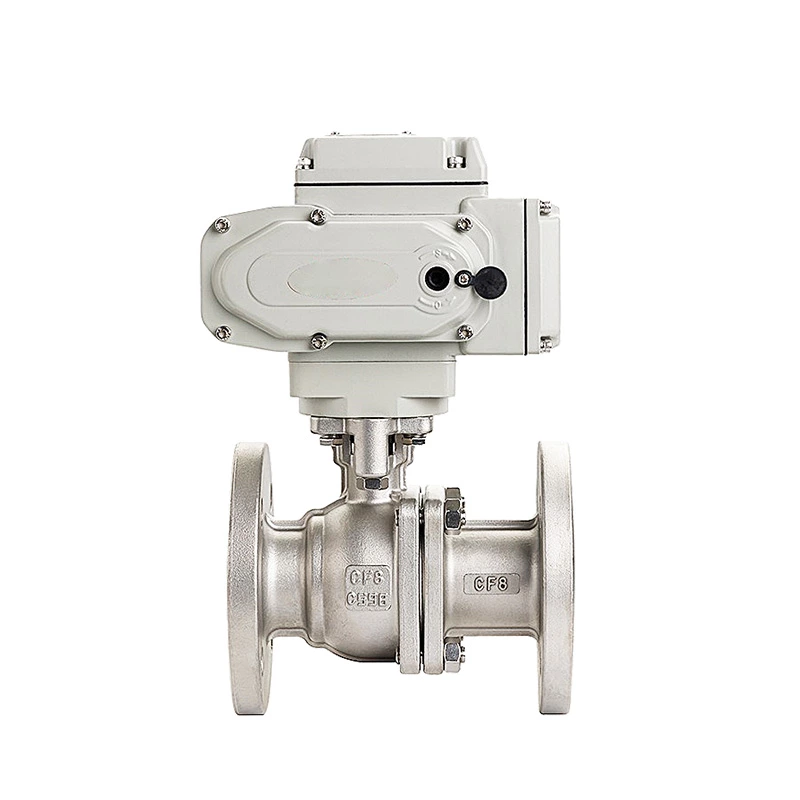

Electric O-type ball valve

Power：AC220V,AC380,AC415V,AC440V,AC24V,AC110V,DC24V DC12V,DC220V

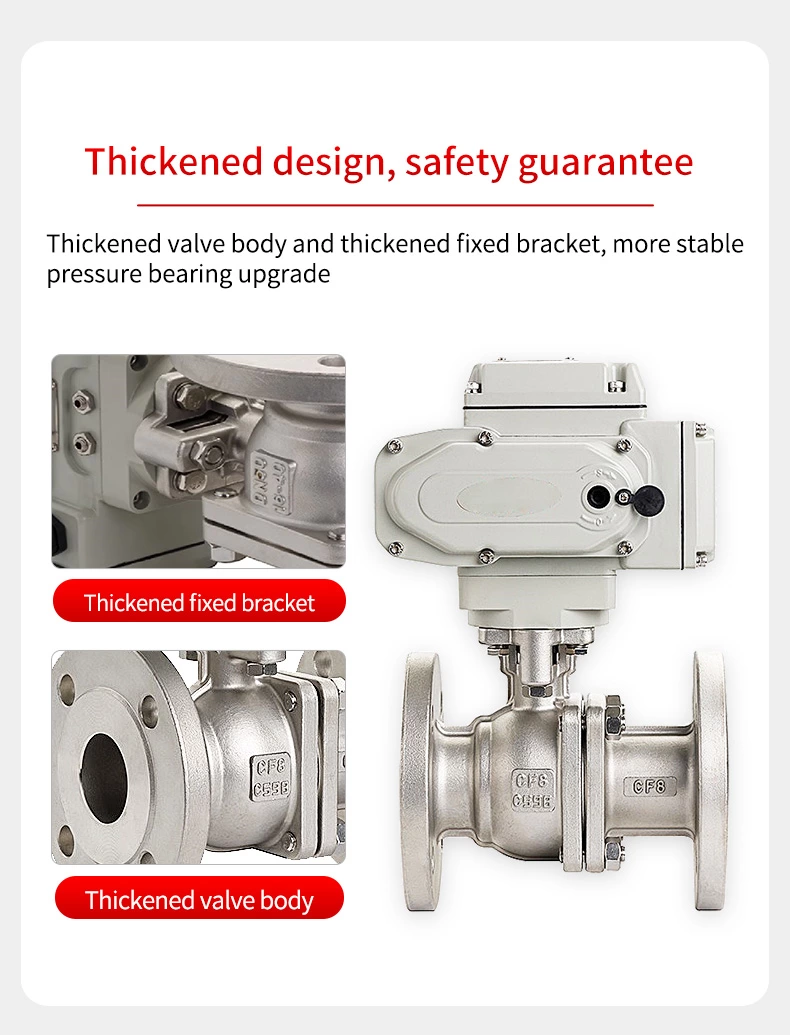

Valve body material：Stainless steel 304, stainless steel 316, cast steel

Valve plate material：Stainless steel 304, stainless steel 316, nylon plate

Valve seat material：Rubber

Control signal：Switch，DC0-10V;DC4-20mA

Feedback output：Dry contact feedback;DC4-20mA

Valve temp：Carbon Steel:-29℃~425℃ Stainless steel:-40℃-600℃

Working temp：-20-60*C

Nominal pressure：1.6MPa 2.5MPa 6.4MPa

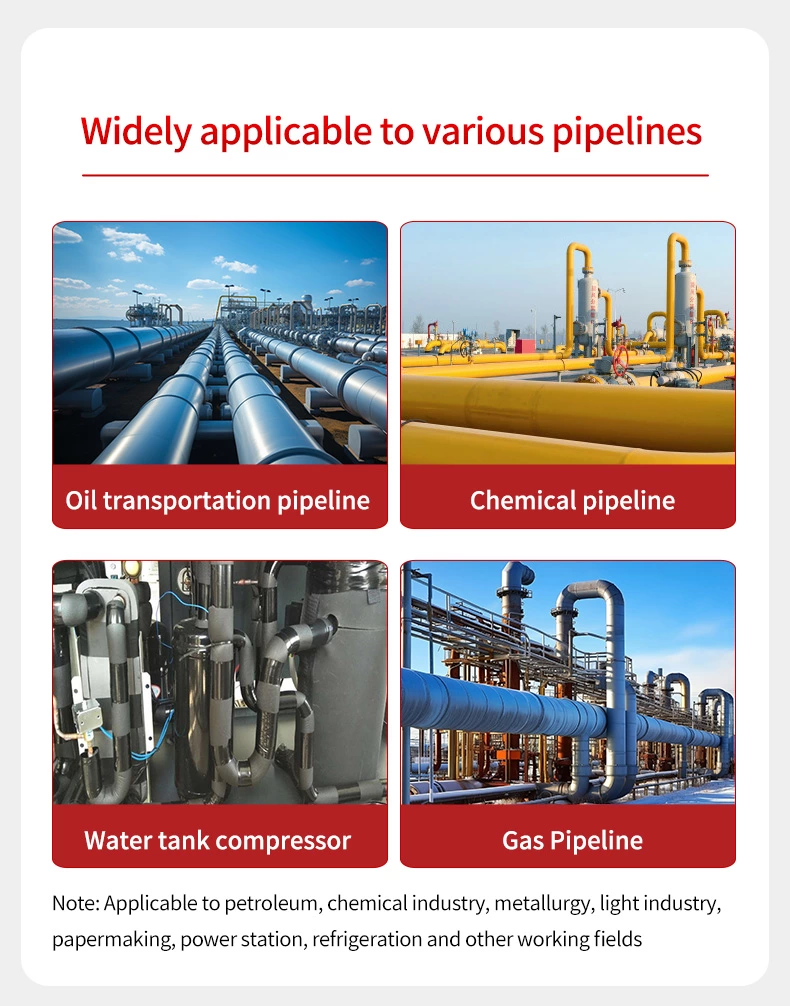

Applicable medium：Water, steam, oil, acid corrosion, etc.
