SUP-RN3000 18-channel analog signal input paperless recorder

This product has a 18-channel analog signal input channel, 4-channel relay alarm output channel, 1-channel150mA distribution output channel,1-channel RS-485 communication interface ,and a USB data dump interface.This product has online firmware upgrade function, which can be done through a USB flash drive or 485 interface. It supports customized writing of the startup interface and screenshot display function.

Characteristics

Power supply:(85~264)VAC,(47~63)Hz (24VDC can be customized)

Internal storage:64M Bytes Flash (96M,128M can be customized)

External storage:U disk support (standard USB2.0 communication interface)

  • This product has a 18-channel analog signal input channel, 4-channel relay alarm output channel, 1-channel150mA distribution output channel,1-channel RS-485 communication interface ,and a USB data dump interface.This product has online firmware upgrade function, which can be done through a USB flash drive or 485 interface. It supports customized writing of the startup interface and screenshot display function.



  • Parameters
Product  Paperless recorder
Model RN3000

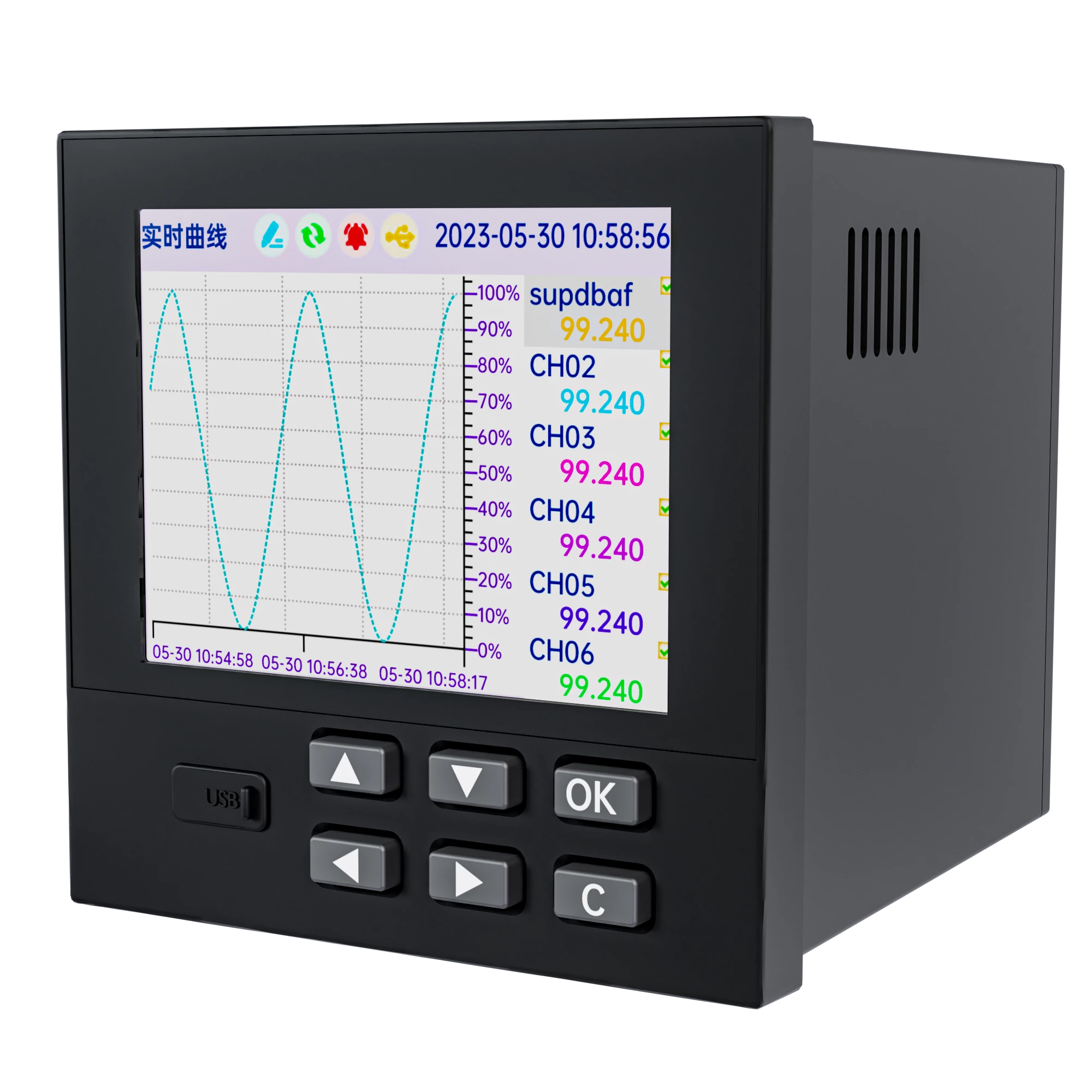

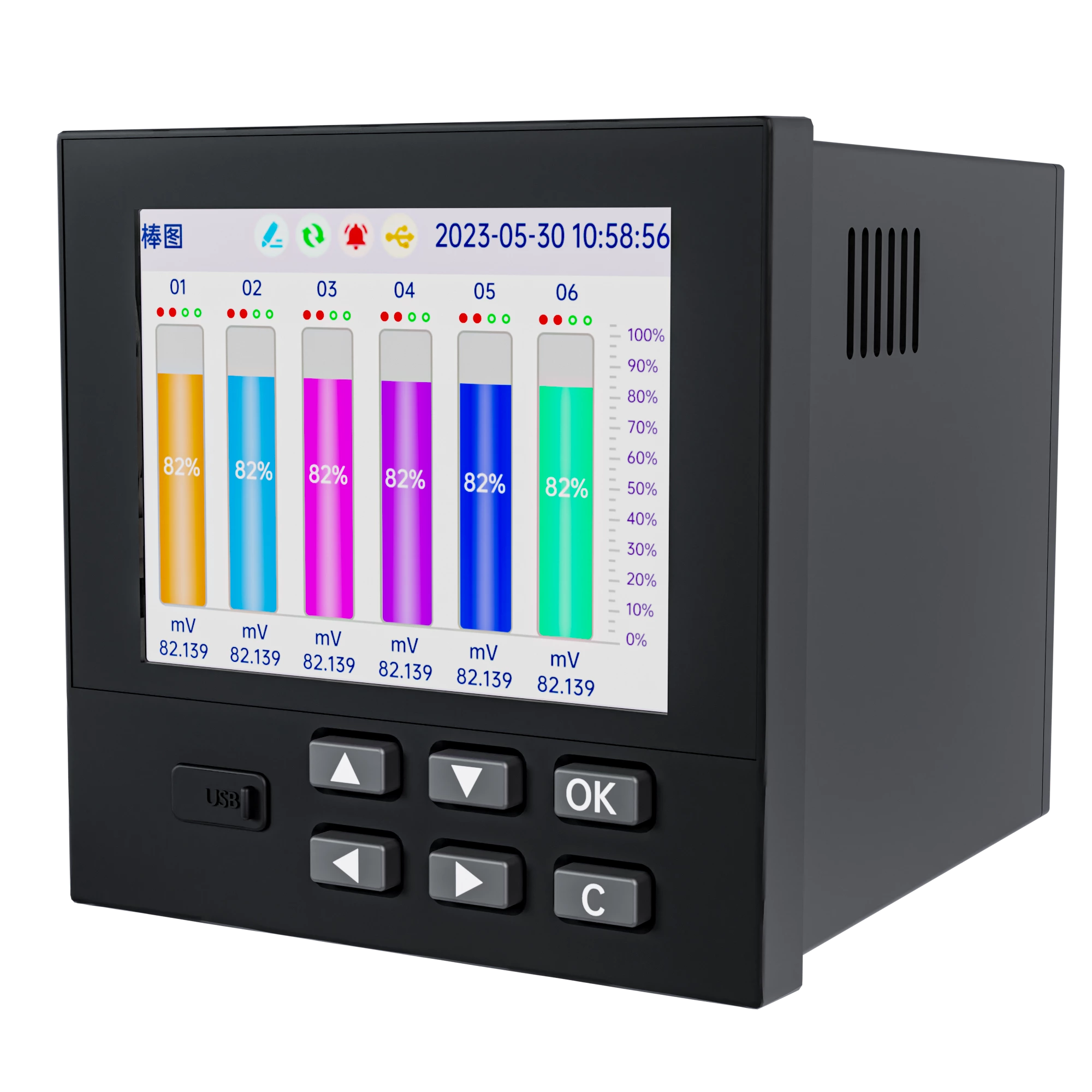

Screen size 3.5-inch TFT true color LCD screen.
Resolution is 320 * 240
High definition LED backlight.
Dimension Dimension:96mm×96mm×100mm
Cutout dimension:92mm×92mm
Panel thickness 1.5mm~6.0mm
Weight 0.37kg
Power supply (85~264)VAC,(47~63)Hz (24VDC can be customized)
Internal storage 64M Bytes Flash (96M,128M can be customized)
External storage U disk support (standard USB2.0 communication interface)
Maximum power consumption 10W
Relative humidity (10~85)%(No condensation)
Operating temperature (0~50)℃
Storage conditions Temperature: (-20~60)℃
Relative humidity: (5~95)%RH(No condensation)
