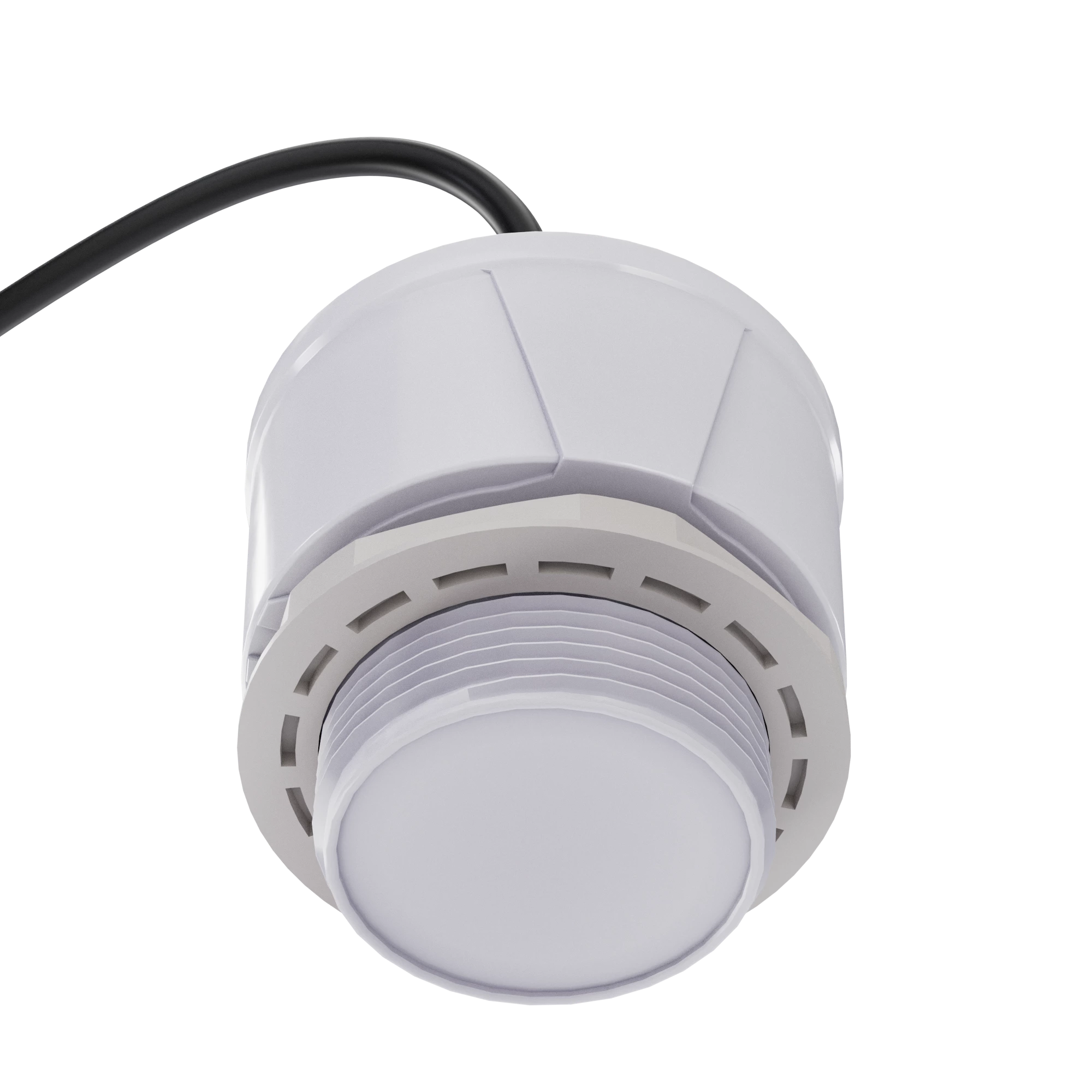

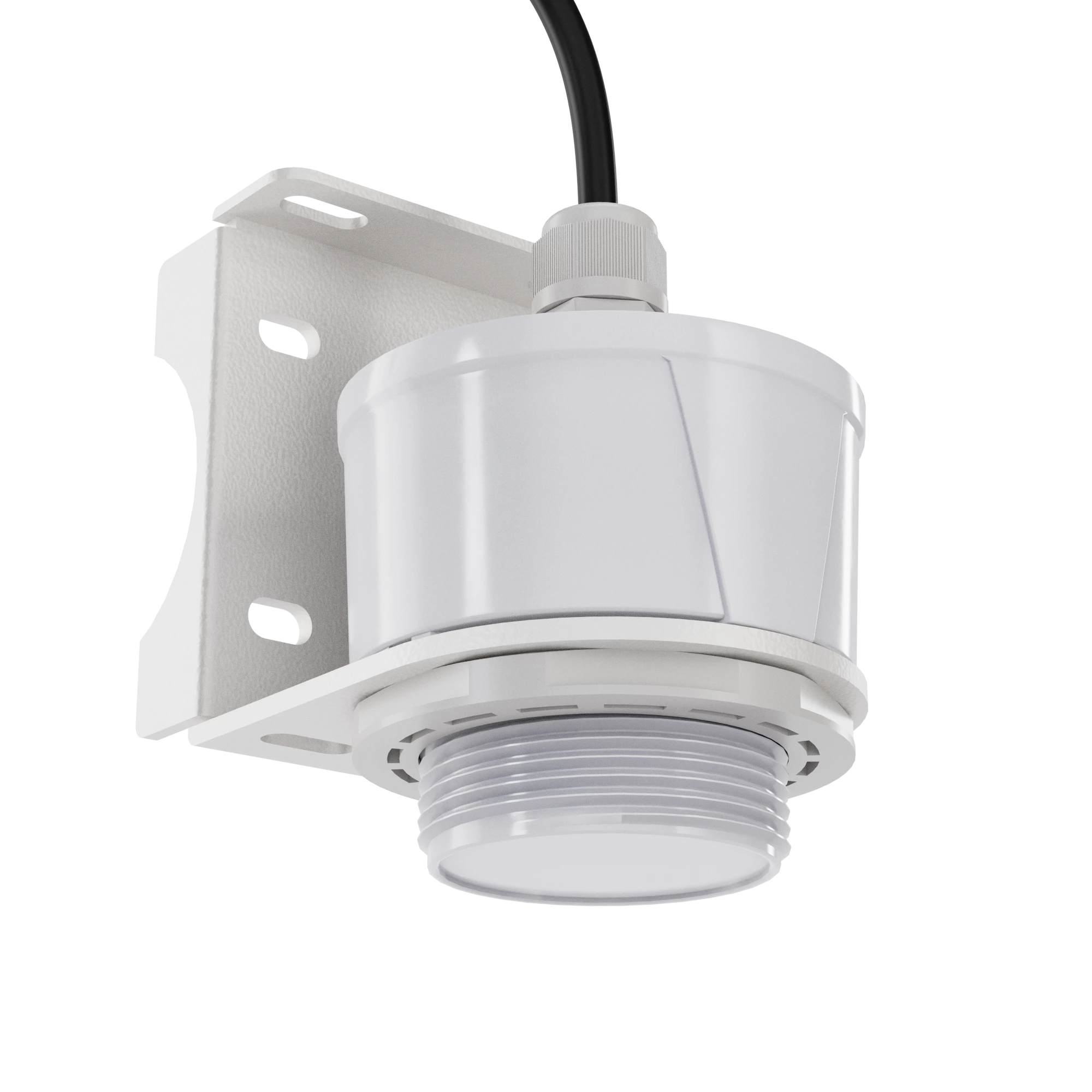

WSR200 80G Radar level meter
Characteristics
Measure range: 8m / 15m
Blind zone: ≤0.15m
Antenna Angle: ±3°
Accuracy : ±5mm
Measure range: 8m / 15m
Blind zone: ≤0.15m
Antenna Angle: ±3°
Accuracy : ±5mm
Radar level measurement is a highly reliable and accurate method for measuring the level of liquids or solids in a variety of industrial applications. This technology utilizes electromagnetic waves to determine the distance between the radar sensor and the surface of the material being measured.
One of the key advantages of radar level measurement is its ability to provide accurate measurements even in harsh environments where other methods may fail. This includes applications where there are extreme temperatures, pressures, or levels of dust or vapors. Additionally, radar level measurement is not affected by the properties of the material being measured, making it suitable for use with a wide range of liquids and solids.
Another benefit of radar level measurement is its ability to provide continuous, real-time monitoring of material levels. This allows for more efficient and precise control of industrial processes, reducing waste and improving overall productivity. Additionally, radar level measurement can be integrated with other process control systems, providing a comprehensive solution for industrial monitoring and control.
When selecting a radar level measurement system, it is important to consider factors such as the frequency of the electromagnetic waves used, the size and shape of the sensor, and the range of the measurement. Additionally, it is important to ensure that the system is properly calibrated and installed for accurate and reliable measurements.
Product | Radar level meter |
Model | WSR200 |
Measure range | 8m / 15m |
Modulation waveform | FMCW |
Transmission frequency | 79GHz~81GHz |
Blind zone | ≤0.15m |
Antenna Angle | ±3° |
Accuracy | ±5mm |
Repeatability | ±2mm |
Refresh rate | ≥500ms |
Ingress protection | IP67 |
Transmission output | (4~20) mA |
Communication output | RS485 |
Power supply | (9~36) VDC |
Working current | ≤80mA, 24VDC |
Power consumption | ≤1.9W |
Dielectric constant | ≥3 |
Process pressure | (-0.1~0.3) MPa |
Process temperature | (-40~85)℃ |
unit:mm
