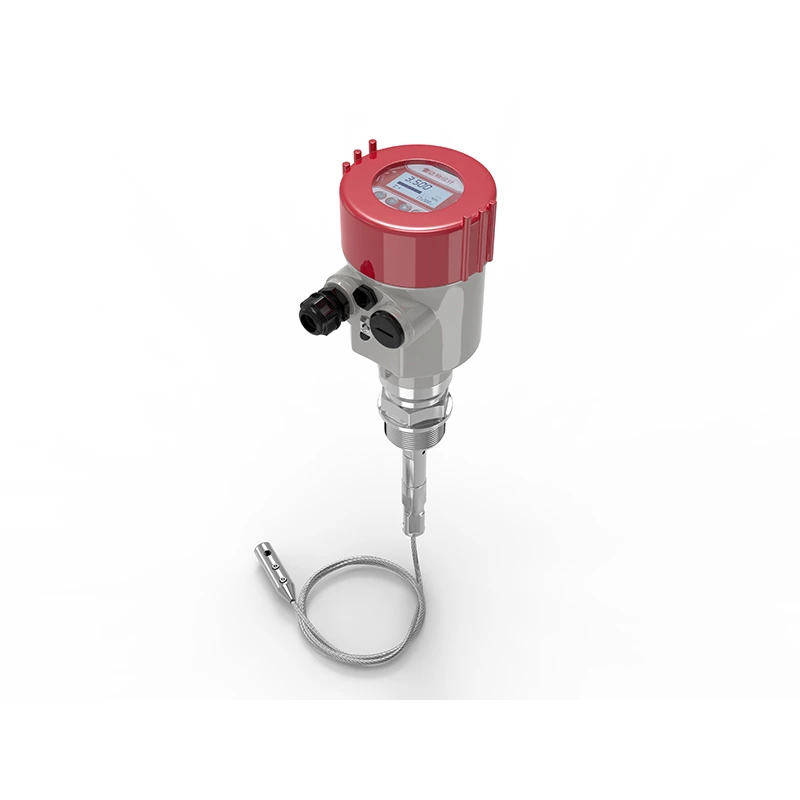

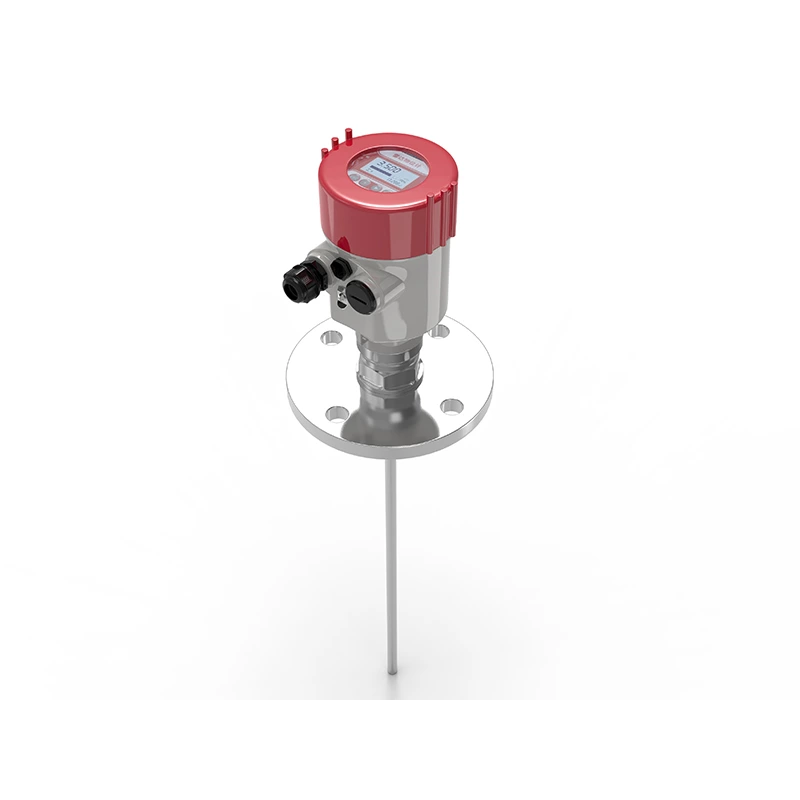

SUP-RD701 Guided wave radar level meter

SUP-RD701 Guided wave radar for level measurement in liquids and bulk solids. In level measurement with guided wave radar, microwave pulses are conducted along a cable or rod probe and reflected by the product surface.

Characteristics

  • Range: 0~30 m
  • Application:  Liquids and bulk solids
  • Frequency Range: 500MHz ~ 1.8GHz



Email : info@supmea.com

  • Specification
 Product  Guided wave radar level meter
 Model SUP-RD701
 Accuracy ±5mm (range 5m)
±10mm (range 10m)
±20mm (range 20m)
±25mm (range 30m)
 Application Liquids and bulk solids
 Process connection Thread/ Flange(optional)
 Process temperature (-40~250)℃
 Process pressure    -0.1 ~ 4MPa
 Ingress protection IP67
 Frequency range 500MHz-1.8GHz
 Signal output 4-20mA/HART
RS485/Modbus
 Power supply 24VDC/ Two-wire
(24VDC/220VAC)/ Four-wire
  • Introduction

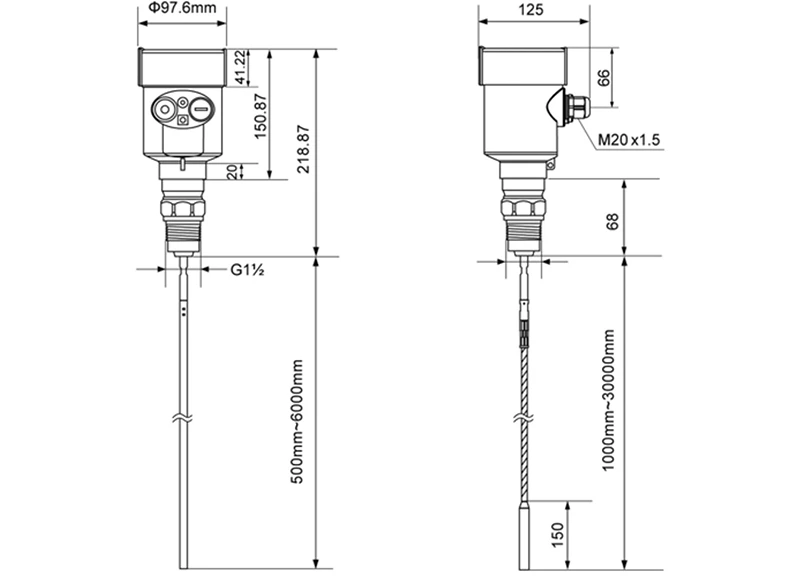

  • Product Size


  • Installation guide


H----Measuring range

L----Empty tank height

B----Blind area

E----Minimum distance from probe to tank wall >50mm

Note:

The top Blind area refers to the minimum distance between the highest material surface of the material and the measurement reference point.

Blind area at the bottom refers to a distance that cannot be accurately measured near the bottom of the cable.

The effective measurement distance is between the top Blind area and the bottom Blind area.
