| Product |

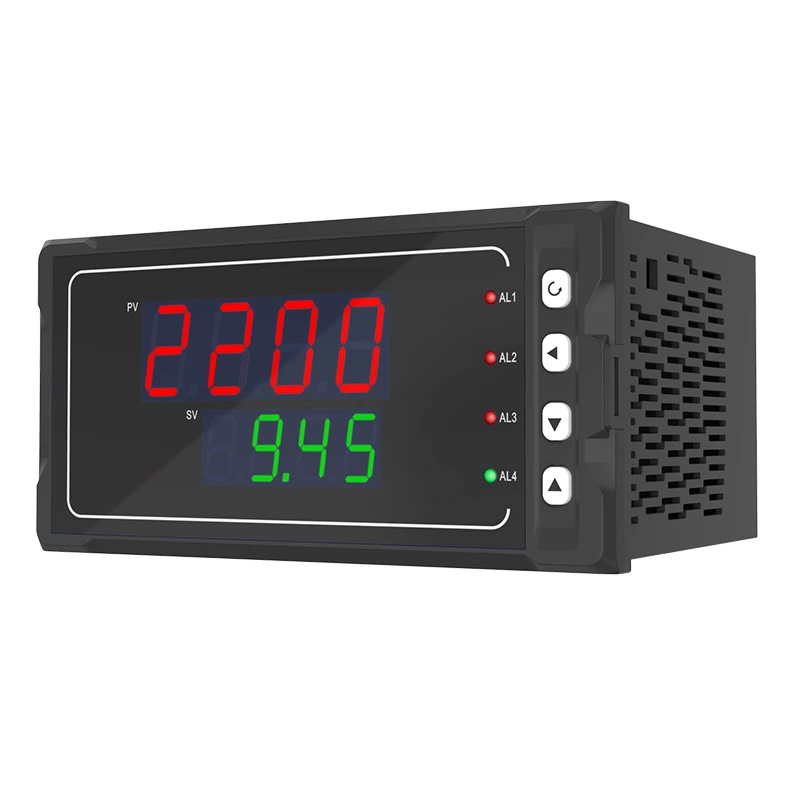

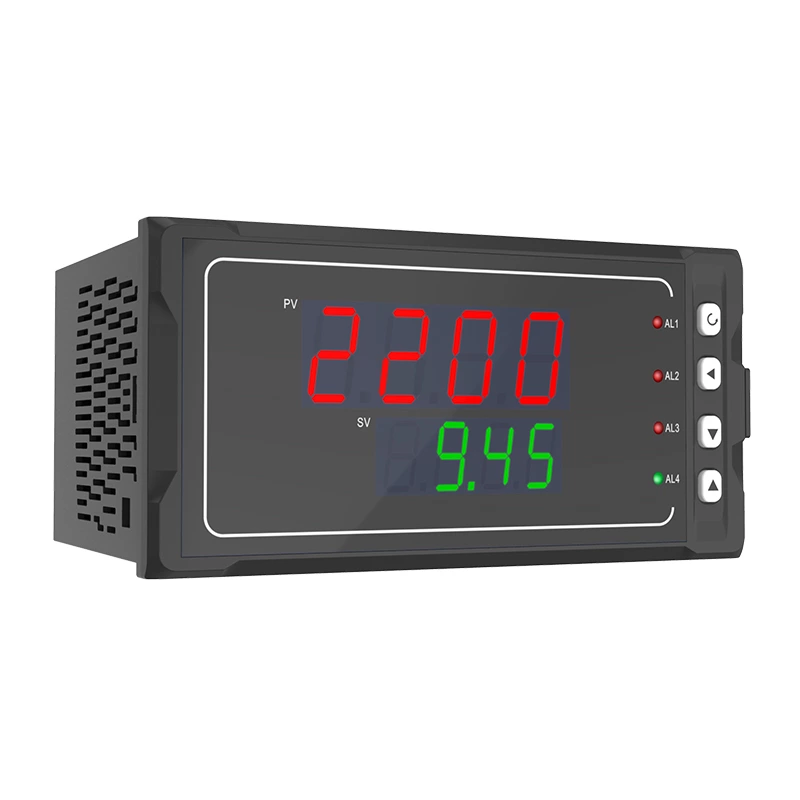

Dual-loop digital display controller |
| Model |
SUP-2200 |
| Display |
Dual-screen LED display |
| Dimension |
A.160*80*110mm
B. 80*160*110mm
C. 96*96*110mm
D. 96*48*110mm
E. 48*96*110mm
F. 72*72*110mm
K. 160*80*110mm
L. 80*160*110mm |
| Measurement accuracy |
±0.2%FS |
| Transmission output |
Analog output----Analog output----4-20mA、1-5v、
0-10mA、0-5V、0-20mA、0-10V |
| Alarm Output |
ALM---With upper and lower limit alarm function, with alarm return difference setting；Relay contact capacity：
AC125V/0.5A(small)DC24V/0.5A(small)（Resistance C load）
AC220V/2A(big)DC24V/2A(big)（Resistive load）
Note: When the load exceeds the relay contact capacity, please do not directly carry the load |
| Power supply |
AC/DC100~240V (Frequency50/60Hz) Power consumption≤5W
DC 12~36V Power consumption≤3W |
| Use environment |
Operating temperature（-10~50℃）No condensation, no icing |
| Printout |
RS232 printing interface, micro-matched printer can realize manual, timing and alarm printing functions |

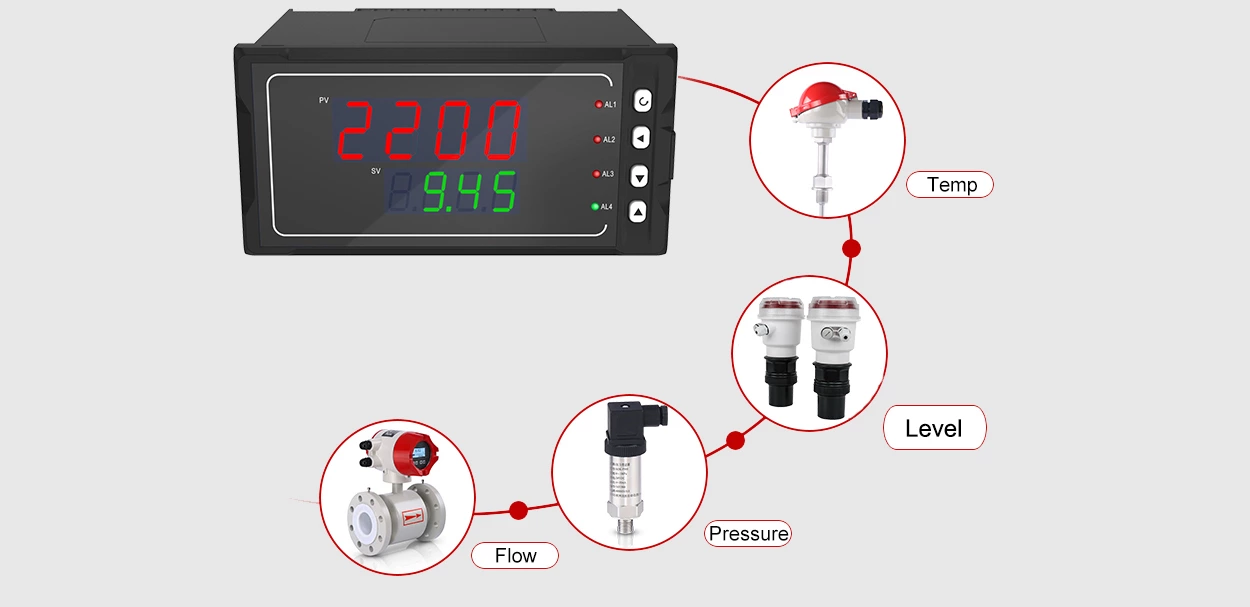

Dual-loop digital display controller with automatic SMD packaging technology has a strong anti-jamming capability. It can be used in conjunction with various sensors、transmitters to display temperature, pressure, liquid level, speed, force and other physical parameters, and to output alarm control, analog transmission, RS-485/232 communication etc. Designed with dual-screen LED display, you can set the displaying contents of upper and lower screen, and through mathematic function you can make addition, subtraction, multiplication and division to the two input loop input signals, and it has a very good applicability.
Input signal type list:
| Graduation Number Pn |
Signal type |
Measure range |
Graduation Number Pn |
Signal type |
Measure range |
| 0 |
TC B |
400~1800℃ |
18 |
Remote Resistance 0～350Ω |
-1999～9999 |
| 1 |
TC S |
0～1600℃ |
19 |
Remote Resistance 3 0～350Ω |
-1999～9999 |
| 2 |
TC K |
0～1300℃ |
20 |
0～20mV |
-1999～9999 |
| 3 |
TC E |
0～1000℃ |
21 |
0～40mV |
-1999～9999 |
| 4 |
TC T |
-200.0～400.0℃ |
22 |
0～100mV |
-1999～9999 |
| 5 |
TC J |
0～1200℃ |
23 |
-20～20mV |
-1999～9999 |
| 6 |
TC R |
0～1600℃ |
24 |
-100～100mV |
-1999～9999 |
| 7 |
TC N |
0～1300℃ |
25 |
0～20mA |
-1999～9999 |
| 8 |
F2 |
700～2000℃ |
26 |
0～10mA |
-1999～9999 |
| 9 |
TC Wre3-25 |
0～2300℃ |
27 |
4～20mA |
-1999～9999 |
| 10 |
TC Wre5-26 |
0～2300℃ |
28 |
0～5V |
-1999～9999 |
| 11 |
RTD Cu50 |
-50.0～150.0℃ |
29 |
1～5V |
-1999～9999 |
| 12 |
RTD Cu53 |
-50.0～150.0℃ |
30 |
-5～5V |
-1999～9999 |
| 13 |
RTD Cu100 |
-50.0～150.0℃ |
31 |
0～10V |
-1999～9999 |
| 14 |
RTD Pt100 |
-200.0～650.0℃ |
32 |
0～10mA square |
-1999～9999 |
| 15 |
RTD BA1 |
-200.0～600.0℃ |
33 |
4～20mA square |
-1999～9999 |
| 16 |
RTD BA2 |
-200.0～600.0℃ |
34 |
0～5V square |
-1999～9999 |
| 17 |
Linear resistance 0～400Ω |
-1999～9999 |
35 |
1～5V square |
-1999～9999 |
