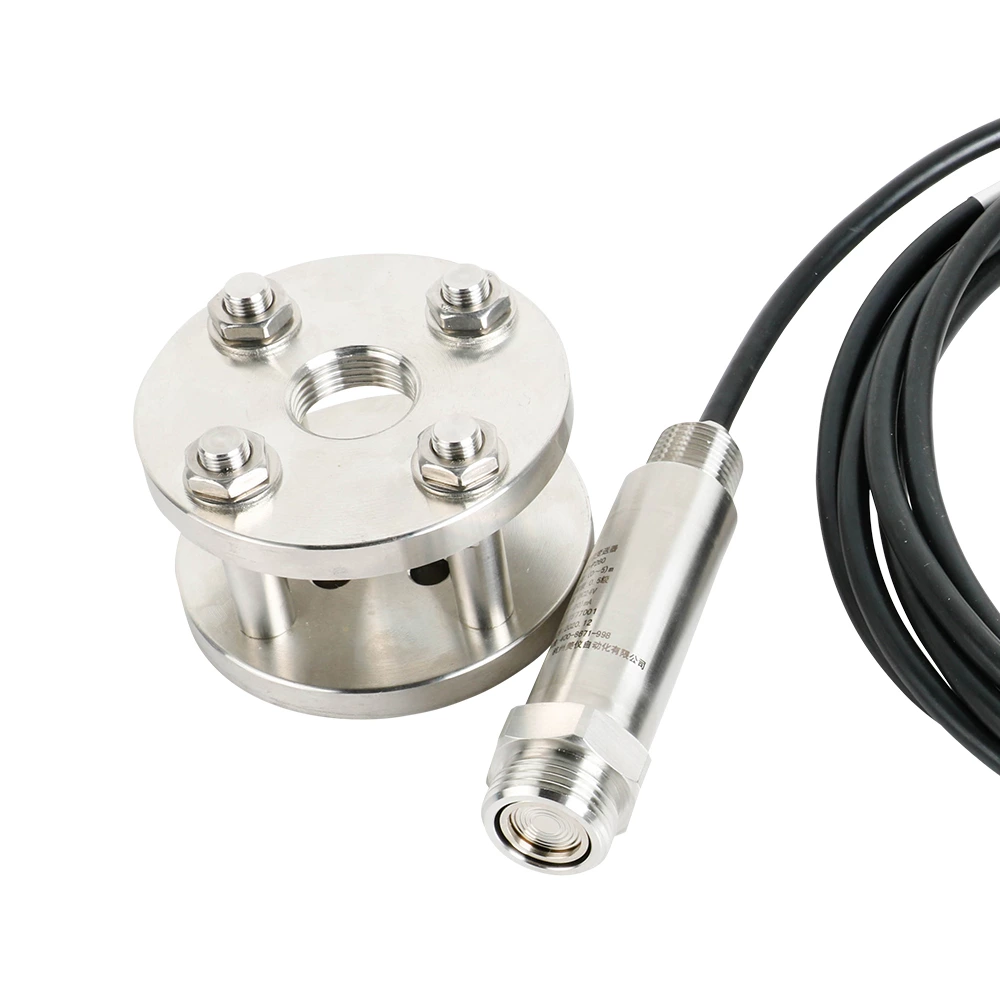

SUP-P260-M2 Slurry level sensor submersible level transmitter

SUP-P260-M2 Slurry level meter are completely sealed for submersion in liquid, can be used to measure water level, well depth, groundwater level and so on, common accuracy is 0.5%FS,with voltage or 4-20mA output signalsused. Durable 316 SS construction for reliable, long life in harsh environments.

Characteristics

Range: 0 ~ 100m

Resolution: 0.5% F.S

Output signal: 4~20mA

Power supply: 24VDC



Tel.: +86 15868103947 (WhatApp)

Email : info@supmea.com

  • Features
  1. Non-clogging and damage resistant to floating solids
  2. Durable 316 SS construction for reliable, long life in harsh environments
  3. 1/2 inch NPT threaded connection, allows the unit to be installed in a pipe/conduit
  4. Diaphragm is protected from physical damage and turbulence
  5. Added weight helps hold transmitter in place
  6. Excellent chemical compatibility for wide application use
  • Specification
 Product  Slurry level transmitter
 Model SUP-P260-M2
 Measuring range 0m~0.5m···100m
 Pressure overload ≤2 times full range
 Display resolution 0.5%
 Stability ±0.2%FS/year
 Output signal 4mA-20mA
 Pressure type G(gape pressure)
 Power supply 12VDC-30VDC
 Conpensation temperature ≤2m:0℃~50℃ ≥2m:-10℃~60℃
 Medium temperature -30℃~65℃
 Ingress protection  IP68
  • Introduction

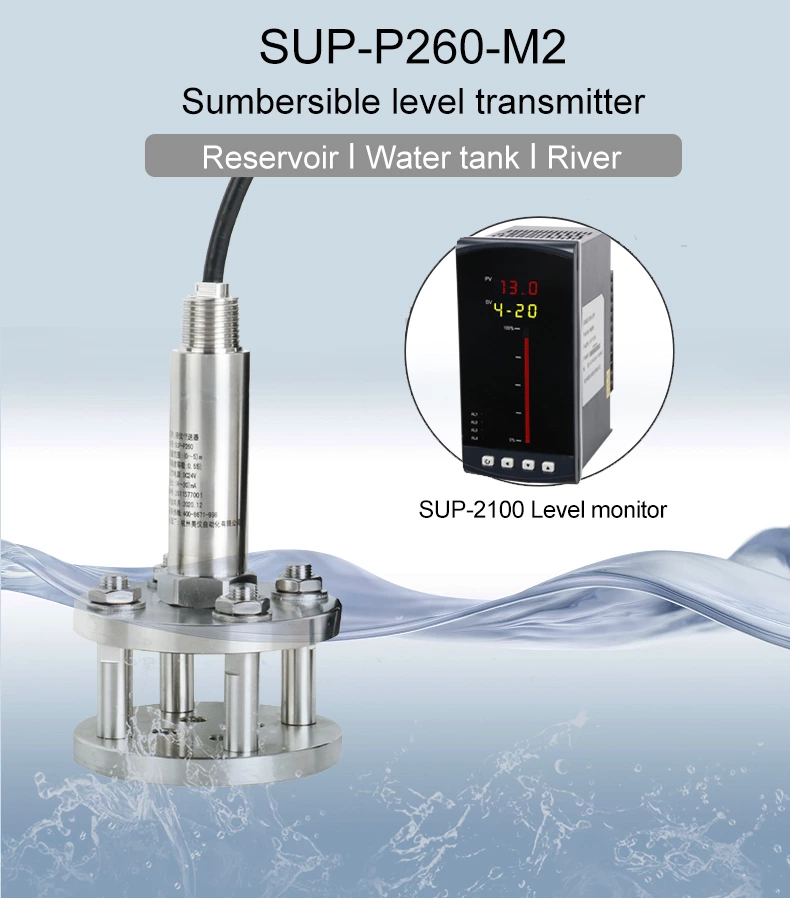

level sensor

  • Application

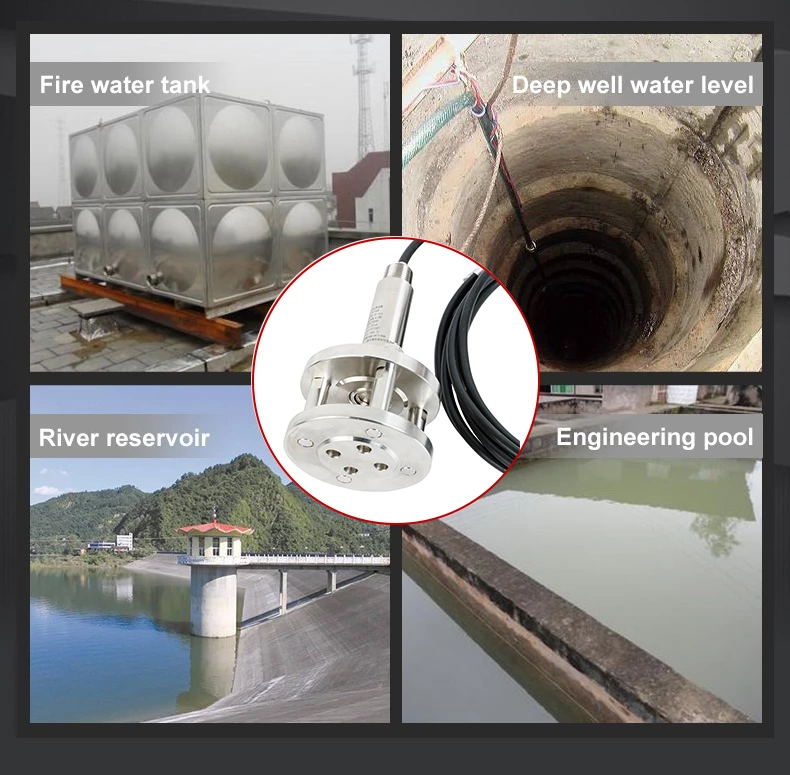

level sensor user

  • Description

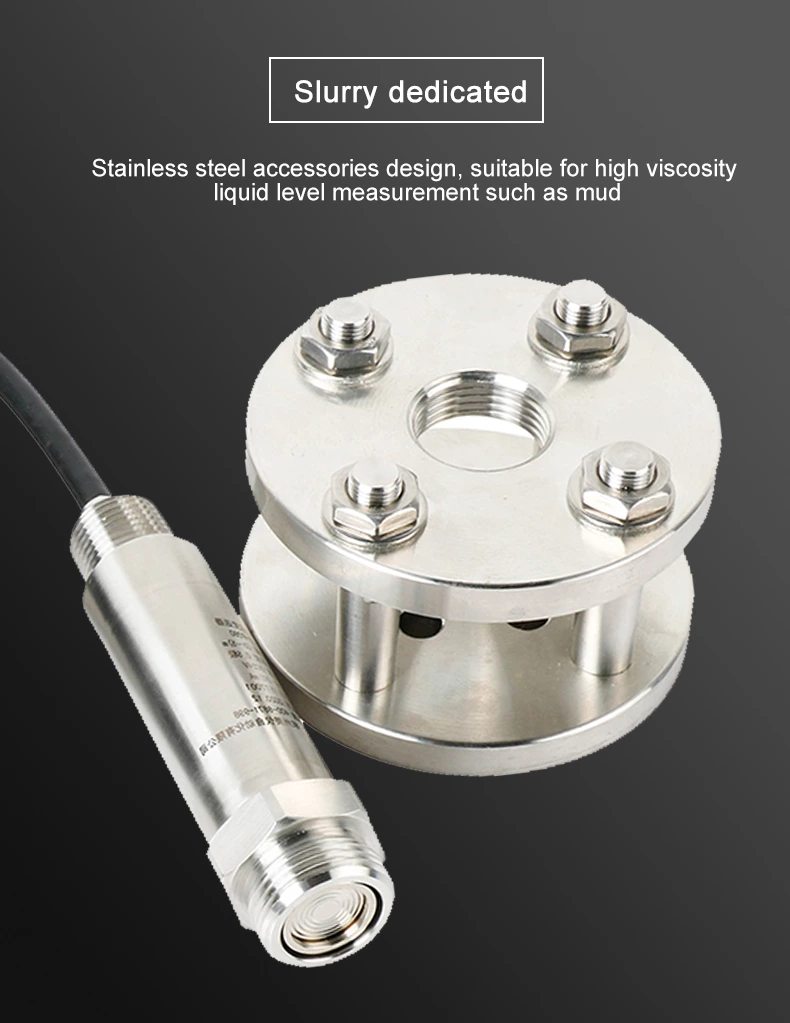

slurry level sensor

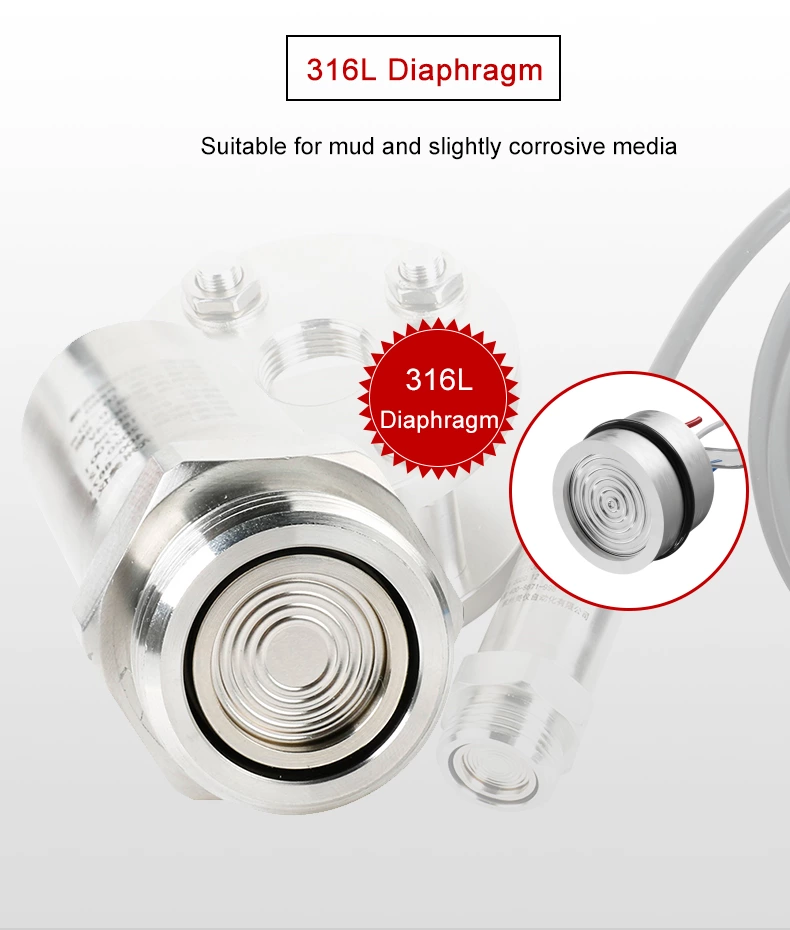

316l level sensor

why choose supmea level sensor

  • Size

Submersible level meter size
