Advantages Compact shape, accurate measurement. According to fluid mechanics, the use of cylindrical arc shape, the effective media to the impact of the probe down to reduce the impact of probe shakin
Range: 0 ~ 100m
Resolution: 0.5% F.S
Output signal: 4~20mA; 0~10V; 0~5V
Power supply: 24VDC; 12VDC
Tel.: +86 15868103947 (WhatApp)
Email : info@supmea.com
Compact shape, accurate measurement. According to fluid mechanics, the use of cylindrical arc shape, the effective media to the impact of the probe down to reduce the impact of probe shaking on the measurement stability
Multiple waterproof and dustproof.
With display function, support on-site liquid level data monitoring without supporting liquid level detector.

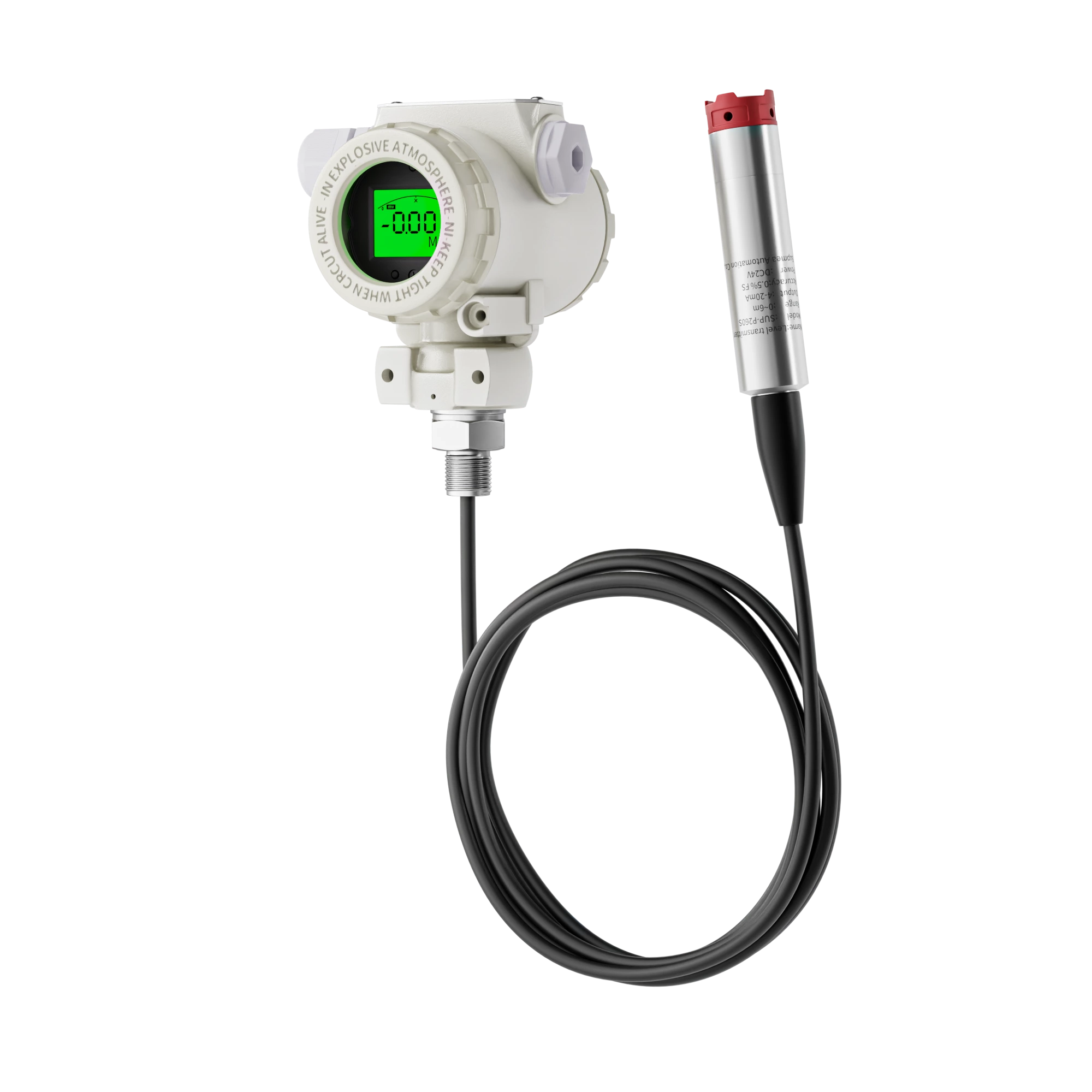

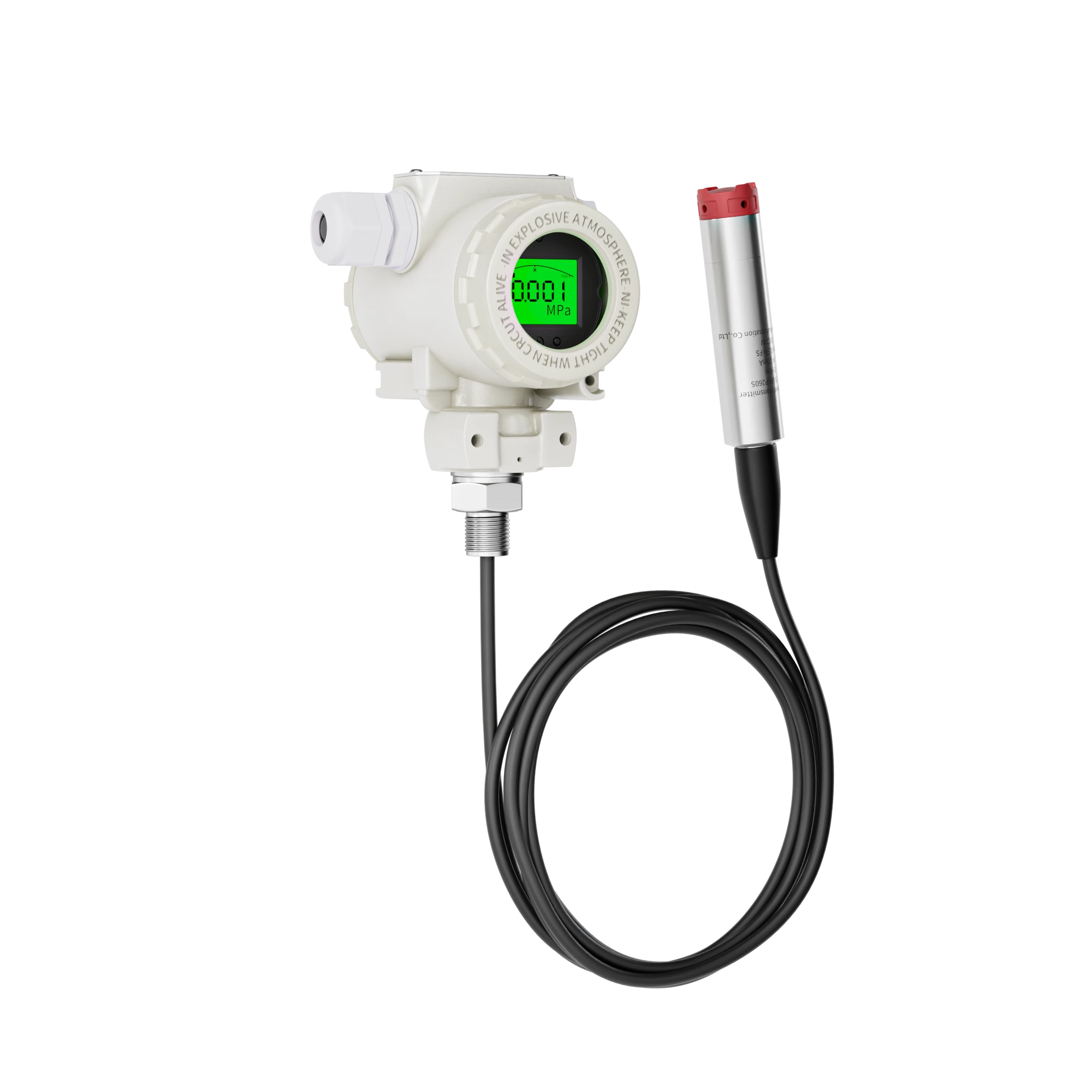

| Product | Level transmitter |
| Model | SUP-WSP506 |
| Measure range | 0 ~ 1m; 0 ~ 3m; 0 ~ 5m; 0 ~ 10m （Max 100m） |
| Indication resolution | 0.5% |
| Ambient temperature | -10 ~ 85 ℃ |
| Output signal | 4-20mA |
| Pressure overload | 150%FS |
| Power supply | 24VDC; 12VDC; Custom (9-32V) |
| Medium temperature | -40 ℃ ~ 60 ℃ |
| Overall material | Core: 316L; Shell: 304 material |
