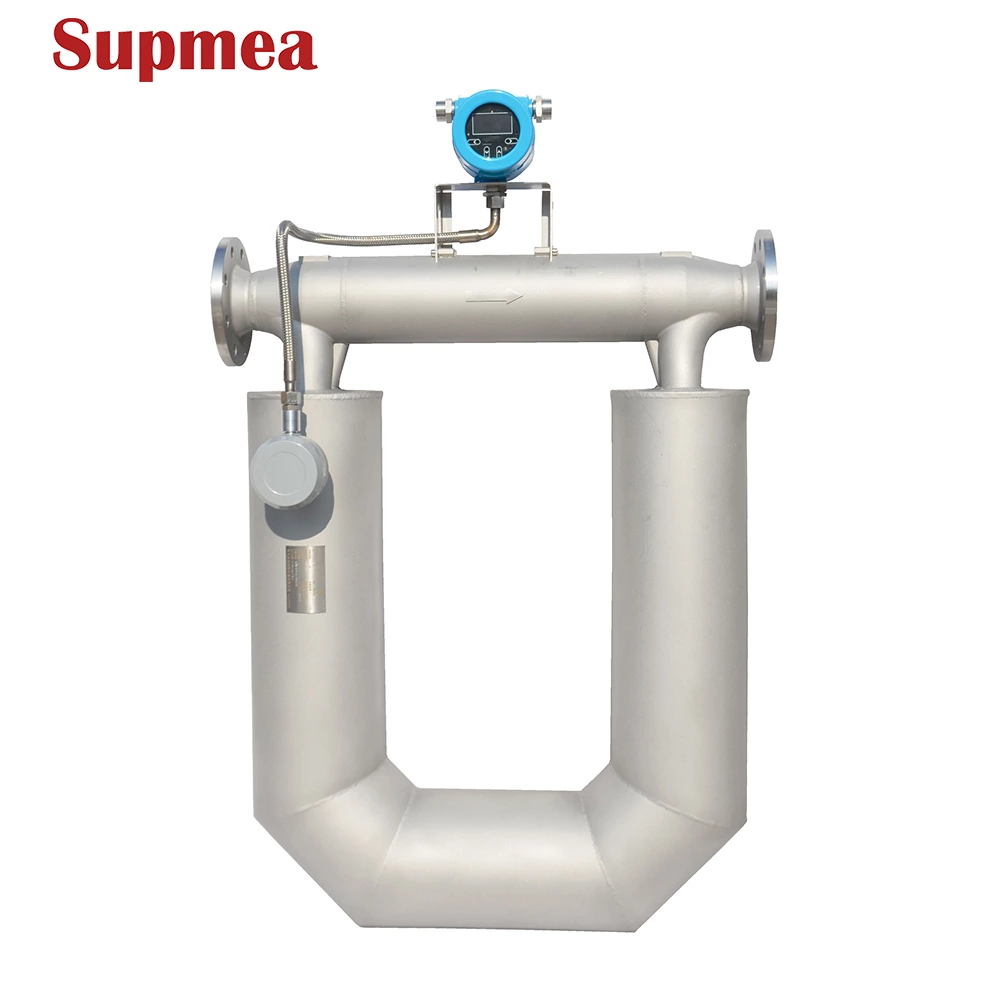

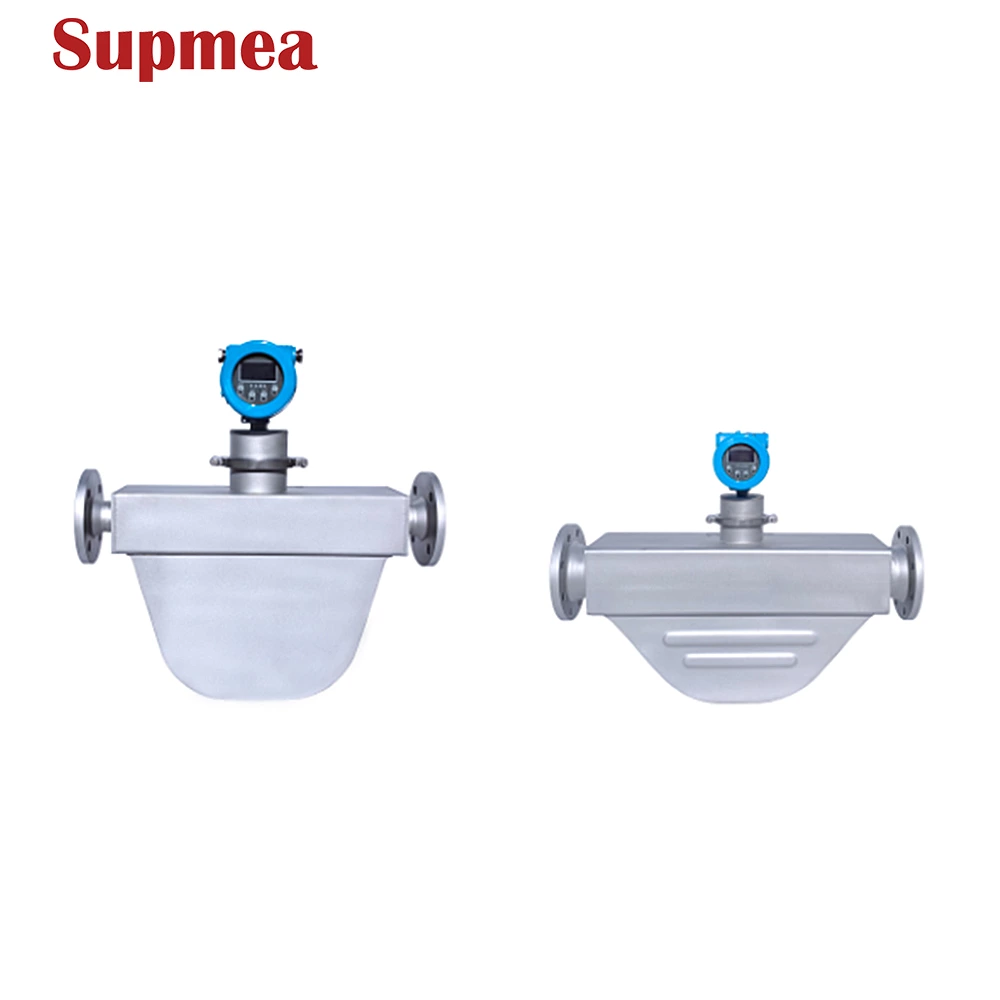

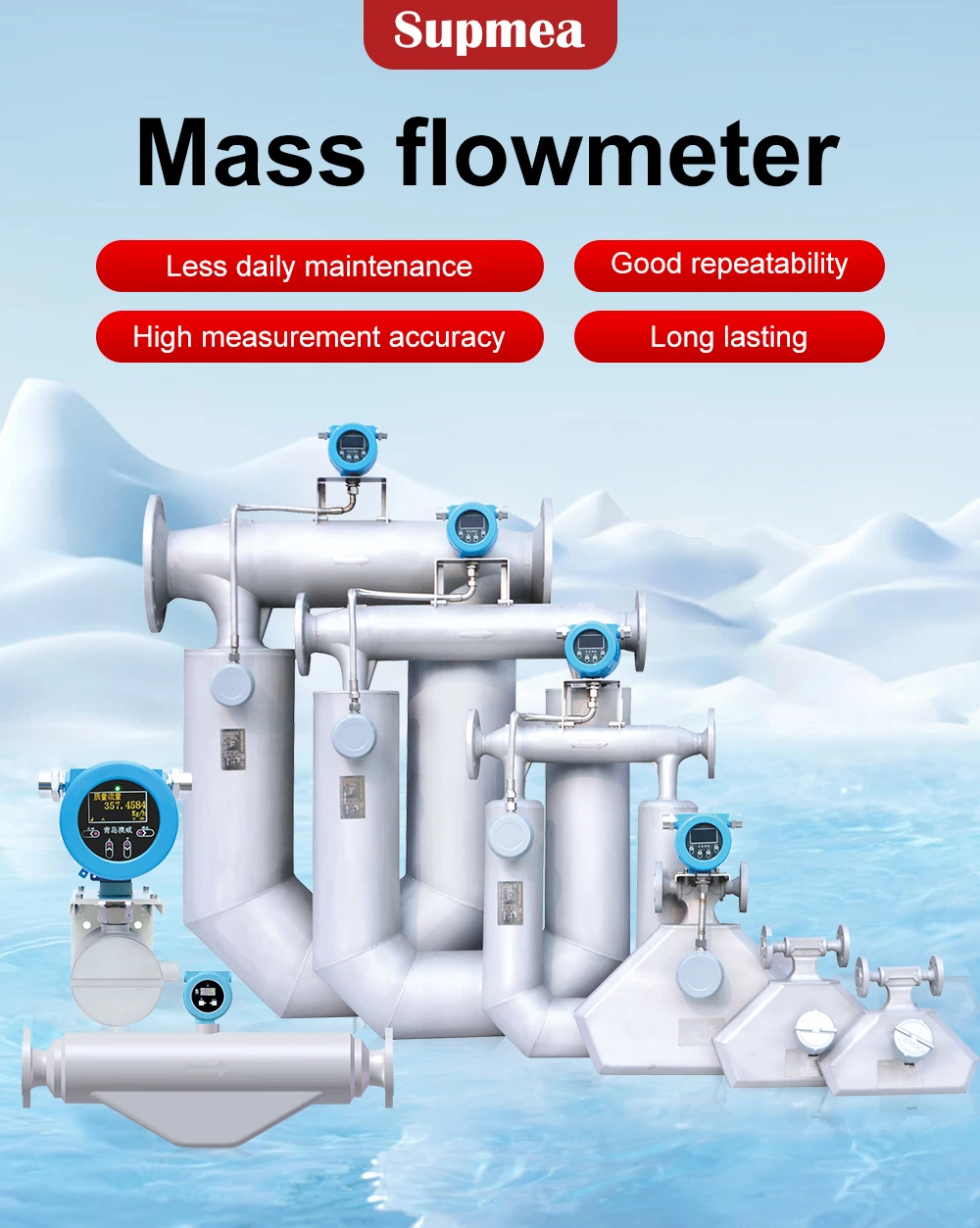

Coriolis mass flowmeter

Coriolis Mass Flow Meter is a new type of advanced flow measurement instrument and has been rapidly developed in the world. It has been widely used for process detection and custody transfer measurement in many industries such as petroleum, petrochemical, chemical, pharmacy, marine, pharmaceutical, municipal, paper, food and energy and so on. It has been highly valued by the flow research community and welcomed by users at home and abroad.

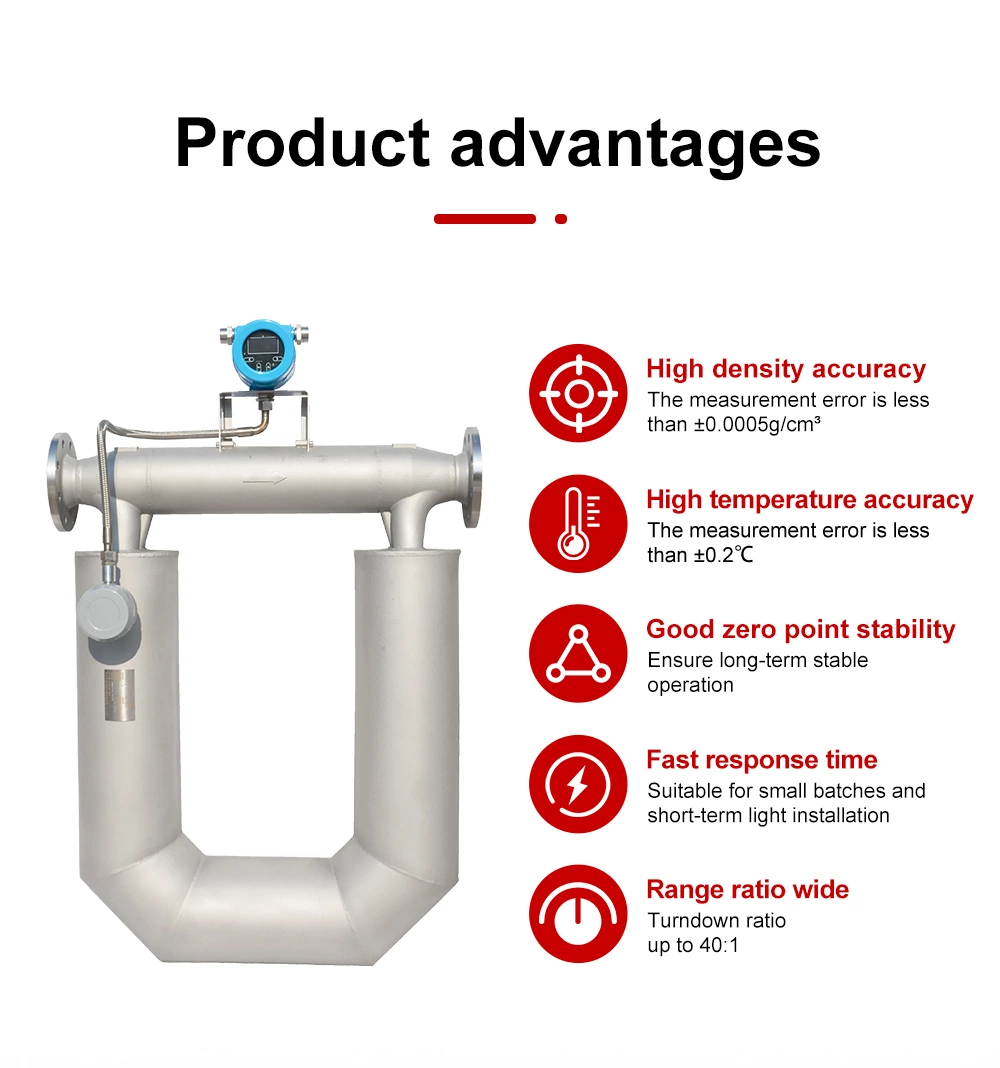

Characteristics

MODBUS RTU Communication Protocol

Convenient Human-Machine Interface

Temperature and Pressure Compensation

Directly Measurable

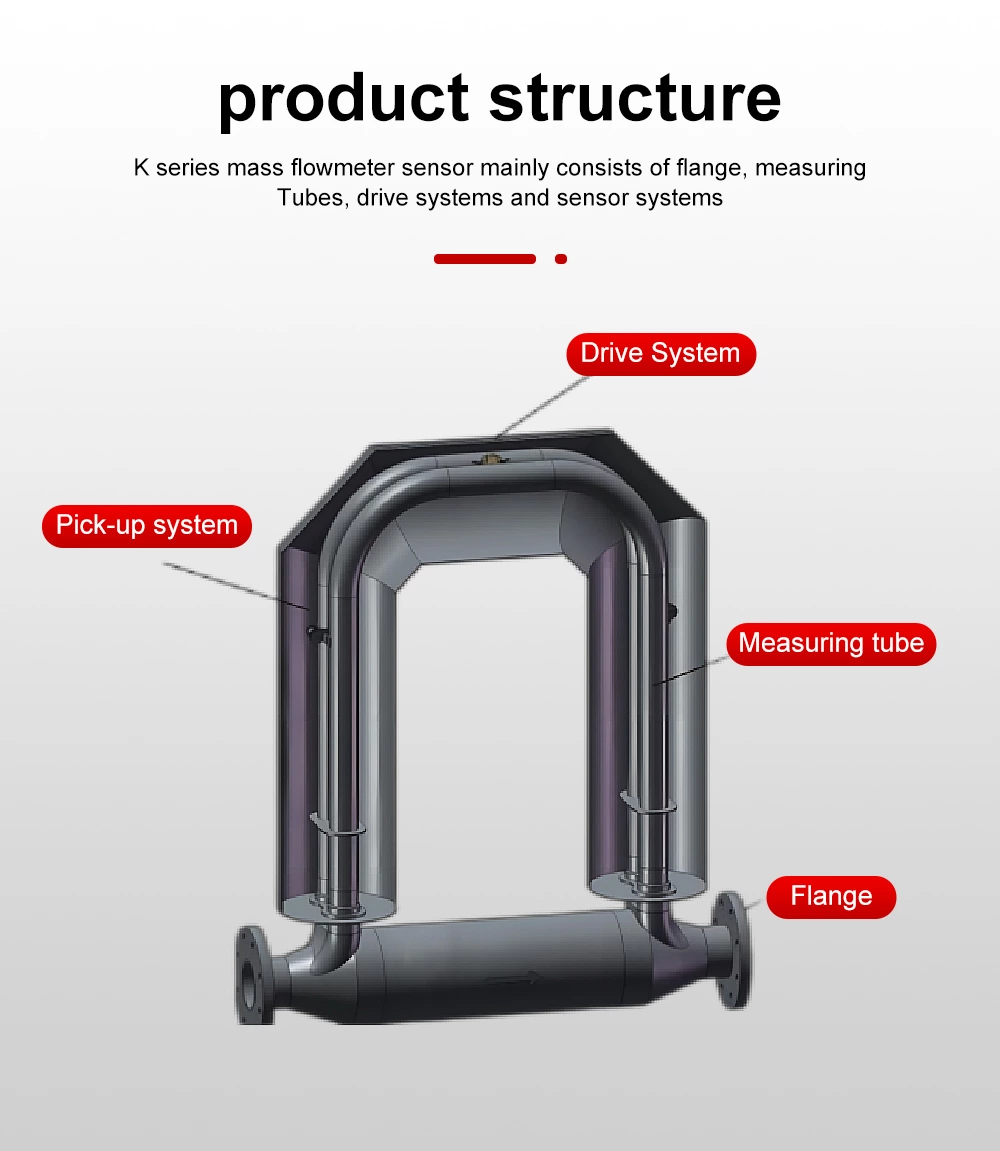

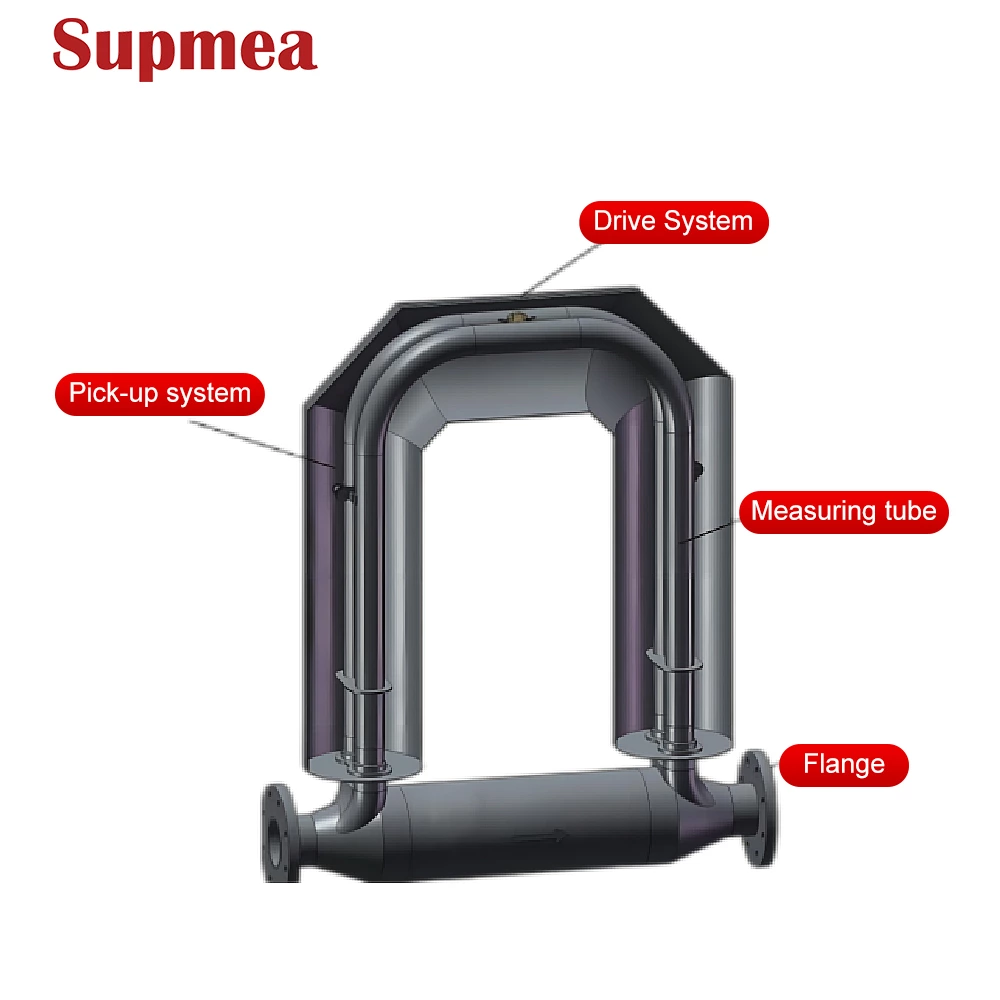

Small Amplitude of the Measuring Tube

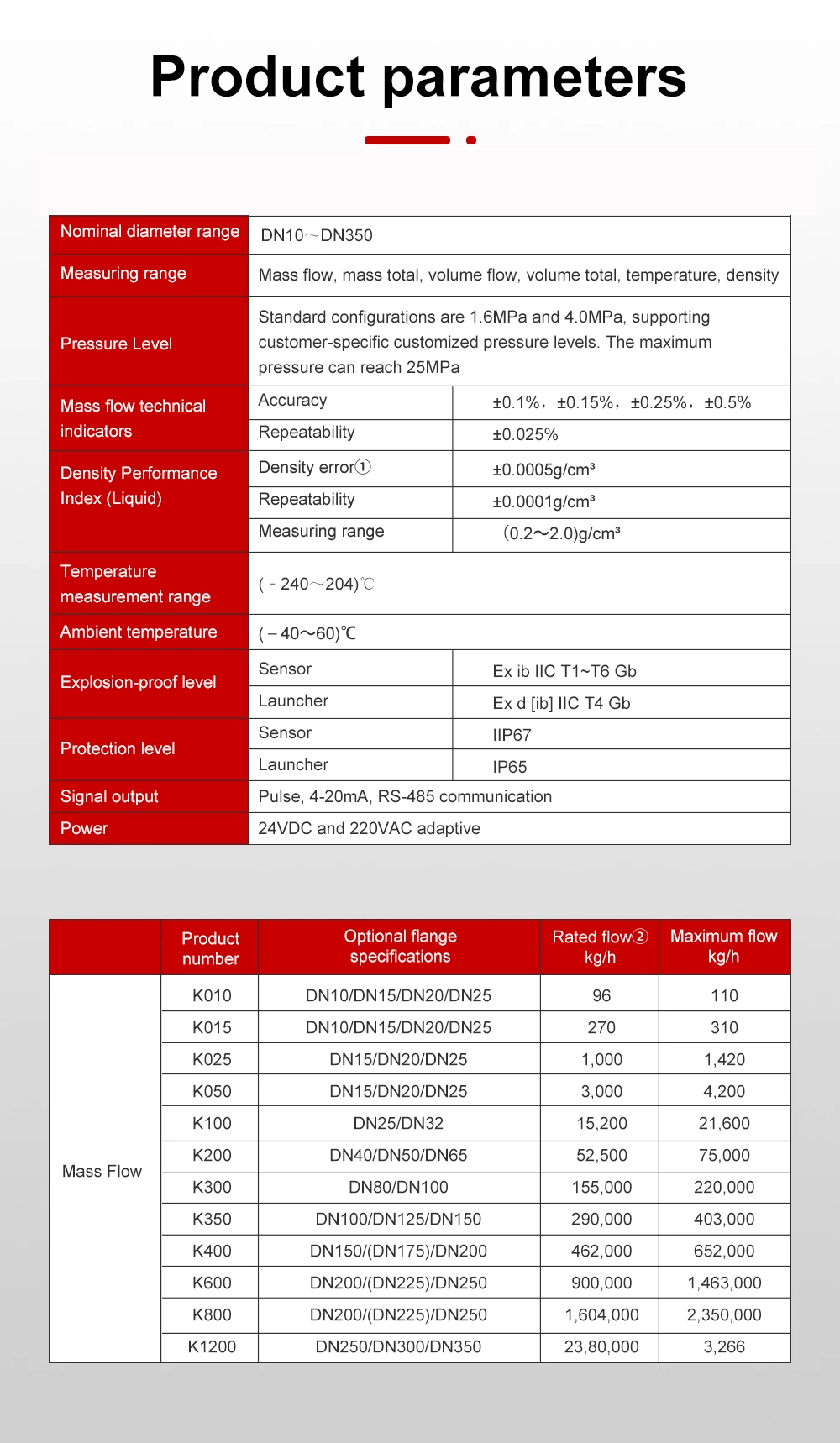

  • Specification

 Diameter   DN10~DN350
 Medium  Mass flow, volume flow, temperature, density
 Working pressure   ≤4.0 MPa
 Accuracy  ±0.1%, ±0.15%, ±0.25%, ±0.5%
 Working Temperature  -40~+60℃
 Working pressure  ≤2.5 MPa
 Power supply  220VAC  ;   24VDC
 Signal output  Pulse, 4~20mA, RS485 communication
 Ingress protection  Sensor: IP67, Launcher: IP65
 Density error  ±0.0005g/cm3
 Repeatability  ±0.0001g/cm3
 Measuring range  (0.2~2.0)g/cm3








  • Introduction

Coriolis mass flowmeter

Coriolis mass flowmeter

Coriolis mass flowmeter

Coriolis mass flowmeter

Coriolis mass flowmeter

Coriolis mass flowmeter

Coriolis mass flowmeter

Coriolis mass flowmeter
